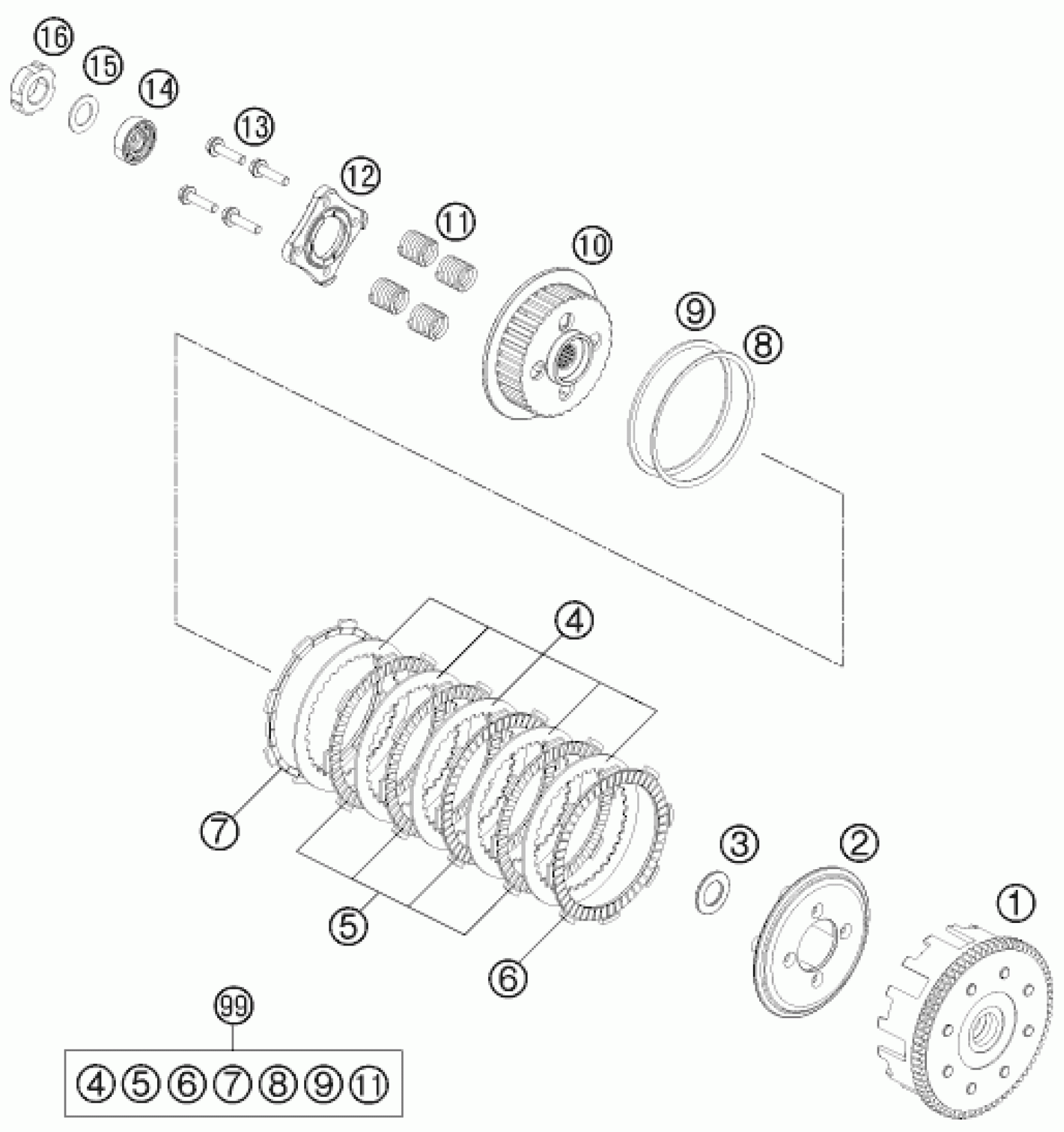

KTM 200 DUKE GREY 2012 CLUTCH Diagram

#

Description

Price

1

OUTER CLUTCH HUB CPL.

90632001044

Unavailable

2

PRESSURE CAP

90132003000

$12.99

3

STOP DISK

90132020000

$1.49

4

INTERMEDI. DISC

90132010000

$4.11

5

LINING DISK

90132011000

$13.55

6

LINING DISK INSIDE

90132111000

$13.55

7

LINING DISC TURNED OFF

90132211000

$12.80

8

BELLEVILLE SPRING

90132034000

$5.88

9

SUPPORT RING

90132035000

$4.11

10

INNER CLUTCH HUB

90632002000

$20.75

11

CLUTCH SPRING

90632005000

$3.08

12

PRESSURE PLATE

90132006000

$4.11

13

COLLAR SCREW 6X25

90132001001

$1.49

14

CLUTCH LIFTER BEARING

90132095000

$11.40

15

BELLEVILLE SPRING

90632038000

$1.49

16

CLUTCH NUT

90132019000

$2.05

99

CLUTCH KIT 200 DUKE 12-15

90632011010

Unavailable
