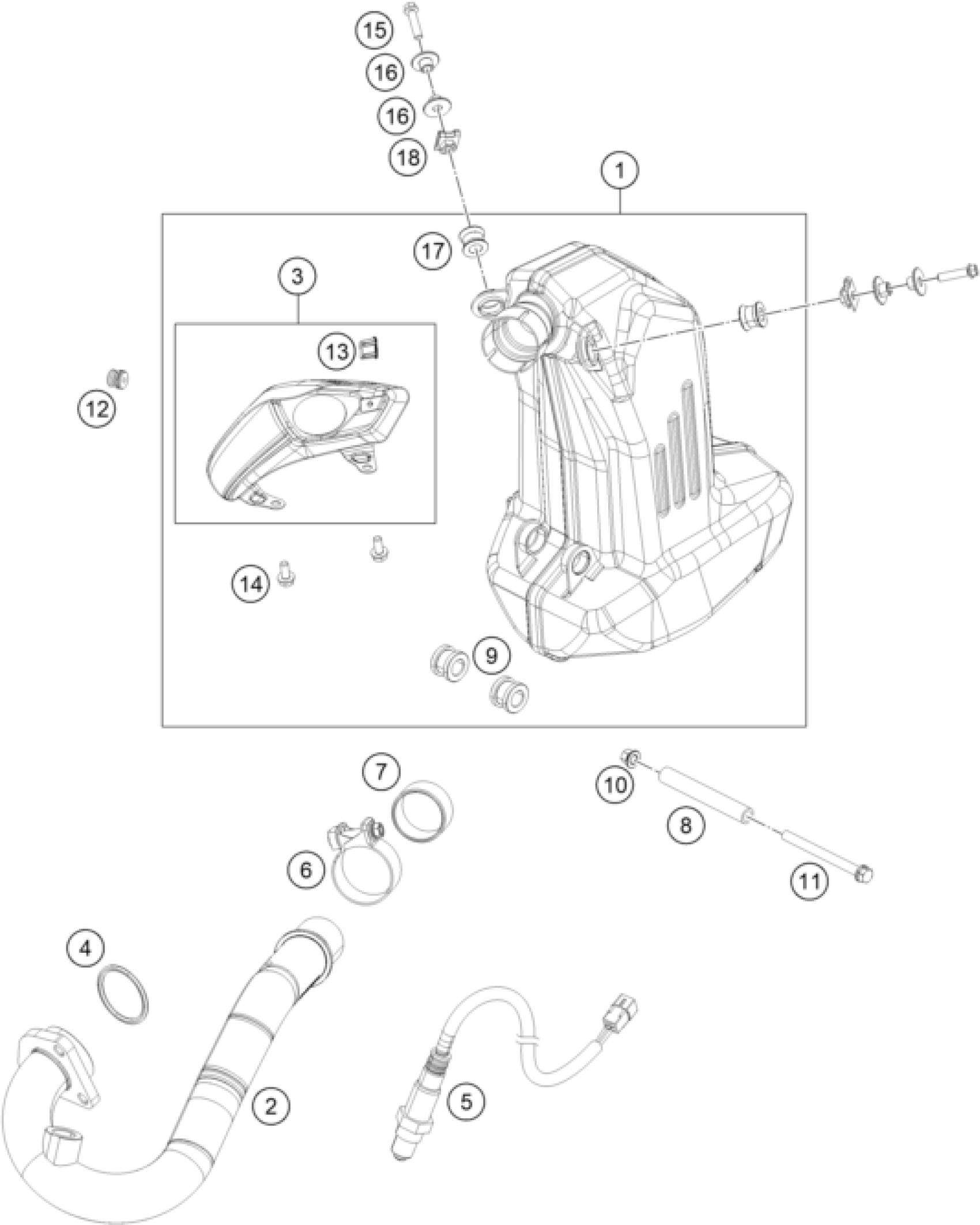

KTM 200 Duke, black w/o ABS-CKD <2019> EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer cpl.

90605883144

Unavailable

2

Assembly pipe a

90605007100

Unavailable

3

HEAT SHIELD CPL.

90105090033

Unavailable

4

exhaust flange gasket

90105004000

Unavailable

5

oxygen sensor

90141090000

Unavailable

6

Header clamp

90105052000

Unavailable

7

SEAL RING EXHAUST PIPE A

90105005000

Unavailable

8

muffler mounting tube

90105084000

Unavailable

9

damper, bottom

90105068100

Unavailable

10

FLANGED NUT M8 H7,5 WS12

90136038000

Unavailable

11

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

12

DAMPER HEAT SHIELD

90205085000

Unavailable

13

RUBBER CAP

90105085000

Unavailable

14

HH COLLAR SCREW M6X14 SW10

J025060146

Unavailable

15

HH COLLAR SCREW M6X25 SW10

J025060256

Unavailable

16

muffler mounting spacer bushin

90205086001

Unavailable

17

damper, bottom

90205068000

Unavailable

18

clip nut

90103097000

Unavailable
