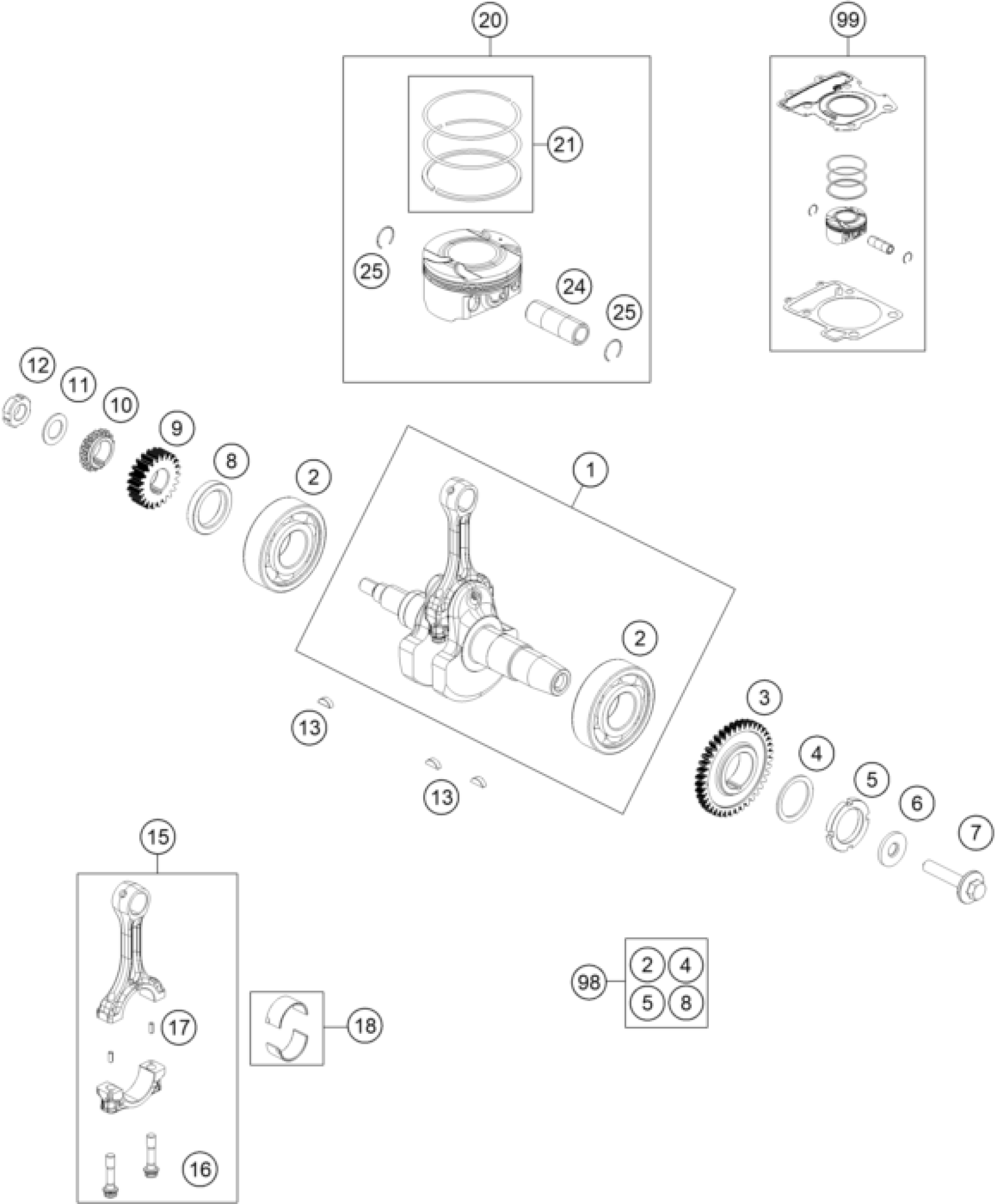

KTM 200 DUKE, black, w/o ABS - B.D. 2022 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL.

90630018000

$303.02

2

BALL BEARING 63/2/8 HN3CNP

90130082000

$22.99

3

DRIVE WHEEL CRANKSH. F. AGW

90130018006

$38.79

4

CONICAL WASHER 28,35X38X1,75

90230069000

$2.05

5

NUT FOR DRIVE WHEEL AGW

90130018008

$6.35

6

WASHER 10,3X29X3,2

J021100003

$2.05

7

FLANGED BOLT M10X1,25X55

J025100509S

$3.08

8

SPACER SHIM

90130018003

$4.11

9

PRIMARY GEAR 22T.

90132024000

$28.23

10

TIMING GEAR 17 T.

90136014017

$10.37

11

WASHER PRIMARY DRIVE GEAR

90130029050

$1.49

12

NUT SPROCKET DRIVE LOCK M14

90132025000

$2.05

13

KEY WOODRUFF

J950001300400

$1.49

15

CONROD CPL.

90630015000

$71.33

16

CONROD BOLT

90630015001

$3.08

17

PARALLEL PIN

90630015002

$2.05

18

CONROD BEARING SHELL

90630015010

$9.90

18

CONROD BEARING SHELL (GREEN)

90630015011

Unavailable

18

CONROD BEARING SHELL (BLUE)

90630015012

Unavailable

20

PISTON CPL.

90630007000

$66.28

21

PISTON RINGS CPL.

90630030010

$21.03

24

PISTON BOLT

90630033000

$6.82

25

CIRCLIP

90630074000

$1.49

98

CRANKSHAFT REP. KIT DUKE

00050002314

Unavailable

99

PISTON KIT 200 DUKE 12-13

00050000215

Unavailable
