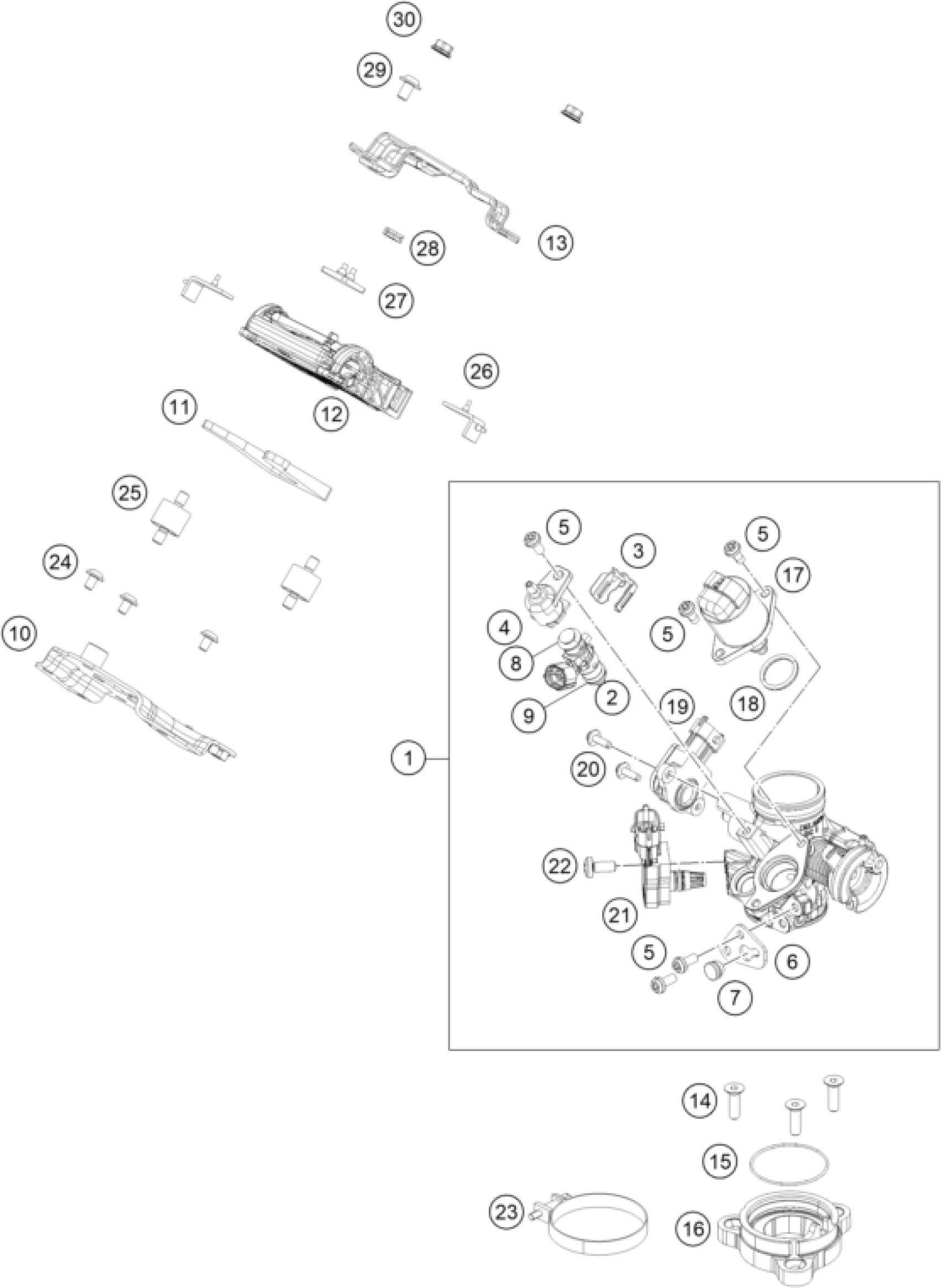

KTM 200 DUKE, black, w/o ABS - B.D. 2021 THROTTLE BODY Diagram

#

Description
Price

1

body throttle assembly

94141001000

Unavailable

2

FUEL INJECTOR

90141023000

$109.29

3

INJECTOR CLIP

90141001001

$3.08

4

CAP INJECTOR

95707024000

Unavailable

5

SPECIAL SCREW M5X12

90141023005

$1.49

6

CABLE SUPPORT

90141023002

$3.08

7

GROMMET

90141023003

$1.49

8

O-ring

55641023020

$10.56

9

O-ring

55641023010

$7.66

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

O-RING CONN. FL. CYL.-THR.BODY

90141002006

$2.05

16

CONN. FLANGE CYLINDER-THR.BODY

90641002300

$22.81

17

IDLE ADJUSTER

90641072000

$80.31

18

O-RING

90141072001

$3.08

19

Throttle position sensor

90641002000

Unavailable

20

SPECIAL SCREW M4X13

90141070001

$1.49

21

TMAP-SENSOR

90141071000

$79.19

22

SPECIAL SCREW M6X14

90141071001

$5.41

23

CLAMP

90641002010

$4.11

10

bracket ecu bottom

94041029001

Unavailable

11

Rubber cowl pad

93041030100

$2.05

12

Control unit

93041031000

Unavailable

13

Bracket ecu upper

94041029002

Unavailable

24

CHEESE-HEAD SCREW M5X8

J031050083

Unavailable

25

Bump rubber ECU support

93011038000

$4.11

26

rubber band, ECU

93841036000

$22.99

27

rubber band, ECU, top

93841032000

$22.99

28

DAMPER ECU

93541034000

$11.49

29

Hex collar screw M6x10

J000140601000

Unavailable

30

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05
