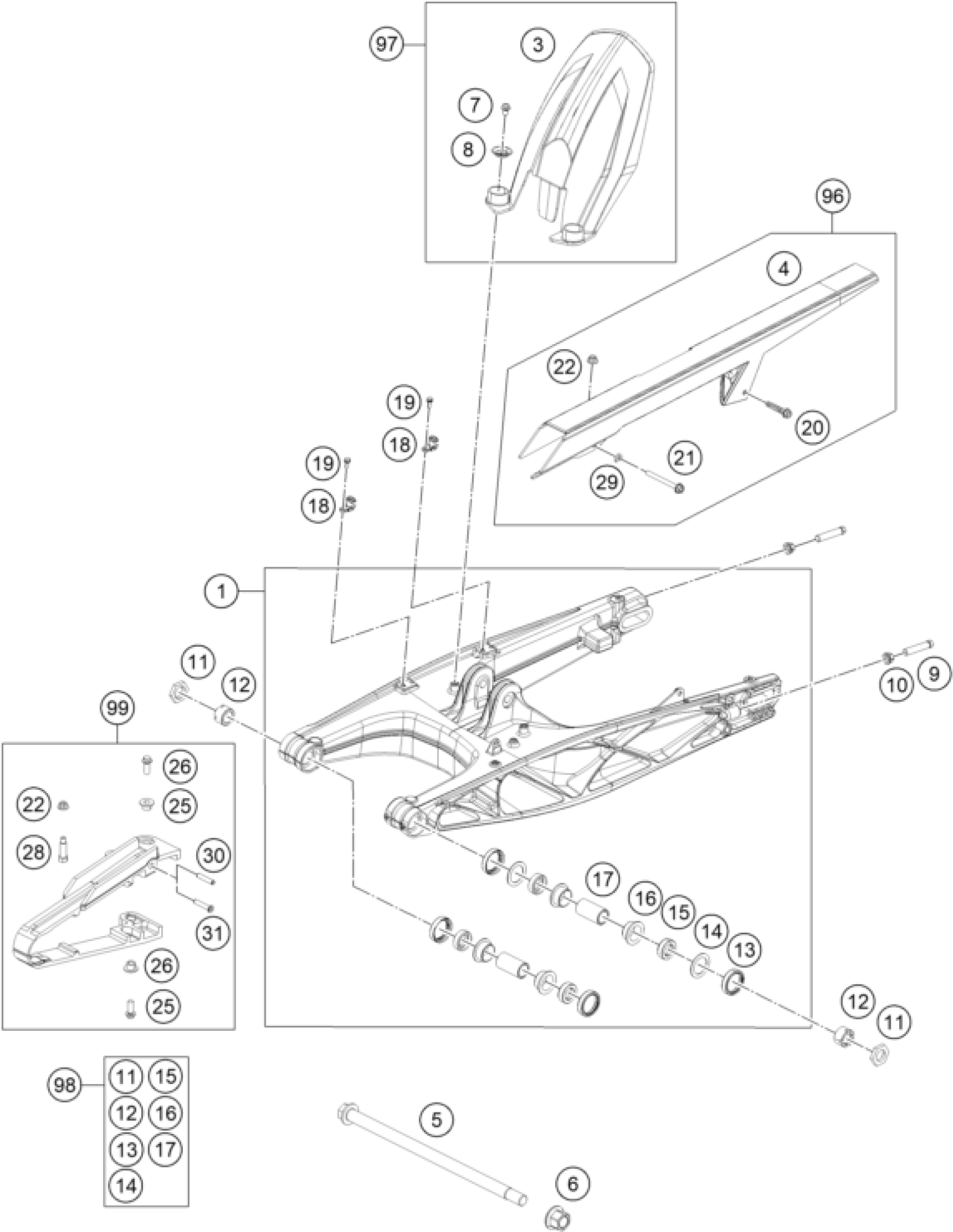

KTM 200 Duke, black, w/o ABS - B.D. 2020 SWING ARM Diagram

#

Description

Price

1

Swing Arm Sub Assy Duke 390 MY

28104030044BA

$437.20

3

SPLASH PROTECTOR

90104050000

$12.05

4

CHAIN GUARD CPL.

90104060000

$15.89

5

Shaft swing arm L=299mm

90104037000

$17.76

6

FLANGED NUT M14X1.5

90104038000

$3.08

7

HH COLLAR SCREW M6X8 SW8

J025060083

$1.49

8

BUCKET

90104067000

$3.08

9

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

10

flanged hex nut M10x1.25 WS13

90104010002

$2.05

11

hex thrust washer

90104042000

$3.64

12

swingarm adjusting ring

90104046000

$5.88

13

OIL SEAL RING 25X32X7

90104034001

$3.08

14

Thrust washer 22.2x31.7x1

90104036000

$1.49

15

cup for radial shaft seal

90104034000

$4.11

16

Igus plain bearing

90104031000

$5.23

17

sleeve bushing 15.1x20x38

90104032000

$6.63

18

brake hose guide

90113047000

$1.49

19

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

20

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

21

HH COLLAR SCREW M5X50 SW8

J025050503

$1.49

22

HH COLLAR NUT

90204060001

$1.49

25

HH COLLAR SCREW M6X16 SW8

J025060169

$1.49

26

chain slider bushing

90604062000

$1.49

28

screw M5x0.8x30

90104040100

$1.49

29

WASHER CHAIN SLIDING GUARD

90504067000

$1.49

30

SLEEVE CHAIN GUARD

90104070020

Unavailable

31

SLEEVE CHAIN GUARD

90904070020

Unavailable

96

CHAIN PROTECTION KIT DUKE

90104060110

Unavailable

97

SPLASH GUARD KIT 390 DUKE

90106010010

Unavailable

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT 125/200

90104066310

Unavailable
