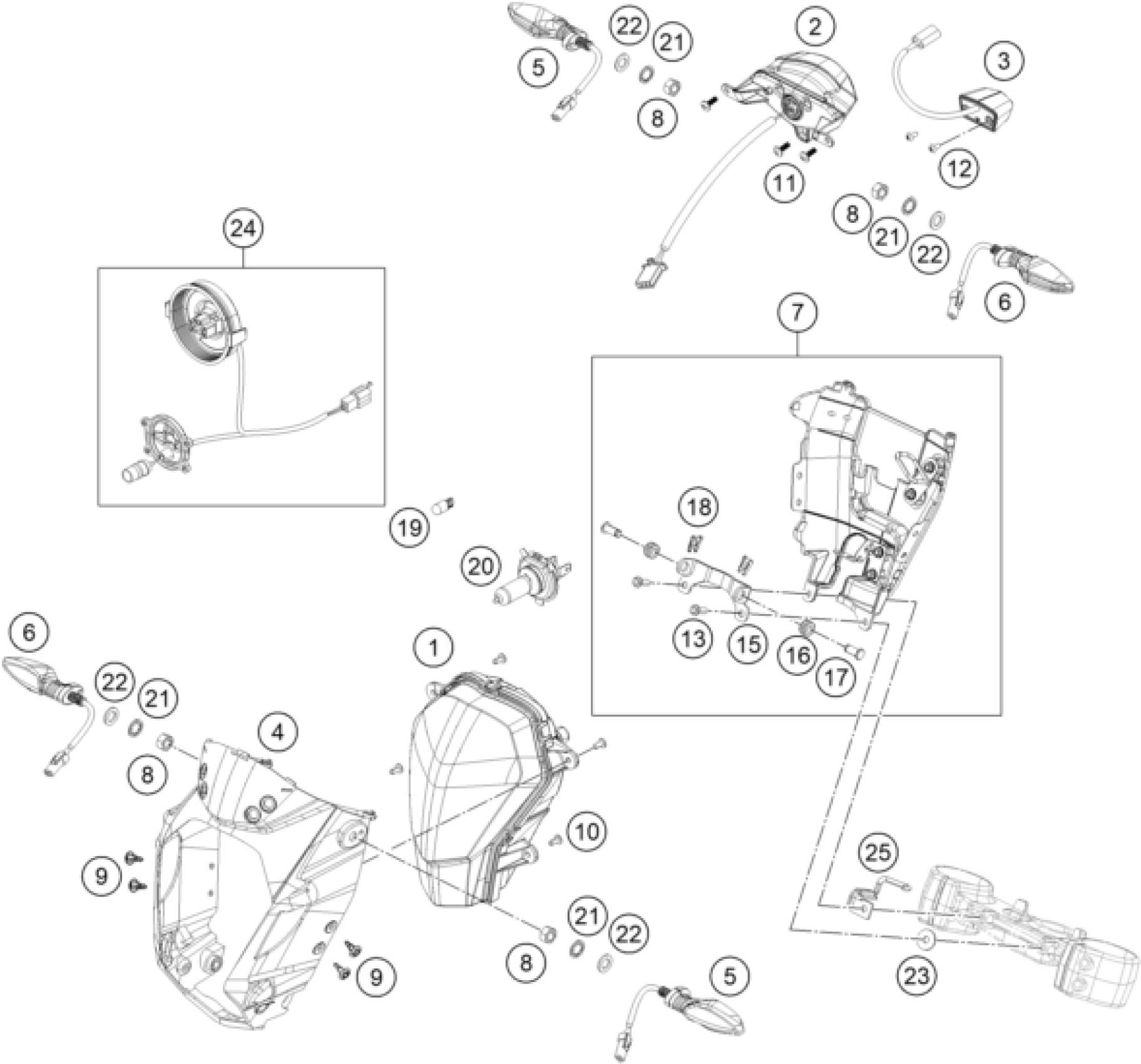

KTM 200 Duke, black, w/o ABS - B.D. 2020 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT CPL.

90114001100

Unavailable

2

REAR LIGHT LED

90114040000

Unavailable

3

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

4

MASK BRACKET

90114062000

Unavailable

5

FLASHER L/S

91214025000

Unavailable

6

FLASHER R/S

91214026000

Unavailable

7

HEAD LIGHT COVER REAR CPL.

90114064044

Unavailable

8

Hex nut, M10

J934100001

Unavailable

9

EXPANDING RIVET CPL.

76503075100

Unavailable

10

EJOT PT screw K50x12

0081050121

Unavailable

11

CHEESE-HEAD SCREW M5X15

J031050153

Unavailable

12

CROSS PAN SCREW 4X12 PH

J081040121

Unavailable

13

HH COLLAR SCREW M6X16 SW10

J025060163

Unavailable

15

HINGE JOINT HEADL.-COVER

90114064010

Unavailable

16

GROMMET MASK CARR. PIVOT BKT

90114064011

Unavailable

17

SAFETY BOLT 8X1,5

J070080150

Unavailable

18

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

Unavailable

19

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

20

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

21

Toothed washer, M10

J06797100183

Unavailable

22

Washer M10

J125100009

Unavailable

23

WASHER 6,5X2 MM

J126061252

Unavailable

24

HARNESS F. HEADLAMP

90111079000

Unavailable

25

HOOK BRACKET ABS HOSE

90103001036

Unavailable
