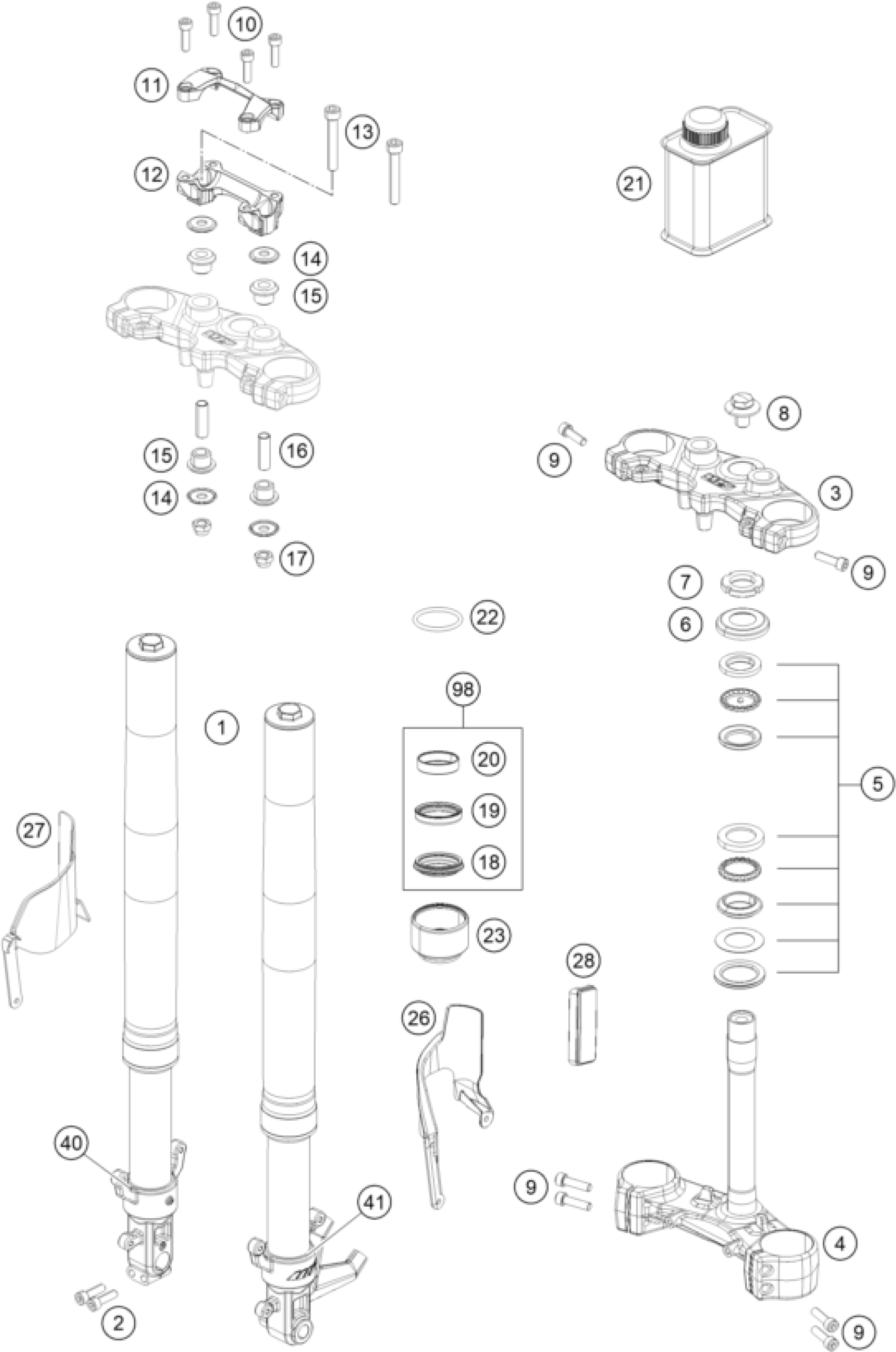

KTM 200 Duke, black, w/o ABS - B.D. 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork leg, left

93001001100

Unavailable

1

Fork leg, right

93001002100

Unavailable

2

AH SCREW M8X27

J020080273

$2.05

3

Top triple clamp black

9060103403533

Unavailable

4

Bottom triple clamp cpl. black

9060103104433

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

6

protection cap

90101086000

$3.08

7

Adjusting ring steering head

90101036100

$5.23

8

CLAMP SCREW STEERING HEAD

90101136100

Unavailable

9

AH SCREW M8X1.25X30

90501045000

$1.49

10

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

11

HANDLEBAR CLAMP

90101038000

$9.15

12

HANDLEBAR SUPPORT D=26MM

90101039000

$13.64

13

AH SCREW M10X1,25X64

J022100643

$3.08

14

WASHER 10,5X32X2

90101042000

$1.49

15

RUBBER BUSHING

90101040000

$2.05

16

SPACER TUBE

90101041000

$4.11

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

22

O-ring 43x2 NBR70 siliconized

40140024

$4.11

23

FORK FRONT DUST COVER

90201025000

$4.11

26

Protector fork LH

93601092000

$8.41

27

Protector fork RH

93601093000

$7.94

28

side reflector, front

90212582001

$5.23

40

Axle clamp and fork pipe right

93501007000

$237.95

41

Axle clamp and fork pipe left

93501006000

$291.24

98

REP. KIT FORK KPL.

90101000010

Unavailable
