FRAME

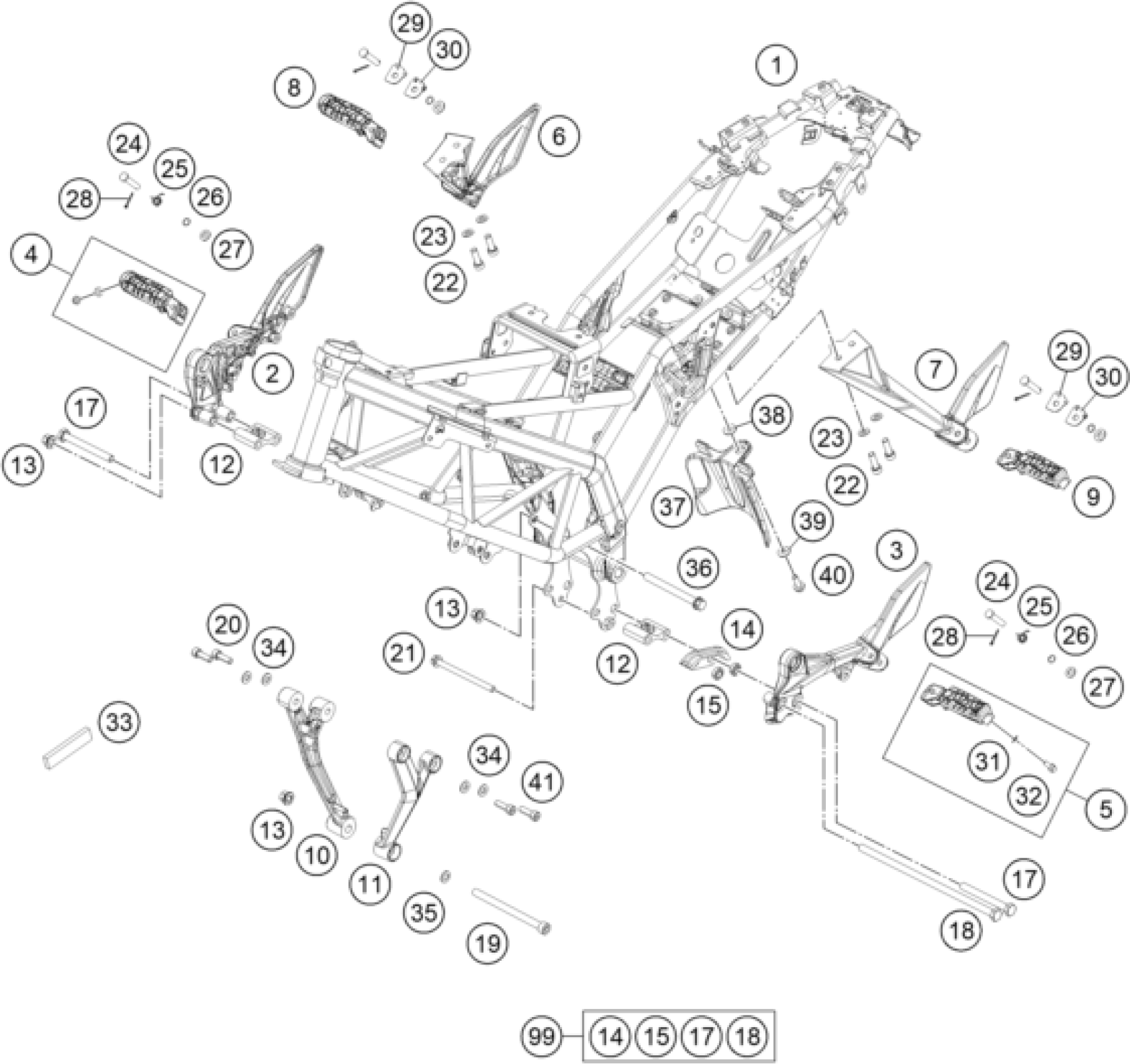

KTM 200 Duke, black, w/o ABS - B.D. 2020 FRAME Diagram
#
1
Frame ebony black - Duke 200 M
9010300120030A
Unavailable
2
FOOTR. BRACKET FRONT R/S
90103039000
$61.89
3
FOOTREST BRACKET FRONT L/S
90103038000
$62.26
4
Front footpeg cmpl. right
93003141033
$16.45
5
Front footpeg cmpl. left
93003140033
$16.45
6
FOOTREST BRACKET REAR R/S
90103049000
$48.70
7
FOOTREST BRACKET REAR L/S
90103048000
$48.33
8
Rear footpeg cmpl. right
93003151033
$21.87
9
Rear footpeg cmpl. left
93003150033
$21.87
10
engine hanger right
93003006000BM
Unavailable
11
engine hanger Left
93003005000BM
Unavailable
12
footrest support holder, front
90103038001
$9.90
13
FLANGED NUT M10X1.25 WS14
90103038002
$2.05
14
chainguide
90104070000
$10.84
15
spacer chainguide
90104066010
$3.08
17
HH COLLAR SCREW M10X1,25X92
J025100926
$3.08
18
HH COLLAR SCREW M10X1,25X265
J025102656
$6.35
19
SOCKET HEAD BOLT M10X1,25X113
90103013100
Unavailable
20
Hexagon screw M8X25
J912080251
$2.05
21
HH COLLAR SCREW M8X105 SW12
J027081053
$2.05
22
AH SCREW M8X27
J020080273
$2.05
23
WASHER 8,2X16X1,5
J125080003
$1.49
24
BOLT FOR FOOTREST
90103044000
$4.11
25
Footpeg spring
93003042000
$1.49
26
O-RING 9X1,5
J770009015
$1.49
27
WASHER M8
J125080004
$1.49
28
pin cotter-dia. 2.5xl 18
J094020186
$1.49
29
footrest lock plate 1
90103052000
$3.08
30
footrest lock plate 2
90103053000
$3.08
31
PLAIN WASHER 6,4X12X1
90103040001
$1.49
32
CAP SCREW M6X10 SS
J029060103S
$2.05
33
ANTI-ABRASIVE TAPE
90103000001
Unavailable
34
Washer M8
J125080006
$3.08
35
WASHER M10
J125100005
$1.49
36
HH COLLAR SCREW M10X110 WS14
J025101103
$3.08
37
MUD GUARD
90208073000
Unavailable
38
COLLAR UNDER TRAY
90508016060
$1.49
39
WASHER
90108015020
$1.49
40
HH COLLAR SCREW M6X18 SW10
J025060183
$1.49
41
Bolt socket-M8X1.25Xl22Xcl8.8X
J912080226
$1.49
99
CHAIN GUIDE KIT 125 DUKE
90104070010
Unavailable
