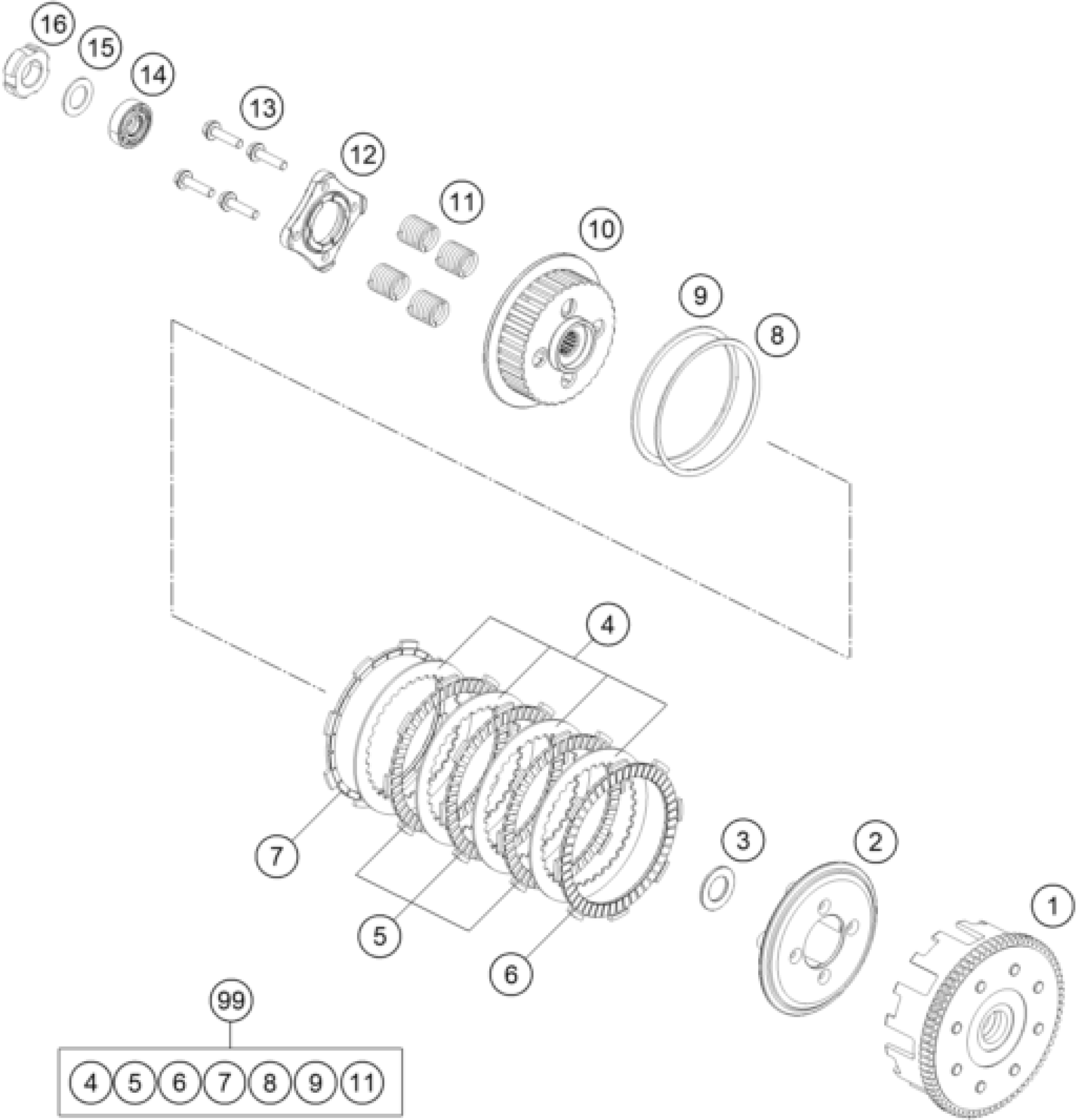

KTM 200 Duke, black w/o ABS 17 <2017> CLUTCH Diagram

#

Description

Price

1

Outer clutch hub

90632001133

Unavailable

2

PRESSURE CAP

90132003000

Unavailable

3

STOP DISK

90132020000

Unavailable

4

INTERMEDI. DISC

90132010000

Unavailable

5

LINING DISK

90132011000

Unavailable

6

LINING DISK INSIDE

90132111000

Unavailable

7

LINING DISC TURNED OFF

90132211000

Unavailable

8

BELLEVILLE SPRING

90132034000

Unavailable

9

SUPPORT RING

90132035000

Unavailable

10

INNER CLUTCH HUB

90632002000

Unavailable

11

CLUTCH SPRING

90632005000

Unavailable

12

PRESSURE PLATE

90132006000

Unavailable

13

COLLAR SCREW 6X25

90132001001

Unavailable

14

CLUTCH LIFTER BEARING

90132095000

Unavailable

15

BELLEVILLE SPRING

90632038000

Unavailable

16

CLUTCH NUT

90132019000

Unavailable

99

CLUTCH KIT 200 DUKE 12-15

90632011010

Unavailable
