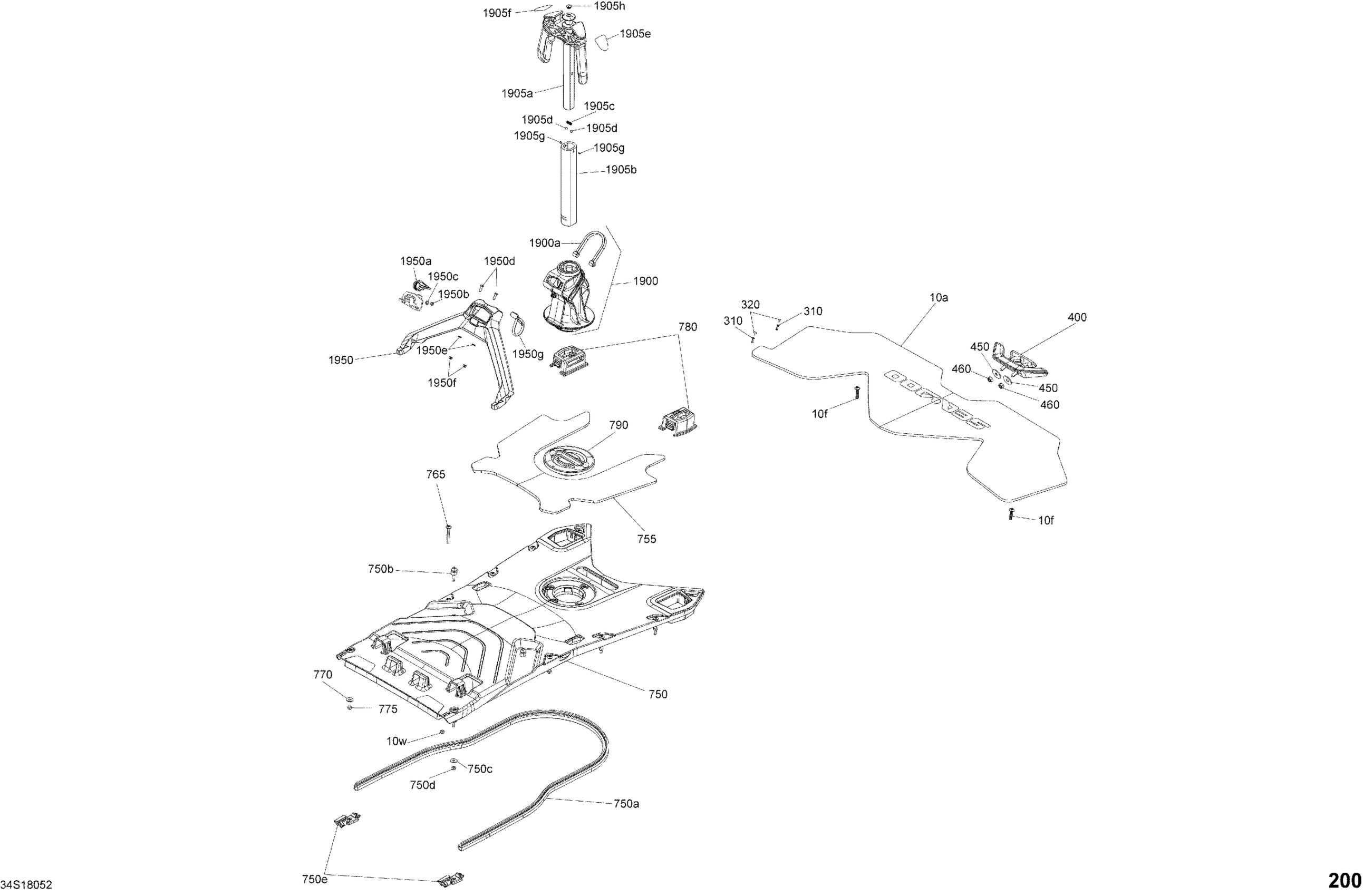

Sea-doo WAKE PRO 230, 2018 Body Rear Part - Wake Package Pro Diagram

ANTI SLIP MAT_DECK - Call your local BRP dealership

291004825

Unavailable

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

Cleat

291004597

$24.99

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hose Protector

291004941

$4.69

Access Cover Ass'y | Includes 750 to 750f

291005189

$234.99

Was 293200062 Seal

219704366

$76.49

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

$25.99

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Seal

291004717

$12.99

Black, Mat Cover

291004668

$41.49

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Cargo Base

291005157

Unavailable

Access Cap Ass'y

291004481

$10.99

Pylon Base Assembly | Includes 1900 to 1900b

291004994

$284.99

Replacing Kit for Pylon Strap

295100740

$26.49

Molded Handle

291004766

$195.99

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

Ball Spring

269501651

$11.99

Ball 1/4"

293350062

$2.69

Warning Decal Ski Post

219905699

$11.99

Warning Decal Ski Post

219905700

$11.99

Type "U" Metallic Drive Screw

293150167

$2.29

Bumper Plug, Black

291001519

$5.49

Wishbone Support Ass'y | Includes 1950 to 1950g

291004995

$85.99

RH Lever

708200374

$4.02

Elastic Stop Nut 5 mm

232551200

$1.47

Flat Washer | XT

211200035

$0.55

Socket Head Screw M5 X 16

205451660

$1.15

Flat Washer M5, Stainless

234051600

$0.77

Hex. Elastic Nut M5 | X

232551600

$1.15

Strap

273000261

$16.49
