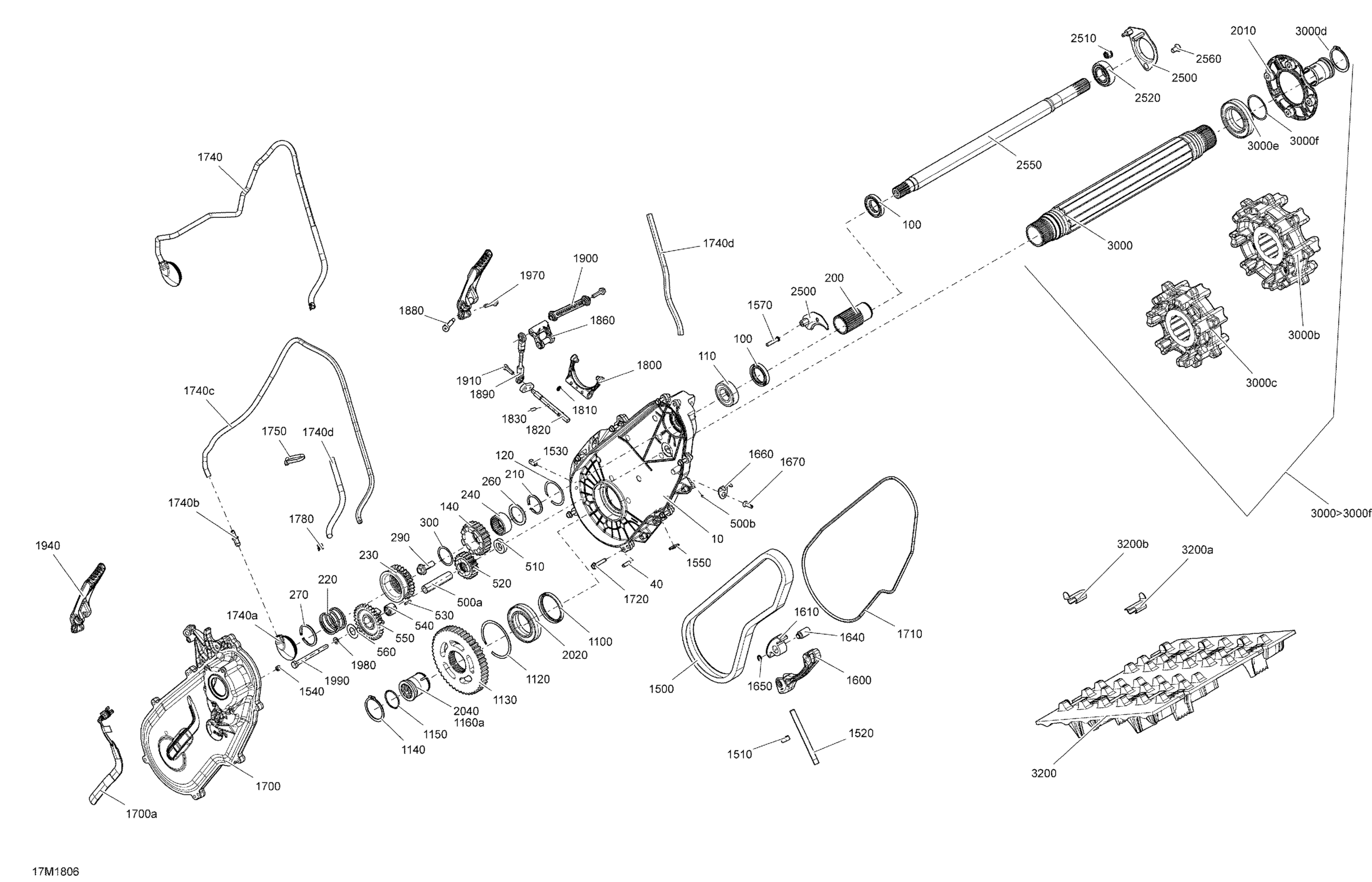

Ski-Doo 2- TUNDRA 600 ACE, 2018 05- Drive Tundra - 600 ACE LT Diagram

Chaincase

504153184

$349.99

Plate | Not Shown

518325816

$79.99

Flange Elastic Nut M6

233261434

$4.44

Dowel Pin

250400048

$2.11

Oil Seal

293200168

$14.49

Ball Bearing

293350115

$12.11

Circlip

504152576

$9.99

Sprocket, 21 Teeth

504152927

$129.99

Coupling

504152979

$73.99

Circlip

293370054

$8.11

Spring Release

504153179

$11.49

Slinding Gear, 27 Teeth

504152960

$103.99

Needle Bearing

293350063

$23.99

Washer

504152689

$7.65

Circlip

293370055

$8.11

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Washer

504152862

$10.33

Reverse Shaft

504083100

$46.99

Rolled Pin M3 X 10

250400010

$1.90

Ring

504078700

$20.99

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

Needle Bearing

293350064

$23.49

Alignement Rod

570048600

$15.99

Needle Bearing

293350064

$23.49

Sprocket, 29 Teeth

504152724

$179.99

Spacer

504077300

$6.95

Oil Seal

293200159

$16.25

Ball Bearing

293350059

$30.99

Circlip

504152582

$9.99

Kit Sprocket This part replaces 504152971.

861805540

$159.99

Circlip

504152572

$6.95

O-Ring

293300122

$2.11

Magnetic Cap

504152619

$23.49

Drive Chain, 106 Links

504152630

$179.99

Hex. Nut M10 X 1.5

232006414

$1.37

Adjustment Screw

504152602

$12.49

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

Hex. Countersunk Drain Plug

250500013

$7.89

Bonded Washer

250200100

$2.11

Chaine Tensionner

504153431

$15.99

Slider Chain

504152739

$65.99

Tensioner Axle

504152841

$16.34

Circlip

504152282

$3.17

Chain Slider

504153122

$16.99

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$359.99

Rotation Sensor

504152896

$37.99

Tight Seal

293300130

$7.51

Hex. Flange Screw M6 X 30

250000934

$2.11

Cap

504152930

$28.99

Straight Fitting

293710035

$8.89

Polyurethane Hose 10000Mm Long

219704410

$56.99

Protector Tube

504153074

$14.49

Tie-Rap 180 mm

414115200

$0.11

Fork Ass'y

504153432

$37.99

O-Ring

414484400

$7.51

Welded Axle Fork

504152956

$29.99

Spring Pin M5 X 16

250400045

$4.55

Lever

504153427

$29.99

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

Ball Joint

504152951

$46.49

Double Ball Joint

504152710

$50.99

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Hex. Flange Screw M6 X 25

207562544

$1.69

Grip

504153082

$33.99

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

Hex. Flange Screw M6 X 25

207562544

$1.69

Washer

504082900

$2.64

Hex. Screw M8 X 90

207089044

$3.48

O-Ring

293300122

$2.11

Magnetic Cap

504152619

$23.49

Circlip

504152572

$6.95

Bearing Housing

504153187

$29.49

Hex. Flange Elastic Nut M8

233281414

$1.47

Ball Bearing

293350074

$38.49

Countershaft

504153000

$593.49

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

AXLE_DRIVE ASSY - Call your local BRP dealership | Includes 3000 to 3000e

504153265

Unavailable

Sprocket, 7 Teeth | With Gear Box 2.30

504153087

Unavailable

Sprocket, 7 Teeth | With Gear Box 2.30

504153088

Unavailable

Retaining Ring

504153886

$21.99

Ball Bearing

293350059

$30.99

O-Ring

293300134

$2.32

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

Track Guide | Track Width 16''

415129528

$3.29

Cleat

504152651

$9.69
