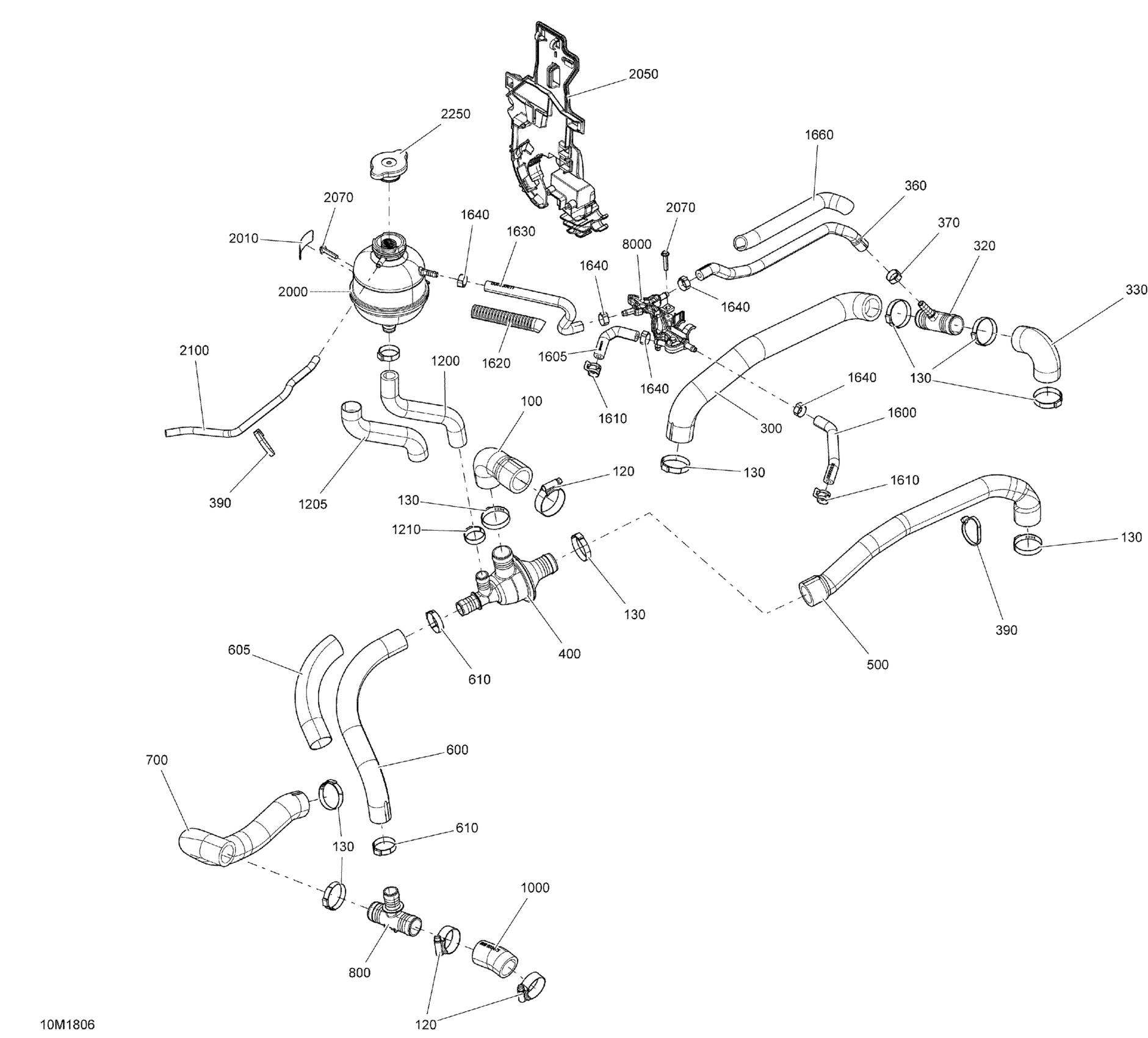

Ski-Doo TUNDRA 600 ACE, 2018 Cooling Tundra - 600 ACE Diagram

#

Description
Price

100

Engine Outlet Hose

509000932

$17.66

130

Aba Gear Clamp, 26-38 MM

509000443

$5.68

290

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

300

Hose

509000634

$23.82

310

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

320

T-Fitting

509000510

$11.52

700

Radiator Return Hose

509001062

$14.54

800

T-Fitting

509000372

$7.87

1000

Radiator Hose

509000921

$12.72

1200

Filling Hose

509001063

$13.58

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Crimp Clamp

293650099

$4.60

2000

Cooling Tank

509000875

$86.89

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2050

Front Bracket

509000694

$9.31

2060

Avex Rivet

390909200

$0.29

2100

Hose

509000775

$9.86

2250

Radiator Pressure Cap

509000180

$11.69

2500

Water Pipe

509000800

$105.35

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

3000

Radiator Hose

509000617

$13.60

3005

Radiator Hose

509000618

$13.60

3006

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

3100

Radiator Hose

509000560

$18.43

3110

Oetiker Gear Clamp

293650165

$4.32

3120

Clamp

509000735

$5.86

3130

Gear Clamp

509000931

$12.52

3300

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$225.35

3310>3310a

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

3310a

Neoprene Seal 3000Mm Long

219704371

$45.47

3325

Was 271000110 Protection Trim

219704353

$15.03

3340

Radiator Support

509000988

$173.82

3350

Radiator

509000972

$302.28

3360

Support

509000715

$10.52

3370

Support

509000772

$17.66

3375

Avex Rivet

390909100

$0.29

3380

Grommet

709000582

$4.38

3390

Bushing

293900100

$6.31

3395

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

3400

Breather Hose

509000860

$23.05

3405

Crimp Clamp, 15.3-706R

293650047

$2.64

3450

Oetiker Gear Clamp

293650025

$2.46

4800

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

5005

Hex. Flange Screw M6 X 16

207661654

$1.74

5010

Insert

293450275

$9.89

5015

Flat Washer

224061121

$0.44

5020

Grommet

709200285

$7.09

5060

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5080

Hex. Flange Screw M6 X 25

207662544

$0.53
