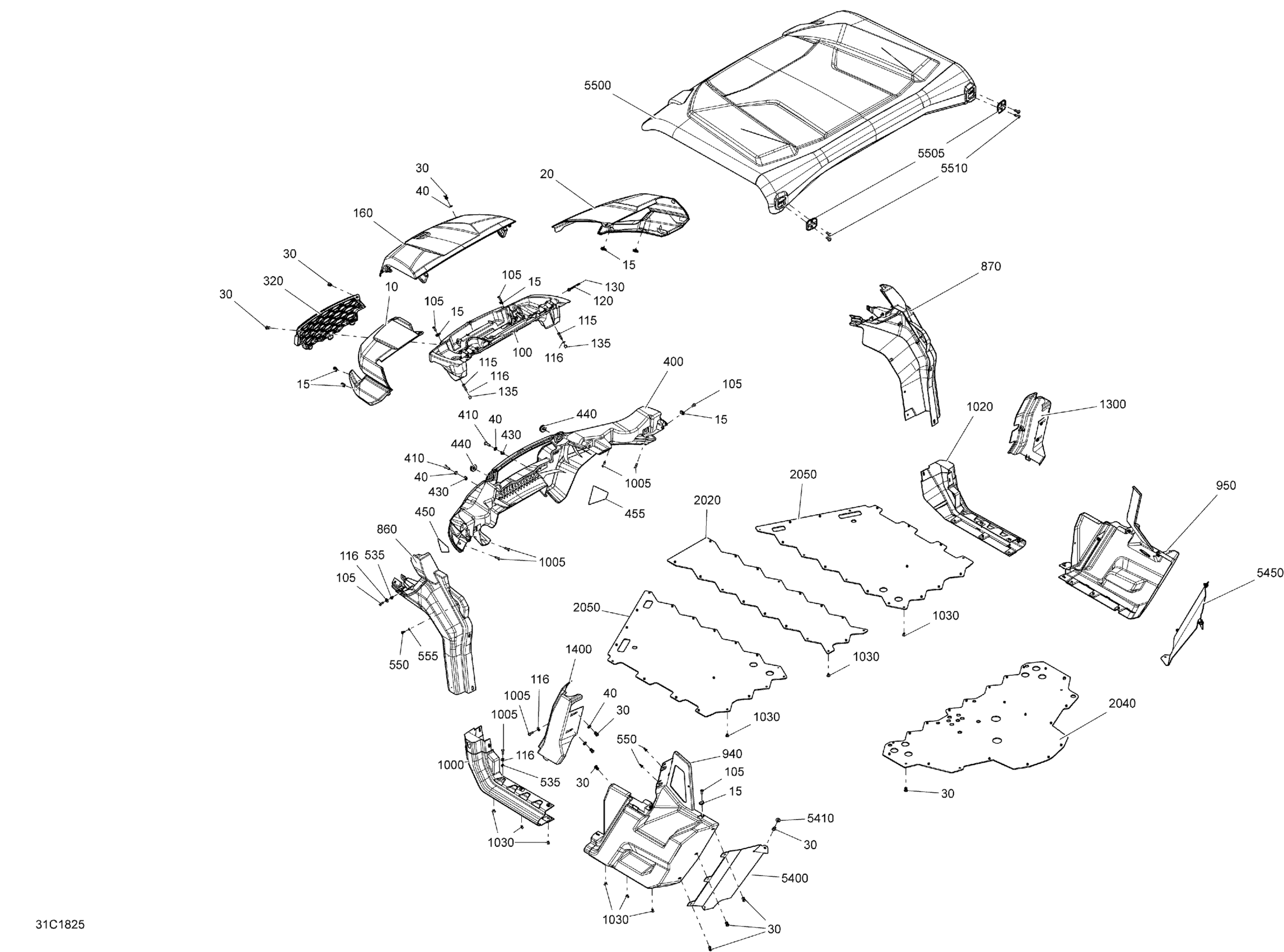

Can-Am Traxter HD8, 2018 Body Traxter Non MAX HD8 - Squadron Green Models Diagram

Squadron Green, LH Front Fender | Green Model

705012590

$309.99

Panel Nut M6 X 1.0

250100198

$2.11

Squadron Green, RH Front Fender | Green Model

705012591

$309.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Service Center

705011391

$64.99

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 75

207667554

$4.44

Push Nut

732610072

$2.19

Bushing

293900125

$2.69

Squadron Green, Removable Hood | Green Model

705012592

$144.99

Grid Front Fascia

705009364

$28.99

Front Facia

705011392

$254.99

Torx Screw M8 X 30

250000886

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Grommet

705010718

$2.69

LH Front Reflector

704905072

$13.49

RH Front Reflector

704905073

$13.49

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Screw K50 X 16

250000720

$1.69

Flat Washer M5

234051670

$2.11

LH Front Lateral Panel

705008152

$62.99

RH Front Lateral Panel

705008153

$62.99

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

RH Rear Side Panel

705012705

$114.99

Deep Black, LH Central Panel

705019037

$71.99

Torx Truss Screw M6 X 25

250000807

$2.11

Deep Black, RH Central Panel

705019038

$74.99

Pop Rivet 3/16”

293150108

$1.19

LH Rear Cage Cover Kit

715003564

$82.99

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

Central Skid Plate

705009151

$62.49

Rear Skid Plate

705011292

$88.99

Lateral Skid Plate

705010422

$86.99

LH Rear Deflector

705010426

$53.99

Flat Washer 8 mm, Nylon

292001663

$1.47

RH Rear Deflector

705010427

$53.99

Sport Roof Kit

715002430

$549.99

Roof Cap

705800058

$3.99

Torx Truss M8 X 25

250000874

$2.11
