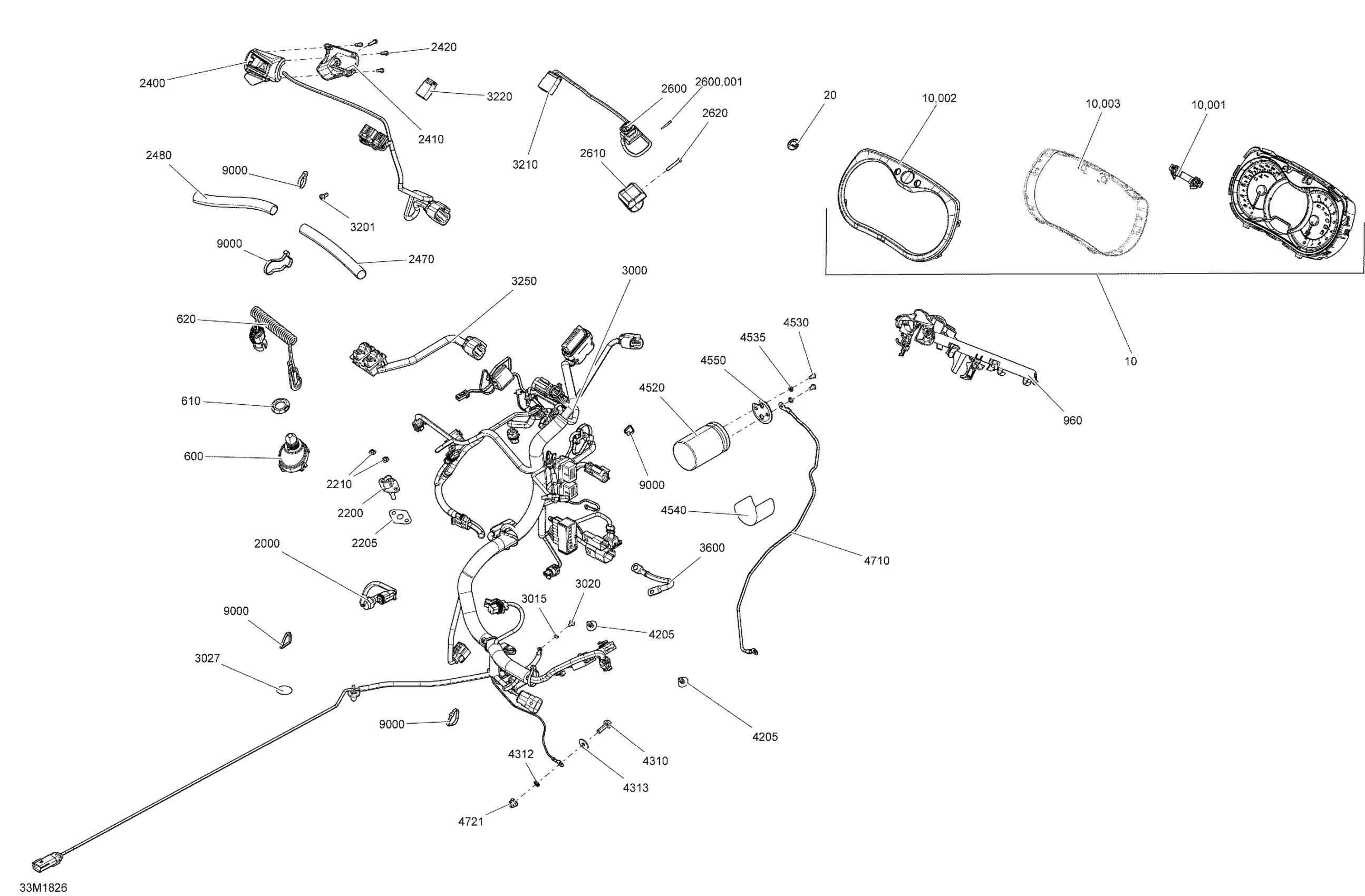

Ski-Doo SUMMIT 600HO E-TEC, 2018 Electrical System Summit - 600 HO E-TEC - Manual Starter Diagram

#

Description
Price

10

Speedometer | Includes 10 to 10c

515177910

$679.99

10.001

Speedometer Button | XTP

415129355

$16.49

10.002

Gauge Ring

415129348

$13.99

10.003

Lens | XTP

415129349

$25.99

20

BRP Logo 20MM x 2MM | XTP

516006224

$14.49

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.39

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$69.99

960

Connector Plate

515177134

$17.99

2000

Temperature Sensor This part replaces 420664508.

420664509

$154.99

2200

Air Temperature Sensor

515176366

$19.99

2205

Seal

508000769

$6.49

2210

Push Nut

389804300

$1.49

2400

LH Switch Housing

515178305

$254.99

2410

LH Switch Housing Plate

515177149

$18.49

2420

Torx Screw

250000671

$1.49

2470

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$88.99

2600.001

Male Terminal

515175232

$1.59

2610

Emergency Stop Switch Support

515177310

$9.39

2620

Torx Screw #8-18

250000263

$1.49

3000

Main Harness

515177984

$389.99

3015

Lock Washer 4 mm

234141601

$1.49

3020

Screw-Torx Button Head M4 X 8

250000741

$1.49

3027

Adhesive Patch

518325560

$4.69

3201

Pan Screw Forming, 7500C

250000690

$2.19

3210

Male Terminal Housing, 6 Circuits

515175662

$8.99

3220

Male Terminal Housing, 4 Circuits

515175846

$8.99

3250

Double Switch Module

515177154

$78.99

3600

Ground Wire

515177289

$27.99

4205

Black, Dart

414644300

$1.49

4310

Hex. Flange Screw M6 X 20

207662044

$2.09

4312

External Serrated Lock Washer 6 mm

234461608

$1.49

4313

Flat Washer

250200082

$1.49

4520

Capacitor

515177272

$92.99

4530

Socket Head Screw M10 X 32

250000462

$2.19

4535

Lock washer | Quest XT 650.

250200026

$1.99

4540

Capacitor Decal

516008593

$1.49

4550

Cap

515177193

$4.79

4710

Ground Wire

515178052

$28.99

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

9000

Tie-Rap 180 mm

414115200

$1.49

9000

Tie Wrap 142 mm

293750002

$1.49

9000

Tie Wrap 368 mm

293750008

$1.49

9000

Tie Wrap 94 mm | 4X4

293750001

$1.49

9000

Tie-Rap 173 mm

293750009

$1.49
