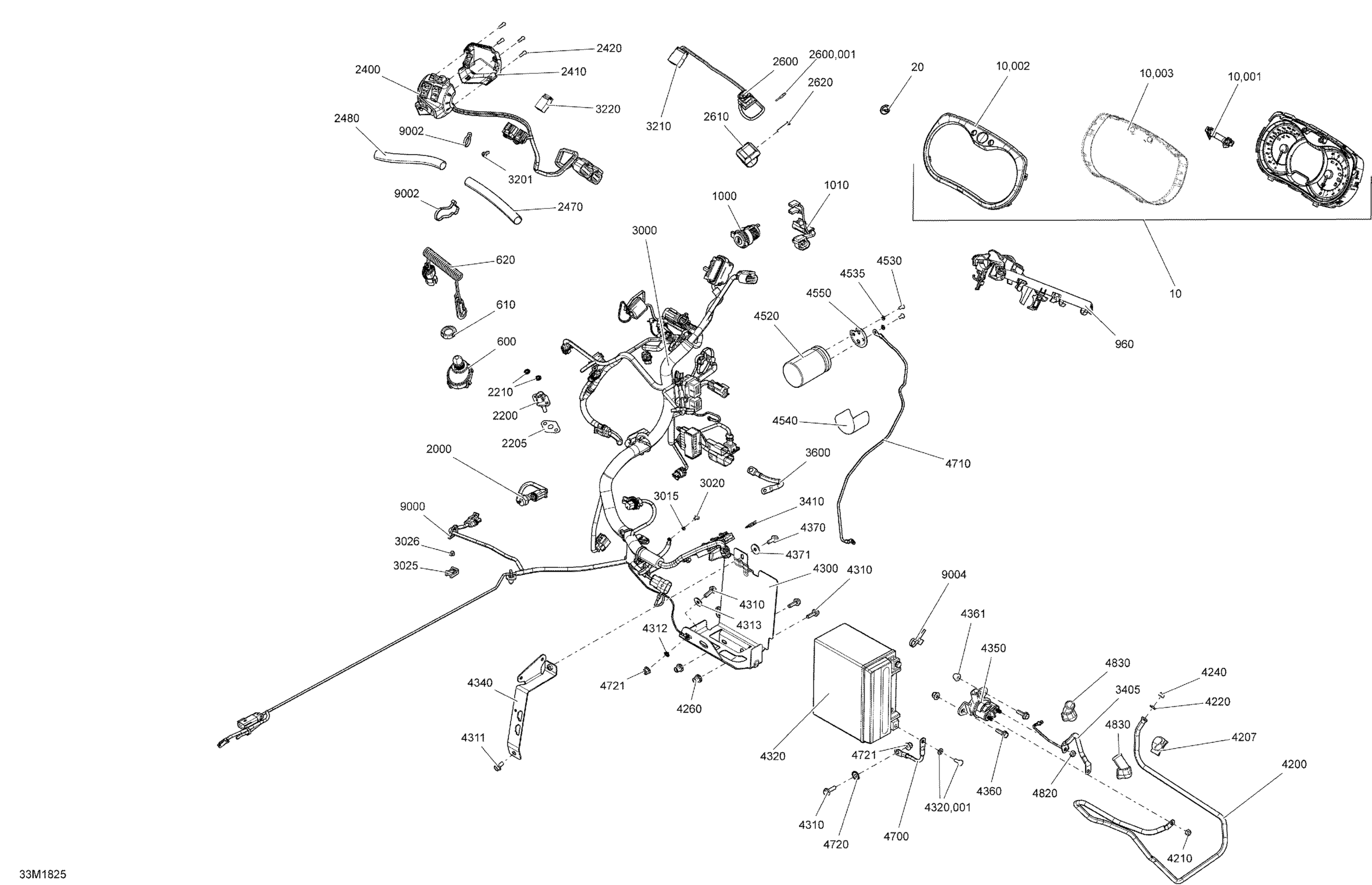

Ski-Doo SUMMIT 600HO E-TEC, 2018 Electrical System Summit - 600 HO E-TEC - Electric Starter Diagram

Speedometer | Includes 10 to 10c

515177910

$679.99

Speedometer Button | XTP

415129355

$16.49

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$25.99

BRP Logo 20MM x 2MM | XTP

516006224

$14.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.39

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$69.99

Connector Plate

515177134

$17.99

Temperature Sensor This part replaces 420664508.

420664509

$154.99

Air Temperature Sensor

515176366

$19.99

Seal

508000769

$6.49

Push Nut

389804300

$1.49

LH Switch Housing

515178305

$254.99

LH Switch Housing Plate

515177149

$18.49

Torx Screw

250000671

$1.49

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$88.99

Male Terminal

515175232

$1.59

Emergency Stop Switch Support

515177310

$9.39

Torx Screw #8-18

250000263

$1.49

Main Harness

515177984

$389.99

Lock Washer 4 mm

234141601

$1.49

Screw-Torx Button Head M4 X 8

250000741

$1.49

Adhesive Patch

518325560

$4.69

Pan Screw Forming, 7500C

250000690

$2.19

Male Terminal Housing, 6 Circuits

515175662

$8.99

Male Terminal Housing, 4 Circuits

515175846

$8.99

Double Switch Module

515177154

$78.99

Fuse Battery Wire

515177576

$16.49

Fuse, 25 Amperes

278001443

$3.39

Ground Wire

515177289

$27.99

Battery/Starter Wire

515177208

$31.99

Clip

515177066

$4.39

Elastic Stop Nut M6

232561414

$1.78

Flat Washer 6 mm

234061410

$1.49

Elastic Stop Nut M6

232561414

$1.78

Insert

293450275

$12.99

Battery Support

515177264

$32.99

Hex. Flange Screw M6 X 20

207662044

$2.09

Hex. Flange Screw M6 X 20

207662044

$2.09

Hex. Flange Screw M6 X 12

207661244

$2.19

External Serrated Lock Washer 6 mm

234461608

$1.49

Flat Washer

250200082

$1.49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$149.95

Battery Bolt Kit

250000282

$7.49

Battery Strip

515177266

$19.99

Starter Relay

278003012

$43.99

Hex. Flange Screw M6 X 20

207662044

$2.09

Elastic Flange Nut M6 X 1.0

233261416

$2.19

Hex. Flange Screw M6 X 16

207661644

$1.49

Flat Washer

224061201

$1.49

Capacitor

515177272

$92.99

Socket Head Screw M10 X 32

250000462

$2.19

Lock washer | Quest XT 650.

250200026

$1.99

Capacitor Decal

516008593

$1.49

Cap

515177193

$4.79

Ground Wire

515176358

$28.99

Ground Wire

515178052

$28.99

Lock Washer Serrated M6

250200041

$1.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

Elastic Stop Nut M6

232561414

$1.78

Protector Cap

710000495

$11.49

Tie-Rap 180 mm

414115200

$1.49

Tie Wrap 142 mm

293750002

$1.49

Tie Wrap 368 mm

293750008

$1.49

Tie Wrap 94 mm | 4X4

293750001

$1.49

Tie-Rap 173 mm

293750009

$1.49
