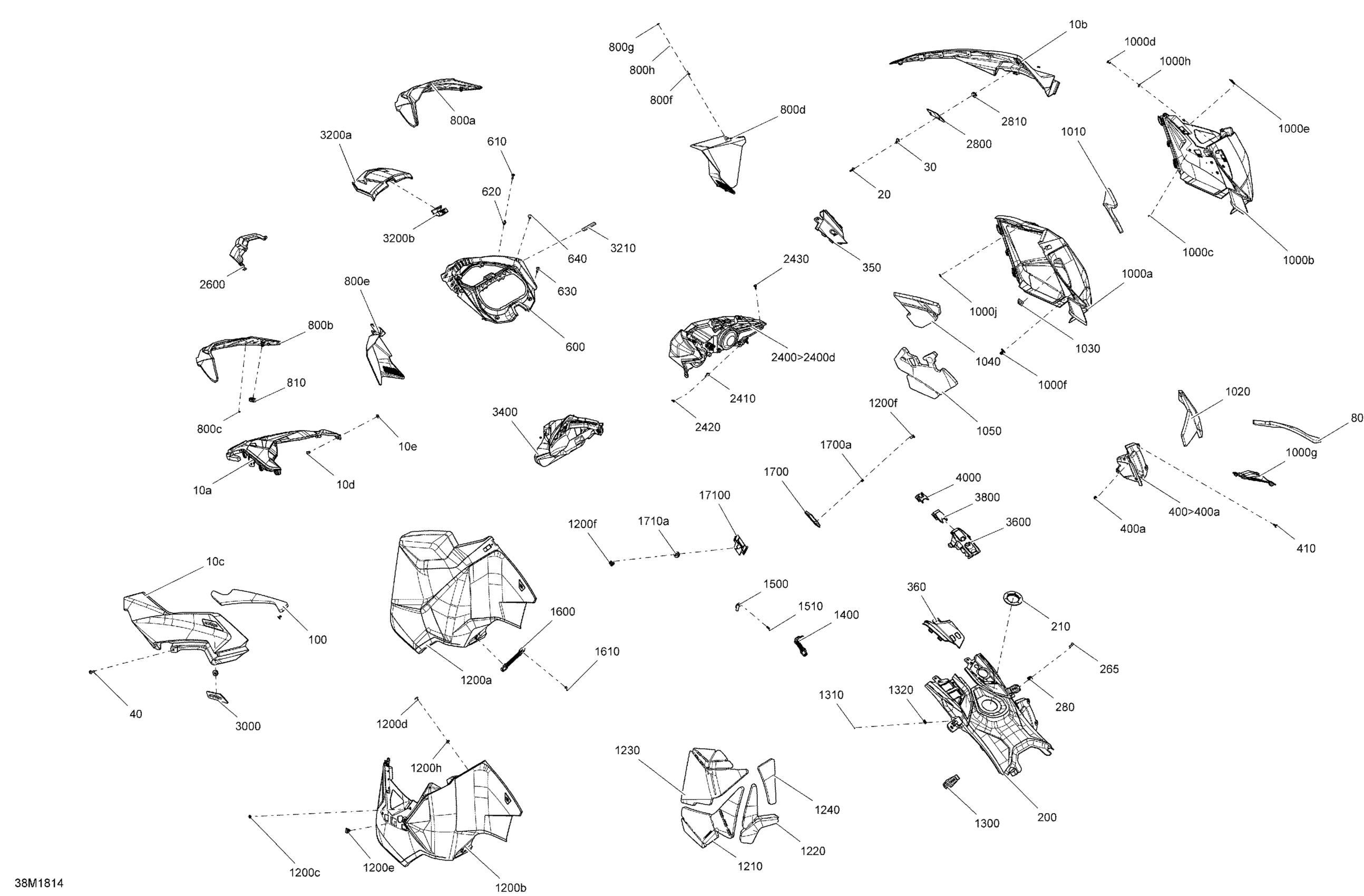

Ski-Doo 2- SUMMIT 600HO E-TEC, 2018 09- Hood Summit - 600 HO E-TEC Diagram

#

Description
Price

10a

Deep Black, Center Hood

517304796

$214.99

10b

Deep Black, RH Hood

517305239

$199.99

10b

HOOD RH B-354 - Call your local BRP dealership

517305575

$189.99

10c

Deep Black, LH Hood

517305240

$199.99

10c

HOOD LH B-354 - Call your local BRP dealership

517305576

Unavailable

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10e

Washer

517124300

$0.19

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

40

Torx Screw M5 X 26

250000587

$4.44

80

RH Rear Hood Foam

517305090

$16.49

100

LH Rear Hood Foam

517305091

$16.49

200

Deep Black, Rear Console

517305641

$224.99

200

Yellow Sunburst, Rear Console | Package X

517306133

$209.99

210

Console Nut

517304518

$15.29

265

Torx Truss Screw M6 X 20

250000705

$2.11

280

Panel Nut M6 X 1.0

250100198

$2.11

350

Deep Black, RH Front Console

517305549

$21.99

360

Deep Black, LH Front Console

517305128

$31.99

400

Deep Black RH Console | Package XRS

517305060

$35.99

400a

Black, Cap

275500241

$3.49

410

Screw M4 X 16

250000725

$3.49

600

Deep Black, Indicator Support

517305512

$59.99

610

Torx Screw M5 X 20

250000528

$2.11

620

Panel Nut M5 X 0.8

250000958

$4.23

630

Torx Screw M5 X 26

250000587

$4.44

640

Black, Dart

414644300

$0.98

800a

Windshield 235mm | Package X

517304921

$154.49

800b

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$25.49

800c

Push Nut

732610072

$2.19

810

Grommet

517303756

$4.09

1000a

Deep Black - RH Panel | Electric Start

517305507

$309.99

1000a

Deep Black - RH Panel | Manual Start

517305508

$309.99

1000b

Pin

517305734

$3.49

1000c

RH Panel Vent Grid Deep Black

517305140

$31.99

1000d

Push Nut

250100158

$2.11

1020

RH Rear Panel Foam

517305085

$19.99

1040

RH Upper Panel Foam

517305082

$39.99

1200a

Deep Black LH Panel

517305510

$199.99

1200b

Pin

517305734

$3.49

1210

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

$24.99

1220

LH Lower Panel Foam

517305088

$21.99

1230

LH Upper Panel Foam

517305086

$21.99

1240

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

$13.49

1300

Panel Latch

517305279

$18.99

1310

Hexalob Screw M4 X 10

250000565

$2.11

1320

Weld Nut M4

250100156

$4.34

1400

RH Panel Latch

517303612

$9.99

1500

Latch Support

517304221

$9.19

1510

Torx Screw M5 X 20

250000792

$2.11

1600

LH Panel Latch

517303808

$11.49

1610

Pop Rivet 3/16”

293150108

$1.19

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

1700a

Ring

517305723

$3.49

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

1710a

Ring

517305723

$3.49

2400

Headlamp

517306180

$249.99

2400a

Cap

219400070

$18.49

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2400c

Holder Bracket

219800282

$5.89

2400d

Spring

219800281

$3.49

2400e

Harness

415130194

Unavailable

2400f

Connector Holder

710002033

$3.39

2410

Torx Screw M5 X 20

250000528

$2.11

2420

Jack Nut M5

250100035

$6.99

2430

Screw M4 X 16

250000725

$3.49

2600

Headlight Trim Cap

517305010

$37.99

2800

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$16.49

3000

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

$16.49

3200a

Deep Black, Upper Storage Access Cover

517304912

$18.49

3200b

Cover Latch

517304917

$12.99

3210

Seal Joint

517305157

$2.39

3400

Deep Black, Trunk

517305095

$21.99

3600

Deep Black, Console Support

517304970

$14.49

3800

Deep Black, Support Console Cap

517305148

$4.99

4000

Deep Black, Support Console Cap

517305147

$4.99
