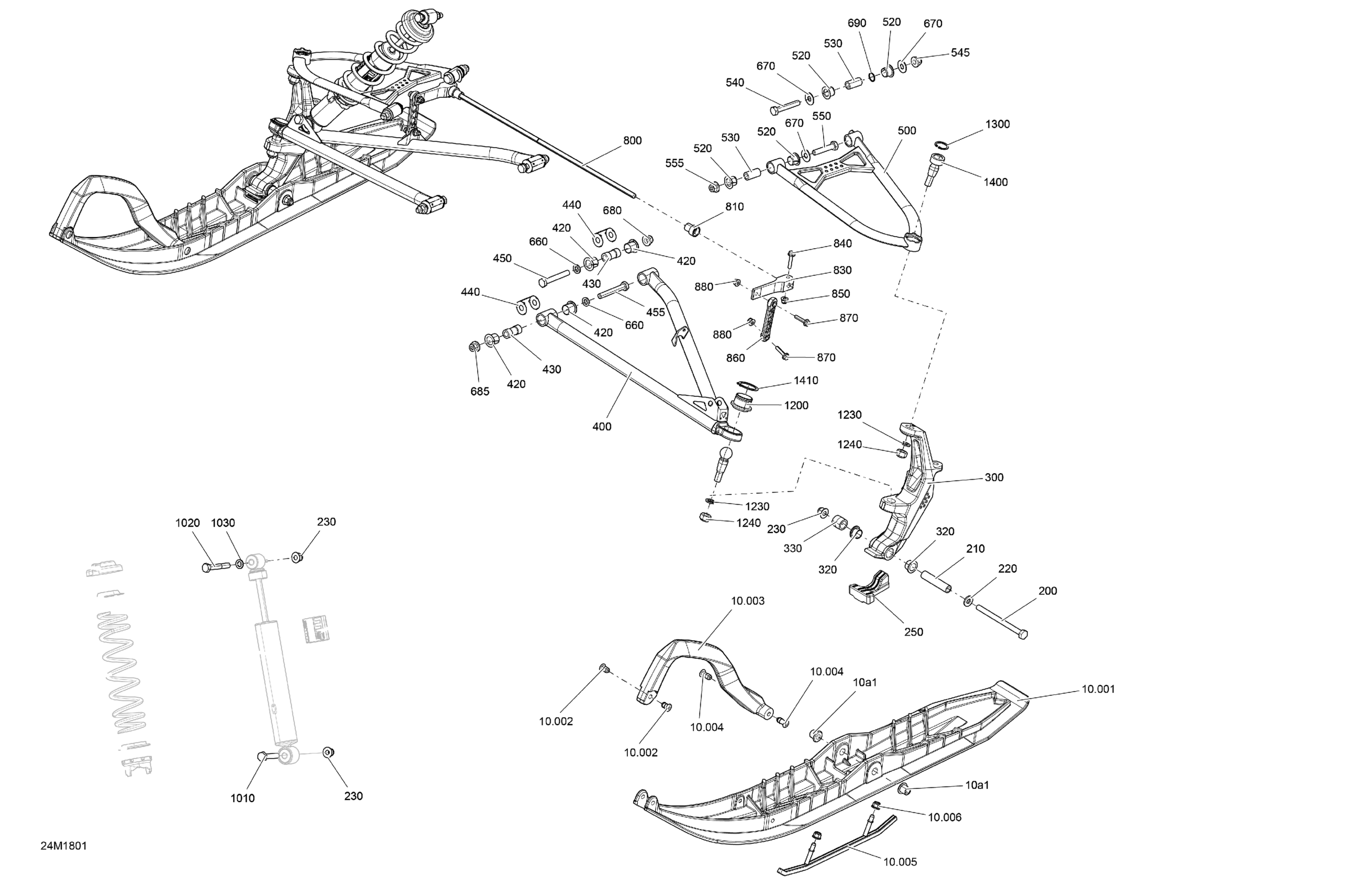

Ski-Doo SUMMIT 600HO E-TEC, 2018 Front Suspension And Ski Summit - 600HO E-TEC - Package SP Diagram

#

Description
Price

10.001

Black, Ski

505073227

$170.12

10.001

Hex. Flange Elastic Nut M8

233281414

$1.14

10.002

Retainer 17mm long

505071812

$4.30

10.003

Black, Handle

505072976

$34.30

10.004

Retainer 23mm Long

505072133

$4.88

10.005

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10.006

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Spacer

506133300

$19.37

250

Ski Stopper

505074138

$28.33

300

Black, LH Ski Leg

505073579

$231.31

310

Black, RH Ski Leg

505073580

$261.16

320

Leg Bushing

505072690

$5.75

330

Spacer

503193651

$7.36

400

Black, Lower Arm RH 36"

505073441

$184.30

400

Black, LH Lower Arm 36"

505073438

$184.30

420

Bushing

505072208

$3.04

430

Sleeve

505072209

$13.96

440

Wear Plate

505072634

$4.31

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

500

Black Upper Arm LH

505073432

$184.30

500

Black, Upper Arm RH

505073435

$184.30

520

Bushing

505072250

$3.04

530

Sleeve

505072143

$8.36

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

$2.18

800

Stabilisator

505073609

$65.64

810

Bushing

505072786

$7.18

830

Stabilisator Lever

505073176

$15.64

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$18.63

860

Double Ball Joint Link

505073172

$52.96

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1010

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1030

Washer

503189564

$0.70

1200

Ball Joint

505073636

$48.48

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Circlip

293370035

$2.48
