Description

Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,089.99

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

$575.34

2

Oil seal

619230010

$17.13

3

Main Shaft Ass'y | Gear Box 2.30

619230054

$546.99

4

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$575.34

5

Fork, Forwards

619230055

$136.54

6

Fork, reverse

619230015

$191.01

7

Shaft

619230016

Unavailable

8

Spring

619230017

$13.91

9

Shifting Drum

619230056

$204.45

10

O-Ring

619230079

$22.36

11

Locking lever

619230021

$55.94

12

Middle gear

619230022

$212.66

13

Lower gear

619230023

$394.75

14

Magnetic Plug

619230070

$23.85

15

Outside Cover

619230060

Unavailable

16

Cover Lh (Inside) This part replaces 619230067.

619230075

$344.75

17

Oil Plug

619230027

$39.52

18

O-Ring

619230069

$7.79

19

Screw

619230029

Unavailable

20

Washer

619230030

$7.58

21

Oil seal

619230031

$18.63

22

FLANGED SCREW 10.9 DTM M6X20 GRIP - Call your local BRP dealership

619230076

Unavailable

23

Allen Screw M8 x 10

619230037

$5.72

24

Allen Screw M10 x 16

619230038

$3.81

25

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

26

Seal Ring

619230047

$3.81

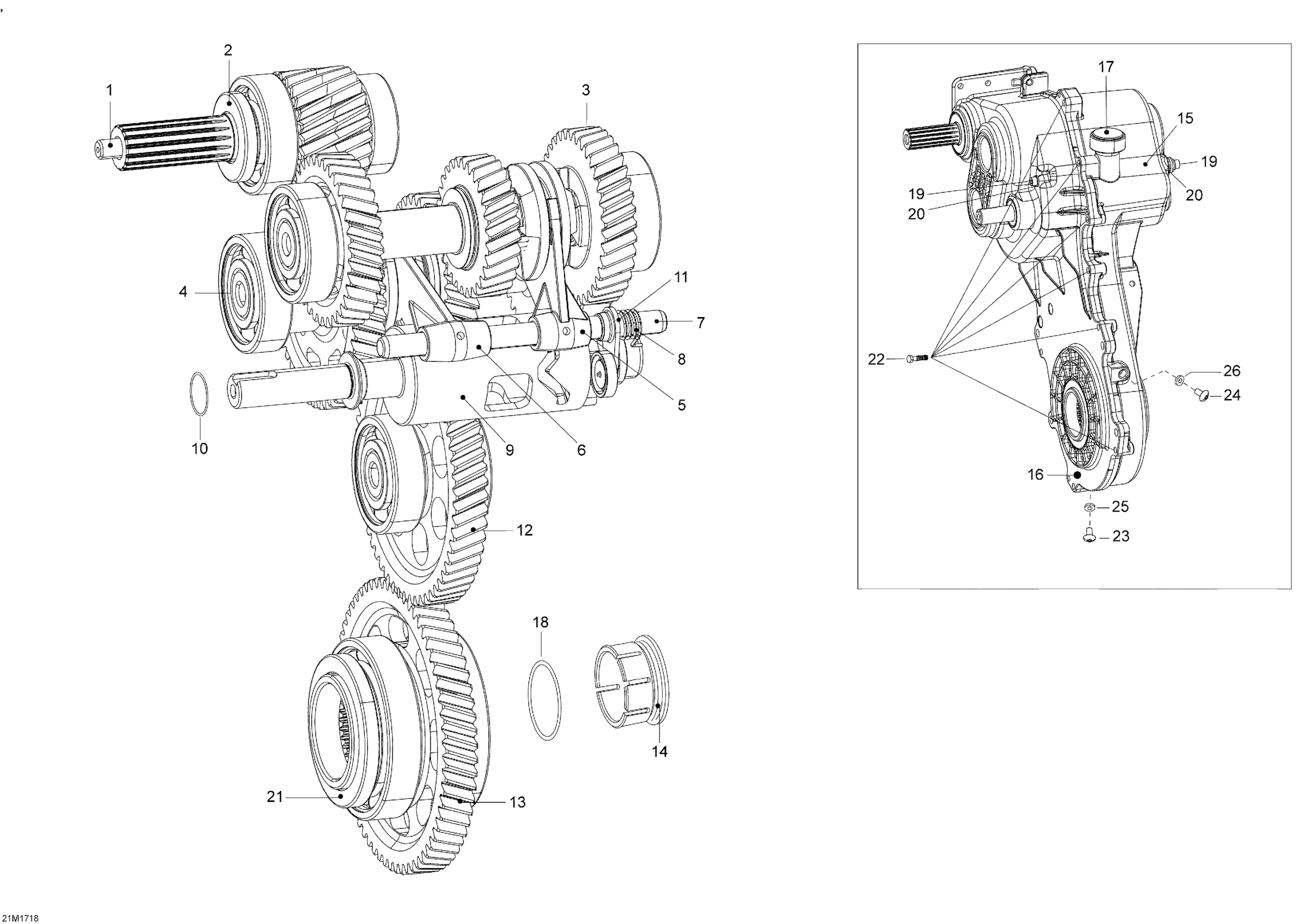

Ski-Doo SKANDIC 600HO E-TEC, 2018 Transmission Slow Ratio - WT Diagram

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

Counter Shaft Ass'y | Gear Box 2.30

Oil seal

Main Shaft Ass'y | Gear Box 2.30

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

Fork, Forwards

Fork, reverse

Shaft

Spring

Shifting Drum

O-Ring

Locking lever

Middle gear

Lower gear

Magnetic Plug

Outside Cover

Cover Lh (Inside) This part replaces 619230067.

Oil Plug

O-Ring

Screw

Washer

Oil seal

FLANGED SCREW 10.9 DTM M6X20 GRIP - Call your local BRP dealership

Allen Screw M8 x 10

Allen Screw M10 x 16

Gasket-ring - Call your local BRP dealership

Seal Ring
