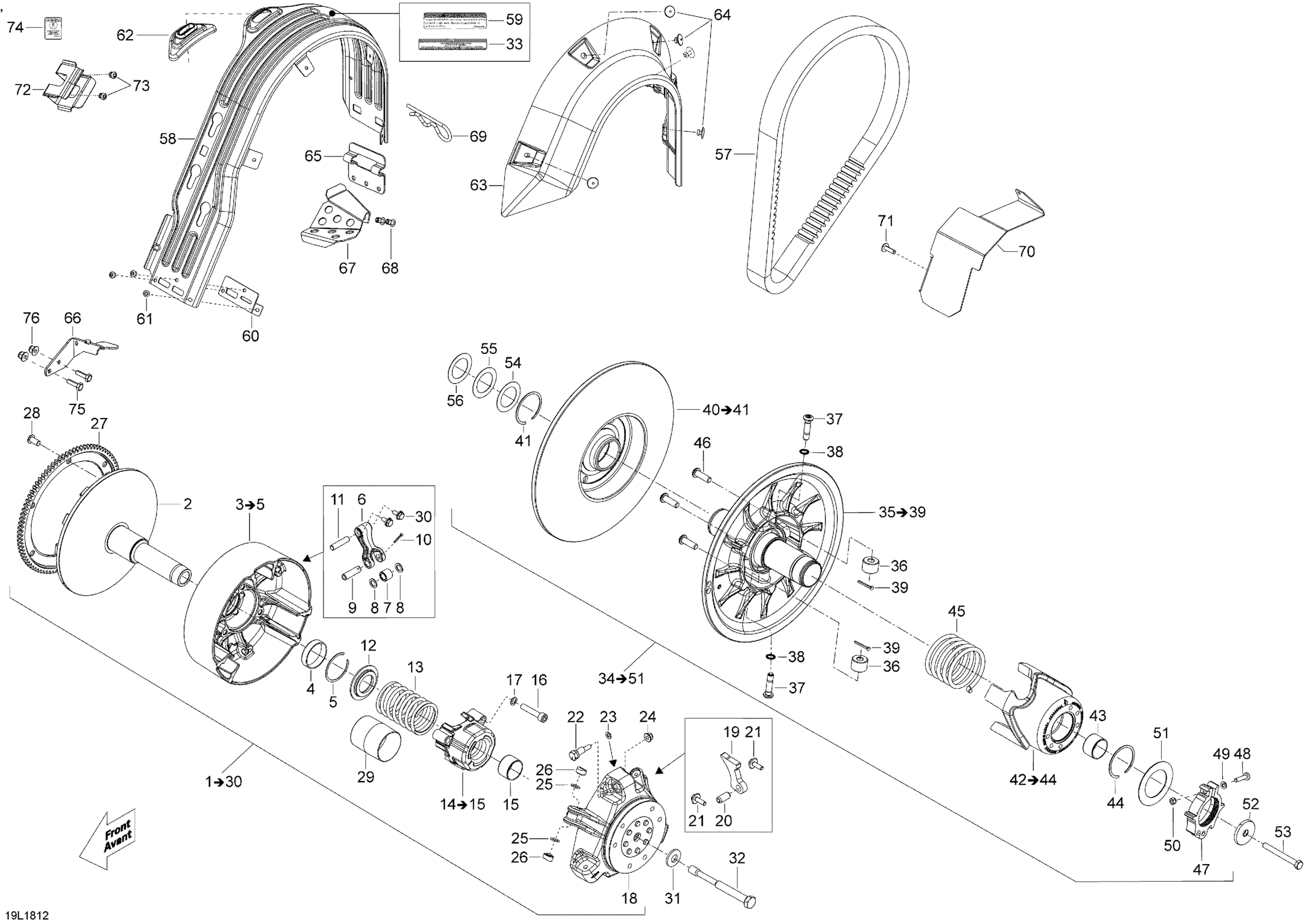

Ski-Doo SKANDIC 600HO E-TEC, 2018 Pulley Skandic - 600HO E-TEC Diagram

#

Description
Price

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Circlip

293370037

$3.19

6

Lever | Includes 10f to 10g

417222671

$49.99

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417222594

$14.99

10

Cotter Pin

250400060

$2.00

11

Lever Axle

417223164

$4.49

12

Spring Seat

417222312

$9.59

13

Tra Spring

414993000

$56.99

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

15

Bushing

417009204

$17.49

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

17

Lock Washer 8 mm

250200009

$2.11

18

Governor Cup Ass'y

417223669

$489.99

19

Ramp 600

417222444

$36.99

20

Spring Pin M10 X 22

250400050

$2.99

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

22

Calibration Screw

417223501

$13.99

23

Washer

417005600

$4.09

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

O-Ring

732401030

$0.98

26

Slider Shoe

417223271

$8.26

27

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

28

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

29

Guard

417009205

$21.99

30

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

31

Conical Spring Washer M14

250200144

$4.44

32

Drive Pulley Bolt

417120000

$65.49

33

Decal English

516005503

Unavailable

35

Fixed Flange Ass'y

417127466

$459.99

40

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

42

Cam Ass'y

417127459

$132.99

45

Spring, White

417127243

$43.49

47

Calibration Ass'y

415129604

$21.49

48

Socket Screw M5 X 25

205052544

$1.68

49

Flat Washer M5

234051410

$0.53

50

Elastic Stop Nut M5

232551414

$0.87

51

Washer

417127155

$8.26

52

Strength Washer

517302322

$12.63

53

Hex. Cap Screw M8 X 75

207287544

$5.18

54

Spacer

417300252

$5.49

55

Spacer

417300265

$2.29

56

Shim

504112000

$8.59

57

Drive Belt

417300551

$179.99

58

Belt Guard

417300357

$91.99

59

Security Label, Belt Guard

516006900

Unavailable

60

Reinforcement

417300380

$7.29

61

Avex Rivet

390909200

$0.30

62

Guide

417300381

$11.99

63

Side Protector

417300356

$14.76

64

Pop Rivet 3/16"

293150103

$0.55

65

Belt Guard Bracket | Except Package SWT

417300363

$14.49

65

Belt Guard Bracket | Package SWT

417300413

$9.09

66

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

67

Brake Hose Cover | Except Package SWT

518325626

$29.99

67

Brake Hose Cover | Package SWT

518327035

$13.99

68

Rivet Hucklok

293150163

$2.99

69

Hair Pin

114045200

$11.11

70

Air Duct | North America

417300468

$49.99

70.1

Clinch Nut M6 Hexsert

605636003

$4.23

71

Torx Screw M6 X 20

250000722

$1.68

72

Bracket

517281905

$18.49

73

Avex Rivet

390909100

$0.30

74

Belt Decal, English

516005511

Unavailable
