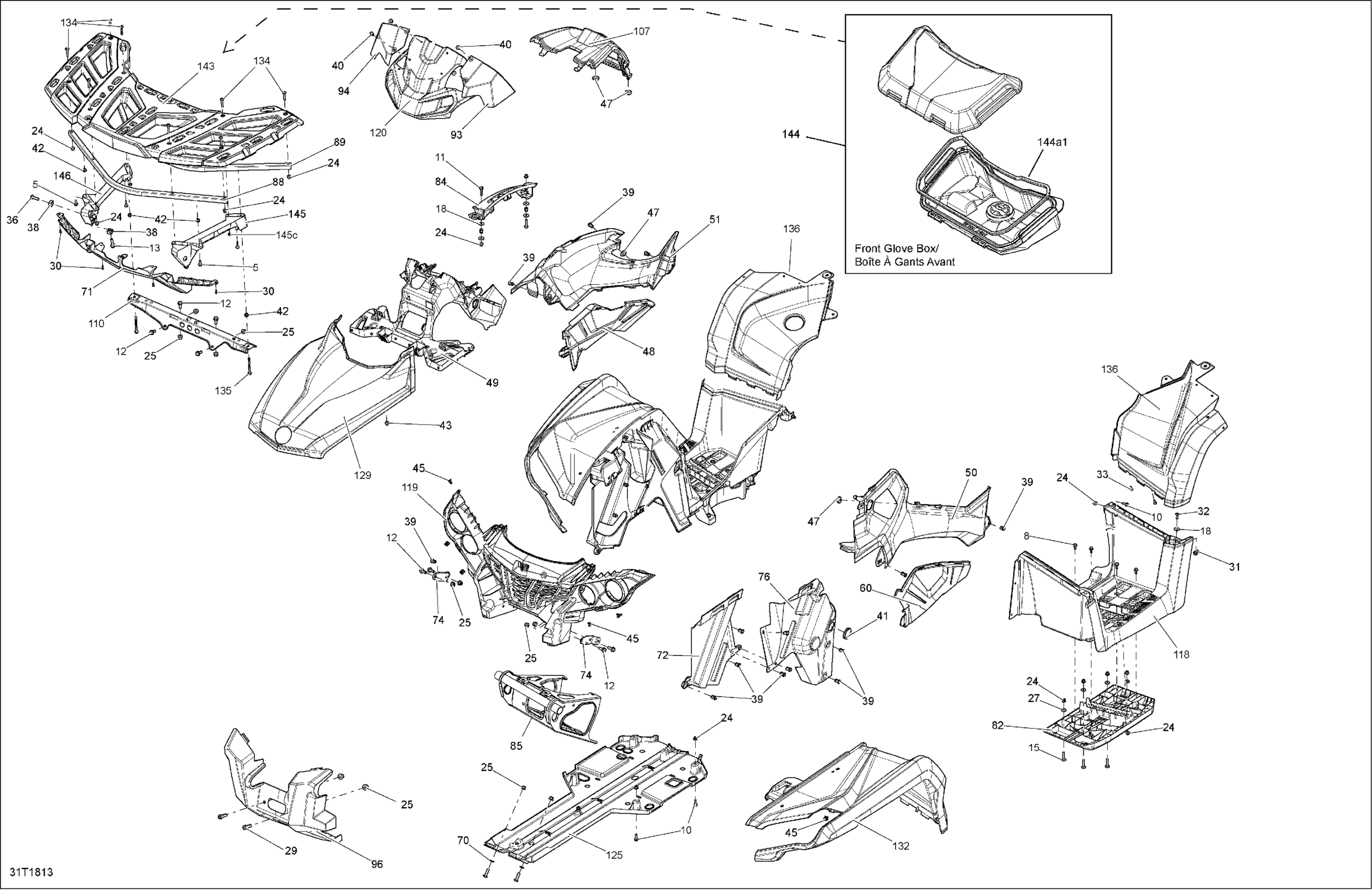

Can-Am 2- Outlander 6X6 T3 1000 EFI, 2018 09- Body And Accessories Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

8

Hex. Flange Screw M6 X 16

207661654

Unavailable

10

Hex. Flange Screw M6 X 20

207662054

Unavailable

11

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

12

Hex. Flange Screw M8 X 20

207682044

Unavailable

13

Hex. Flange Screw M8 X 35

207683534

Unavailable

15

Carriage Bolt M6 X 35

207763554

Unavailable

18

Flat Washer

224061201

Unavailable

24

Flange Elastic Nut M6

233261434

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

Unavailable

27

Flat Washer 6 mm

234062410

Unavailable

29

Socket Screw M10 x 30 | XT

205003044

Unavailable

30

Screw K40 X 10

241140060

Unavailable

31

Panel Nut M6 X 1.0

250100198

Unavailable

32

Torx Screw M6 X 20

250000722

Unavailable

36

Torx Screw M8 X 30

250000886

Unavailable

39

Tuflok Plastic Rivet

293150230

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

41

Rubber Cover

293250242

Unavailable

42

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

43

Rubber Bumper

293830005

Unavailable

45

Edge Clip

517302785

Unavailable

47

Grommet

705003264

Unavailable

48

Engine Cover

705003444

Unavailable

49

Console Support Ass'y | Model-Europe/International

715006101

Unavailable

50

Squadron Green, LH Lateral Panel | Green Model

705009760

Unavailable

51

Squadron Green, RH Lateral Panel | Green Model

705009764

Unavailable

60

Deflector_Body Panel Kit

715007008

Unavailable

70

Ring

705004497

Unavailable

71

Lugage Rack Moulding

705004523

Unavailable

72

RH Front Inner Fender

705011463

Unavailable

72

LH Front Inner Fender

705011465

Unavailable

74

Lower Fender Support

705004565

Unavailable

76

RH Rear Inner Fender

705011462

Unavailable

76

LH Rear Inner Fender

705013111

Unavailable

82

LH Structural Footboard

705011540

Unavailable

82

RH Structural Footboard

705011542

Unavailable

84

Shifter Gate | 1000 Europe

705011548

Unavailable

85

Front Bumper Support

705016893

Unavailable

88

Sectional Bent Tube

705016640

Unavailable

89

Bent Sectional Tube

705016092

Unavailable

93

LH Air Deflector

705006134

Unavailable

94

RH Air Deflector

705006135

Unavailable

96

Front Guard Plate | Europe

705006300

Unavailable

107

Dash Kit | Europe, Int'l

715002783

Unavailable

110

Cargo Rack Center Support

705006812

Unavailable

118

LH Step

705007040

Unavailable

118

RH Step

705007039

Unavailable

119

Fascia

705012822

Unavailable

120

Gauge Support | Includes 700 to 700a

705012572

Unavailable

125

Protective Plate Kit

715002374

Unavailable

129

Squadron Green, Hood Kit

715004634

Unavailable

132

Squadron Green, LH Front Fender Kit

715004629

Unavailable

132

Squadron Green, RH Front Fender Kit | Model-International, T3

715004630

Unavailable

134

Black, Torx Screw M6 X 35

250000646

Unavailable

135

Hex. Flange Screw M6x70, Scotch Grip

207567044

Unavailable

136

Squadron Green, LH Rear Fender Kit

715004631

Unavailable

136

Squadron Green, RH Rear Fender Kit

715004633

Unavailable

143

Rack Kit | Europe, Int'l

715002784

Unavailable

144

Box Ass'y

708200408

Unavailable

144a

Clip | Outlander Max

269501945

Unavailable

144a1

Was 715900411 Neoprene Seal | Outlander MAX

219704452

Unavailable

145

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

Unavailable

145a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

145a1

Hex. Elastic Nut M8 Brass

232581200

Unavailable

145c

Hex. Elastic Stop Nut M6

232561600

Unavailable

146

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

Unavailable

146a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

146a1

Hex. Elastic Nut M8 Brass

232581200

Unavailable

146c

Hex. Elastic Stop Nut M6

232561600

Unavailable

148

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

149

Hex. Flange Elastic Nut M10

233201434

Unavailable

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

151

Shiftgate Trim | Europe

705005003

Unavailable

152

Flat Washer

224061201

Unavailable

153

Washer

517124300

Unavailable

154

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

155

Push Nut

732610072

Unavailable

156

Phillips Screw K40 X 16

250000723

Unavailable
