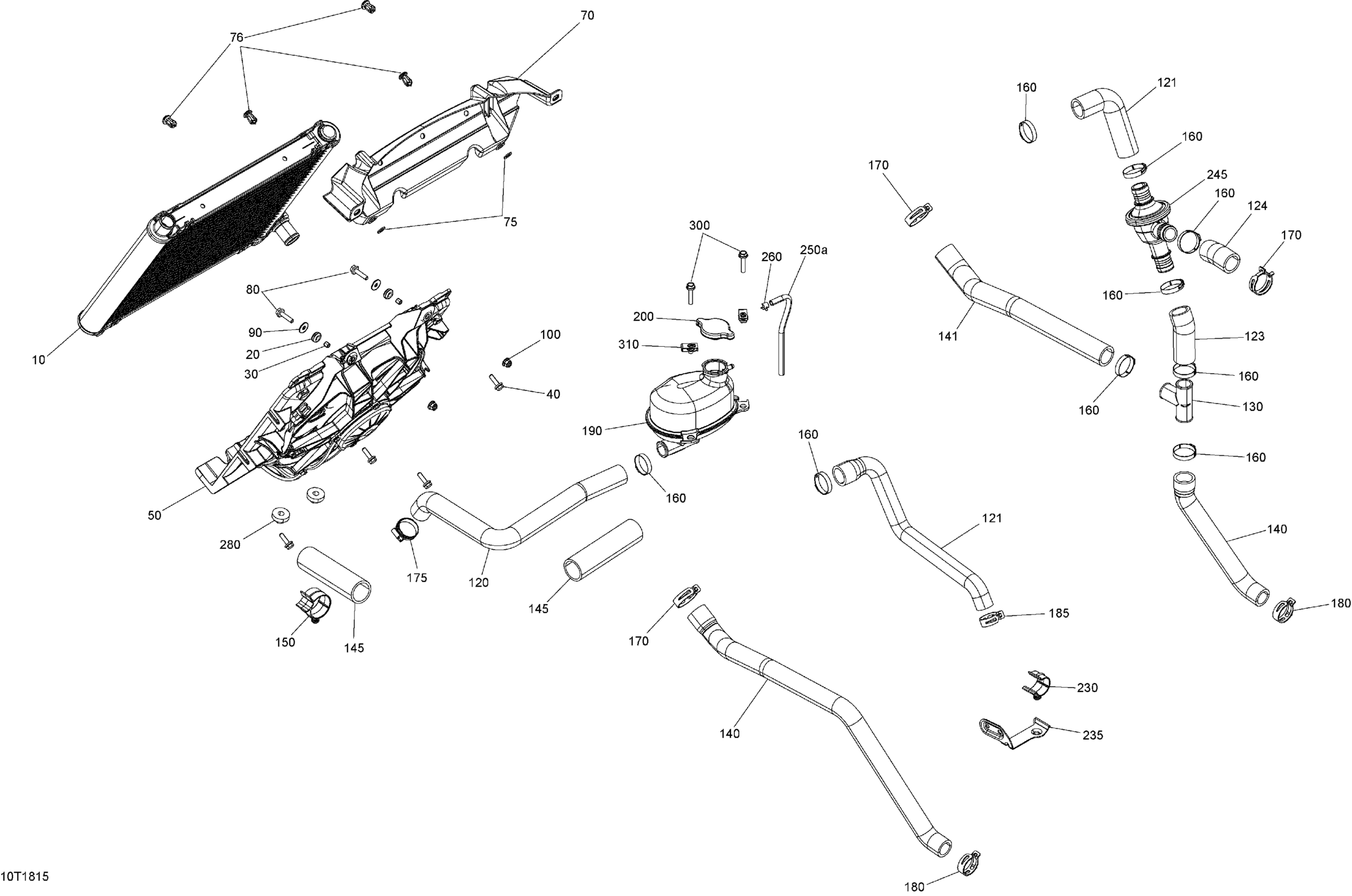

Can-Am Outlander 6X6 T3 1000 EFI, 2018 Cooling Diagram

#

Description
Price

10

Radiator

709200286

$444.00

20

Grommet

709000582

$4.25

30

Bushing

293900105

$6.07

40

Hex. Flange Screw M6 X 20

207662034

$1.74

50

Fan Ass'y

709200564

$217.88

70

Air Deflector | Outlander

709200393

$14.43

75

Flat Washer 8 mm

234081410

$0.69

76

Tuflok Plastic Rivet

293150230

$1.21

80

Hex. Flange Screw M6 X 25

207662534

$1.74

90

Flat Washer

250200082

$0.35

100

Flange Elastic Nut M6

233261434

$3.61

120

Radiator Inlet Hose

709200278

$32.06

121

Thermostat Inlet Hose | Engine 850-1000R

709200785

$8.60

123

Cylinder Hose | Engine 850-1000R

709200629

$6.69

124

Cylinder Hose | Engine 850-1000R

709200630

$6.69

130

T-Fitting

509000219

$14.90

140

Outlet Hose | Engine 850-1000R

709200787

$15.64

141

Radiator Outlet Hose | Engine 850-1000R

709200786

$22.36

145

Tubing 35 MM 1000MM Long

219704428

$8.57

150

Retainer

275500590

$7.18

160

Gear Clamp

509000162

$5.84

170

Norma Spring Clamp

293650166

$4.15

175

Norma Gear Clamp

293650098

$4.15

180

Norma Spring Clamp

293650166

$4.15

190

Coolant Tank

709200297

$49.97

200

Radiator Pressure Cap

709200207

$18.82

230

Retainer

275500526

$3.73

235

Hose Support

709200641

$8.24

245

Thermostat

709200406

$77.32

250a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

260

Spring Clamp

414554800

$0.81

280

Grommet

709200285

$7.09

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

310

Panel Nut M6 X 1.0

250100198

$1.73
