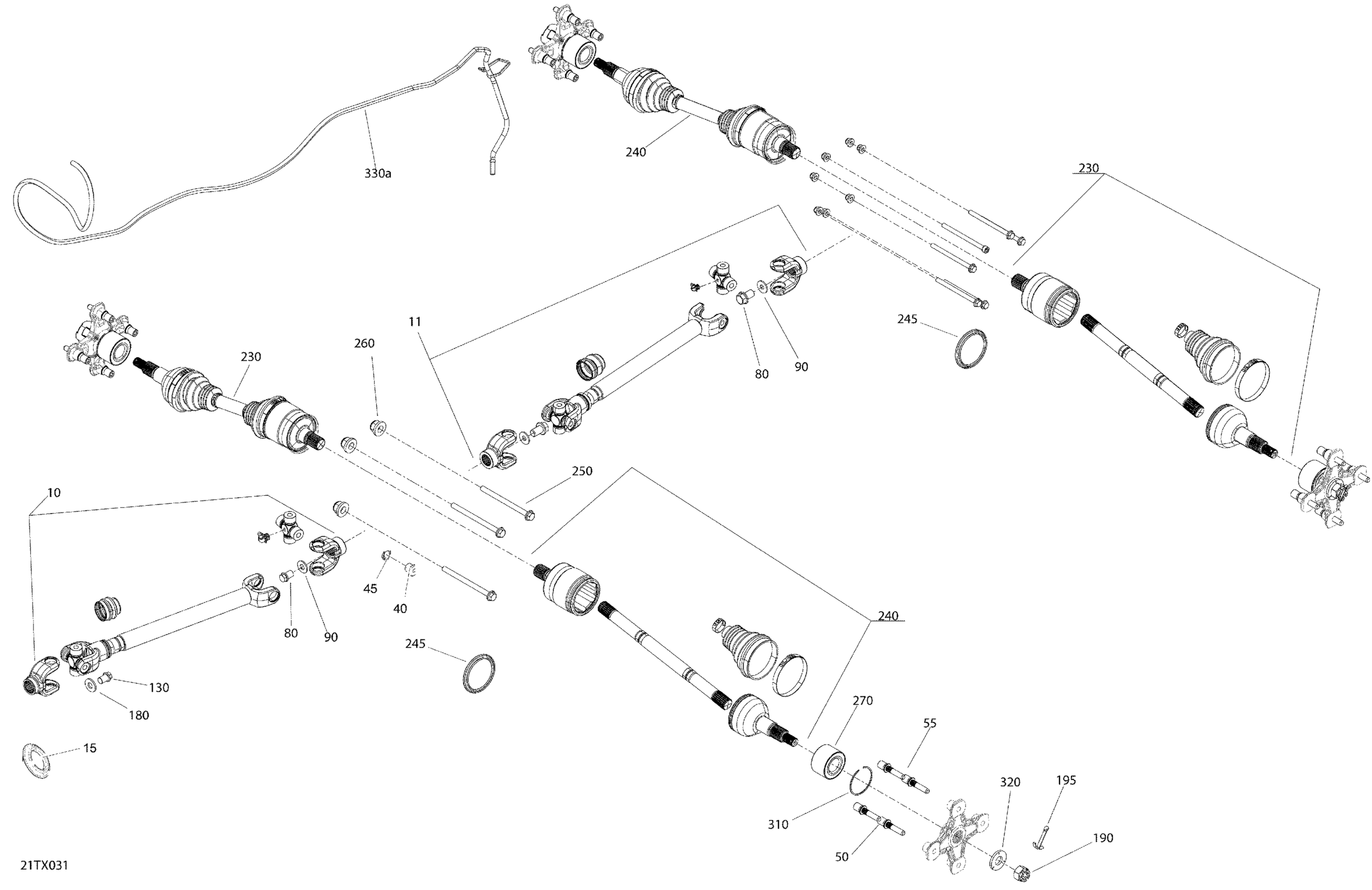

Can-Am Outlander 6X6 - 1000 EFI, 2018 Drive - Rear Section - PRO Diagram

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$301.46

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$381.31

Protector

705501123

$5.90

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub

705501900

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Hex Flange Screw M12 X 16, S.Grip

250001040

$3.25

Flat Washer M12

250200102

$1.74

Hex Flange Screw M12 X 16

250001039

$1.74

Conical Spring Washer M12

250200005

$2.65

Hex. Flange Castellated Nut M18

232291413

$2.82

Cotter Pin

250400071

$1.74

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$226.84

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

Wear Ring

705501124

$6.73

Hex. Flange Screw M10 X 135

250001041

$4.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Ball Bearing

293350150

$50.34

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$5.28

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
