Description

Price

7000

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

7000.001

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$309.99

7000.002

O-Ring

293300036

$11.60

7000.003

Spring Pin

250400014

$3.28

7000.004

Adjustment Decal

516004917

$44.99

7000.005

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

7000.006

Cylinder

503192795

$70.99

7000.007

Piston

503193779

$137.49

7000.008

Spring Bracket

503192633

$164.99

7000.009

Holder | Included 7000b.d to 7000b.d.e

503193485

$134.99

7000.01

O-Ring

293300068

$7.65

7000.011

O-Ring

503192832

$2.32

7000.012

O-Ring

293300039

$10.33

7000.013

Wear Ring

503192833

$16.86

7000.014

Retaining Ring

503192834

$4.99

7000.015

O-Ring

503193014

$2.32

7000.016

Connector Hose

503193476

$45.99

7000.017

Copper Washer

705601628

$4.44

7000.018

Banjo Bolt

705600628

$11.63

7000.019

O-Ring

293250269

$2.32

7000.02

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

7010

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$26.99

7010.001

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

7030

Socket Screw M4 X 16 (Scotch Grip)

205541660

$2.09

7100

LH Support

503194686

$37.99

7100.001

Decal

516006369

$16.49

7120

LH Hose Protector

503194524

$38.99

7130

Retaining Plate

503195712

$20.99

7140

Stavex Rivet

293150144

$0.82

7150

Stainless Flat Washer M6

234061600

$0.33

7160

Socket Head Screw M6 X 20

205062060

$2.32

7170

Hex. Flange Elastic Nut M6

233261466

$2.00

7200

LH Half Housing

503192956

$12.99

7210

Stainless Flat Washer M6

234061600

$0.33

7220

Socket Head Screw M6 X 20

205062060

$2.32

7500

RH Support

503194685

$37.99

7520

RH Hose Protector

503194525

$38.99

7530

Retaining Plate

503195712

$20.99

7540

Stavex Rivet

293150144

$0.82

7550

Stainless Flat Washer M6

234061600

$0.33

7560

Socket Head Screw M6 X 20

205062060

$2.32

7570

Hex. Flange Elastic Nut M6

233261466

$2.00

7600

RH Half-Housing

503192957

$14.49

7610

Decal

516006369

$16.49

7620

O-Ring

293250085

$1.01

7630

Stainless Flat Washer M6

234061600

$0.33

7640

Socket Head Screw M6 X 20

205062060

$2.32

7700

Protector

503194113

$28.99

7710

Flat Washer

224061201

$1.37

7720

Hex. Flange Screw M6 X 25

207662556

$4.44

7730

Hex. Flange Elastic Nut M6

233261466

$2.00

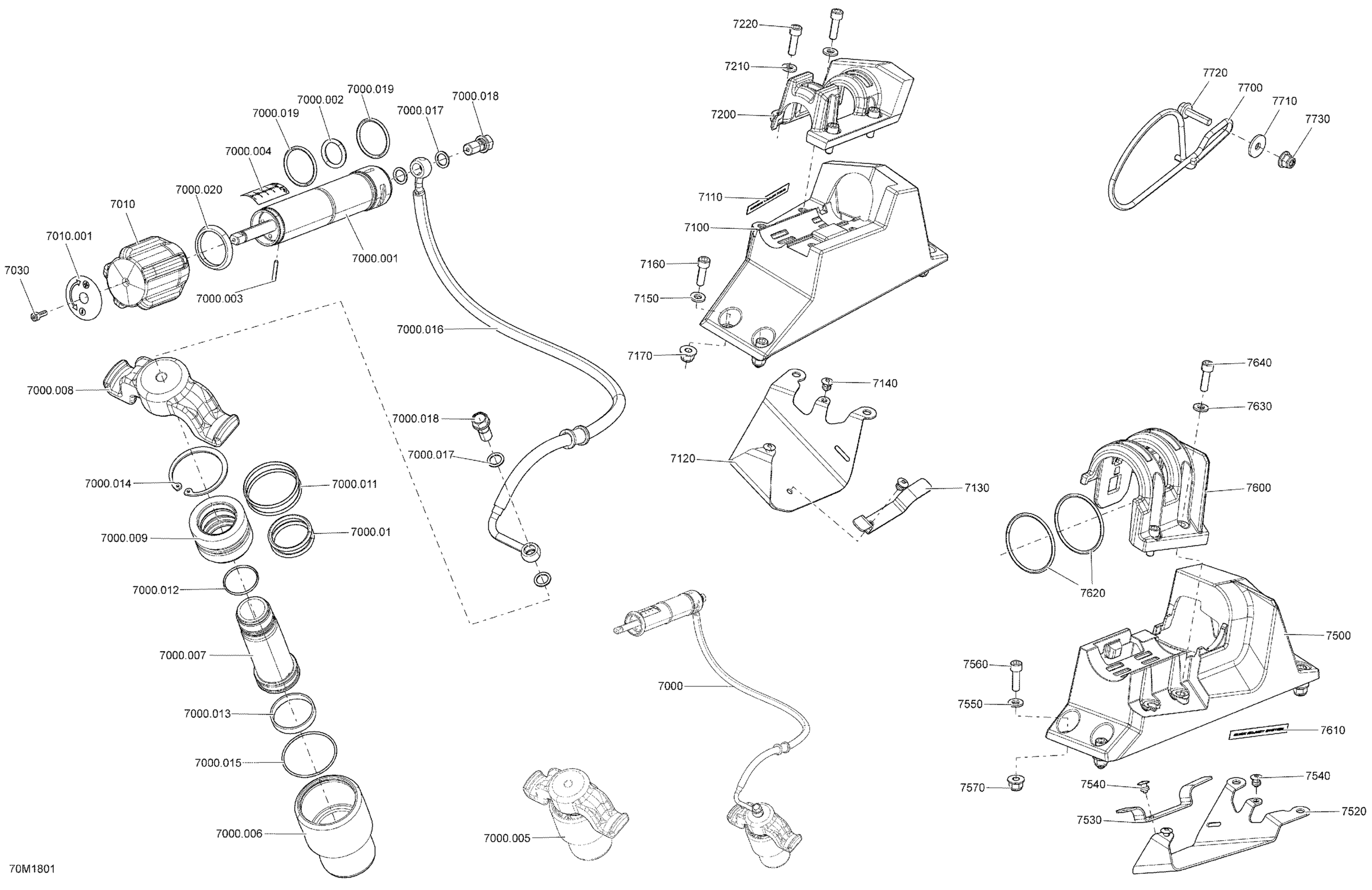

Ski-Doo MXZ 600HO E-TEC, 2018 QAS System Diagram

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

Master Cylinder Ass'y | Included 7000a to 7000a.j

O-Ring

Spring Pin

Adjustment Decal

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

Cylinder

Piston

Spring Bracket

Holder | Included 7000b.d to 7000b.d.e

O-Ring

O-Ring

O-Ring

Wear Ring

Retaining Ring

O-Ring

Connector Hose

Copper Washer

Banjo Bolt

O-Ring

WIPER SEAL - Call your local BRP dealership

Knob Adjuster Ass'y | Included 7010 to 7010b

STICKER KNOB ADJUSTER - Call your local BRP dealership

Socket Screw M4 X 16 (Scotch Grip)

LH Support

Decal

LH Hose Protector

Retaining Plate

Stavex Rivet

Stainless Flat Washer M6

Socket Head Screw M6 X 20

Hex. Flange Elastic Nut M6

LH Half Housing

Stainless Flat Washer M6

Socket Head Screw M6 X 20

RH Support

RH Hose Protector

Retaining Plate

Stavex Rivet

Stainless Flat Washer M6

Socket Head Screw M6 X 20

Hex. Flange Elastic Nut M6

RH Half-Housing

Decal

O-Ring

Stainless Flat Washer M6

Socket Head Screw M6 X 20

Protector

Flat Washer

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6
