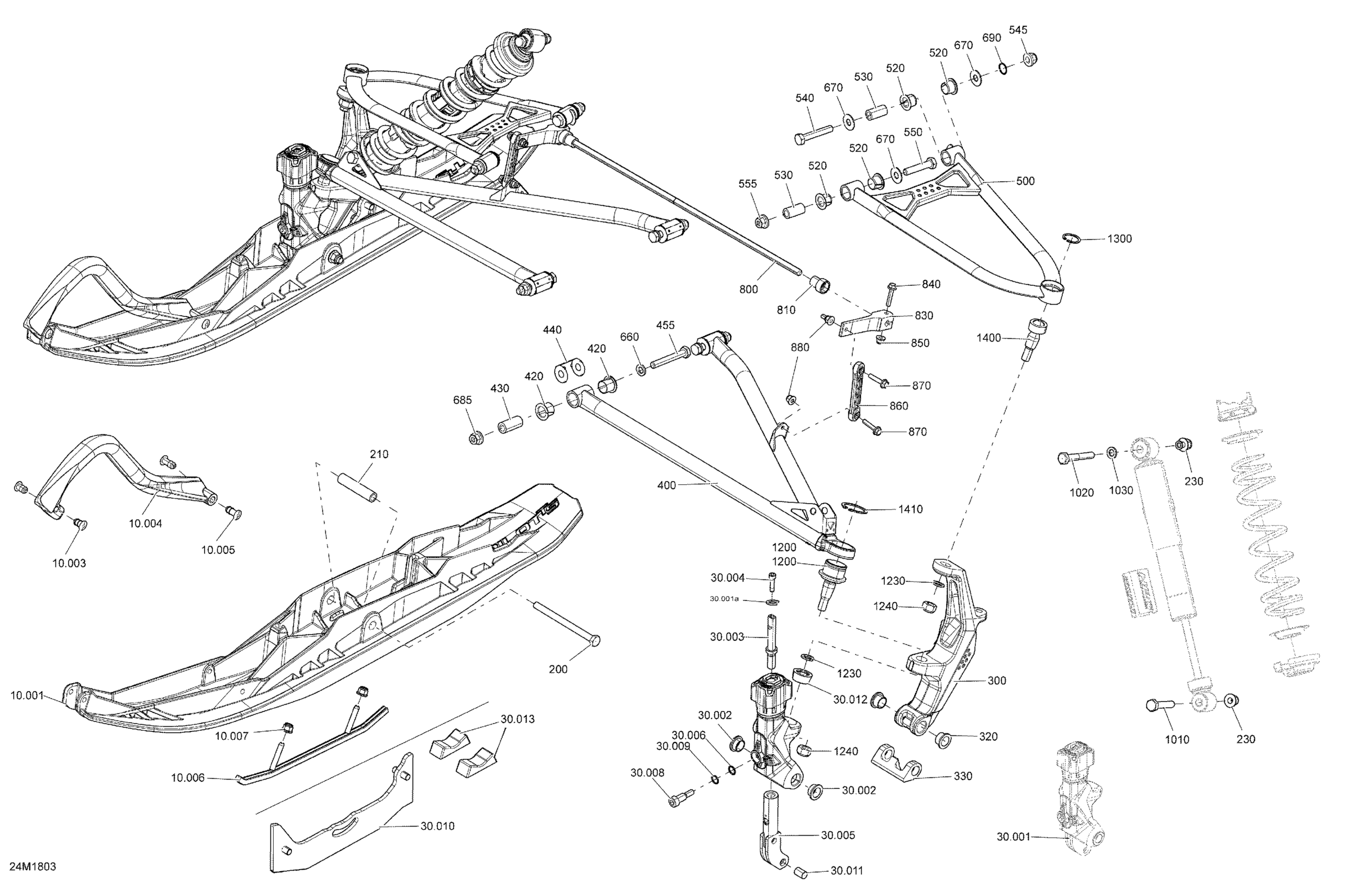

Ski-Doo MXZ 600HO E-TEC, 2018 Front Suspension And Ski MXZ - Package TNT Except 850 E-TEC Diagram

#

Description
Price

10.001

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

10.001

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

10.002

Retainer 17mm long

505071812

$4.30

10.003

Black, Handle

505070963

$34.30

10.004

Retainer 23mm Long

505072133

$4.88

10.005

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10.006

Hex. Flange Elastic Nut M8

233281414

$1.14

30.001

Black LH Support | Includes 30.001 to 30.001a

505073789

$341.76

30,001a

Stainless Flat Washer M6

234061600

$0.25

30.002

Bushing

505073773

$23.10

30.003

Shaft

505073771

$39.52

30.004

Socket Head Screw M6 X 25

250000925

$1.70

30.005

Tip

505073761

$70.12

30.006

Circlip

293370109

$1.81

30.007

Spring

505073785

$8.42

30.008

Screw

505073767

$3.15

30.009

O-Ring

293300013

$5.69

30.01

Carbide Runner Kit, Ajustable TS Ski

860201178

$242.51

30.011

Pin

505073782

$8.66

30.012

Black, Rubber Grommet

505073772

$8.70

30.013

Ski Stopper

505073788

$12.24

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Spacer

506133300

$19.37

300

Black LH Ski Leg

505073807

$229.82

310

Black RH Ski Leg

505073808

$229.82

320

Leg Bushing

505072690

$5.75

330

Leg Stopper

505073779

$12.27

400

RH Lower Arm 42", Black Epoxy

505073426

$184.30

410

LH Lower Arm 42", Black Epoxy

505073420

$184.30

420

Bushing

505072208

$3.04

430

Sleeve

505072209

$13.96

440

Wear Plate

505072634

$4.31

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

500

LH Upper Arm 42", Black Epoxy

505073412

$138.03

510

RH Upper Arm 42", Black Epoxy

505073416

$138.03

520

Bushing

505072250

$3.04

530

Sleeve

505072143

$8.36

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

$2.18

800

Stabilisator

505072602

$70.12

810

Bushing

505072064

$2.15

830

Stabilisator Lever

505072394

$15.64

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$18.63

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1010

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1030

Washer

503189564

$0.70

1200

Ball Joint

505073636

$48.48

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Circlip

293370035

$2.48
