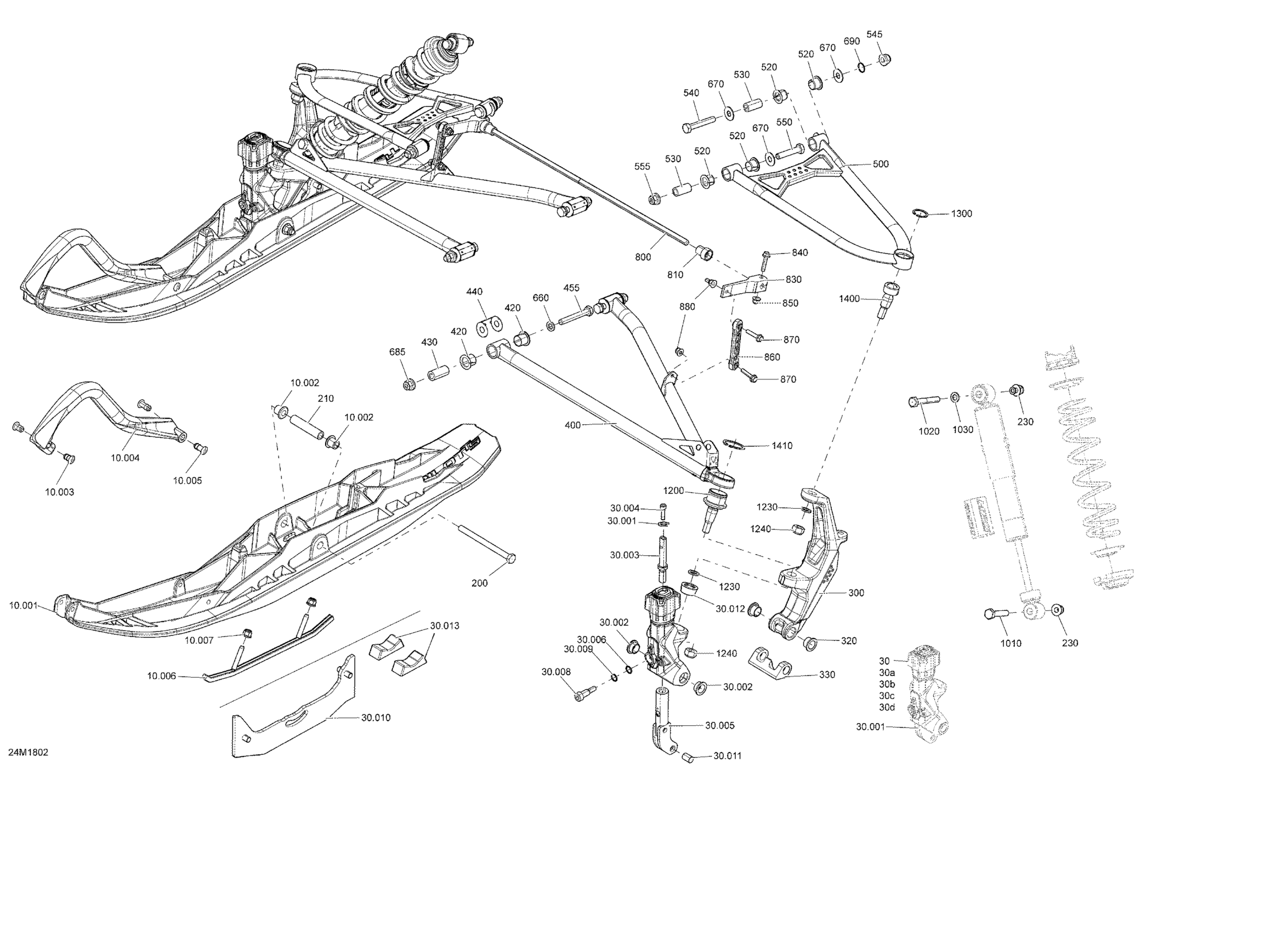

Ski-Doo 2- MXZ 600HO E-TEC, 2018 07- Front Suspension And Ski MXZ Engine 600HO E-TEC, 900 ACE, 1200 4-TEC - Package Blizzard Diagram

#

Description
Price

10.001

Deep Black, RH Ski Pilot TS | Included 20a to 20a.1

505074830

$174.99

10.001

Deep Black, LH Ski Pilot TS | Included 10a to 10a.1

505074829

$169.49

10.002

Ski Bushing

505071781

$16.18

10.003

Retainer 17mm long

505071812

$5.95

10.004

White Handle

505072102

$35.99

10.005

Retainer 23mm Long

505072133

$6.78

30

Knob Adjuster Repair Kit

415130043

$54.99

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Not Available As Spare Part - Friction Washer

Unavailable

30c

Not Available As Spare Part - Friction Washer

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

30.001

Black LH Support | Includes 30.001 to 30.001a

505073789

$379.99

30.001

Black RH Support | Includes 30.001 to 30.001a

505073792

$379.99

30,001a

Stainless Flat Washer M6

234061600

$0.33

30.002

Bushing

505073773

$25.99

30.003

Shaft

505073771

$43.99

30.004

Socket Head Screw M6 X 25

250000925

$2.19

30.005

Tip

505073761

$70.99

30.006

Circlip

293370109

$1.99

30.007

Spring

505073785

$9.69

30.008

Screw

505073767

$3.38

30.009

O-Ring

293300013

$8.18

30.01

Carbide Runner Kit, Ajustable TS Ski

860201178

$154.99

30.011

Pin

505073782

$11.01

30.012

Black, Rubber Grommet

505073772

$11.49

30.013

Ski Stopper

505073788

$15.72

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Spacer

506133300

$23.99

300

SKI-LEG MACHINED - Call your local BRP dealership

505073867

Unavailable

310

SKI LEG - Call your local BRP dealership

505073868

$234.99

320

Leg Bushing

505072690

$12.49

400

RH Lower Arm 42", Black Epoxy

505073426

$204.99

410

LH Lower Arm 42", Black Epoxy

505073420

$204.99

420

Bushing

505072208

$3.28

430

Sleeve

505072209

$17.84

440

Wear Plate

505072634

$6.29

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

500

LH Upper Arm 42", Black Epoxy

505073412

$154.99

510

Black RH Upper Arm, 42"

505073463

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 50

250001022

$1.69

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabilisator

505072602

$68.99

810

Bushing

505072064

$2.32

830

Stabilisator Lever

505072394

$18.73

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Sway Bar Double Joint Link

505072204

$21.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1010

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

1030

Washer

503189564

$0.74

1200

Ball Joint

505073636

$51.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Circlip

293370035

$2.64
