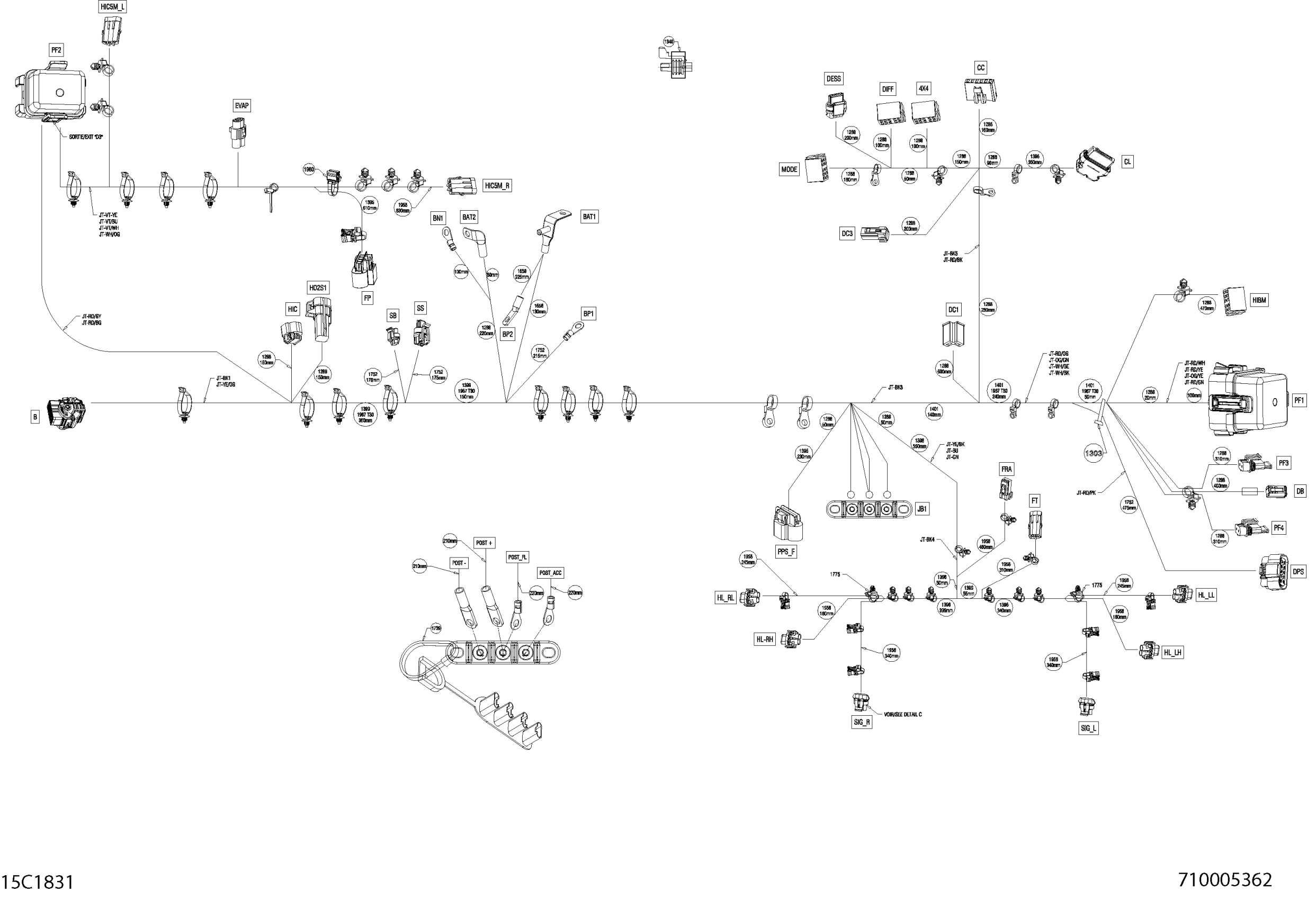

Can-Am Maverick Trail 1000 EFI, 2018 Main Harness - 710005362 - Maverick Trail Diagram

#

Description
Price

300

Main Harness Ass'y

710005362

$1,299.97

4X4

Label

710006075

Unavailable

4X4

Housing

710002000

$6.73

4X4

Female Terminal

710005491

$1.57

4X4

Terminal

710003047

$3.12

B

Cover, 48 positions

710001591

$11.54

B

Female Terminal Housing, 48 Circuits

710001588

$45.49

B

Plug

710001592

$2.06

B

Plug

710001593

$2.06

B

Female Terminal

710001727

$2.93

B

Terminal

710001728

$5.52

B

Female Terminal

710001589

$2.06

BAT2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

BN1

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel

278000992

$2.06

CC

Male Housing, 6 Circuits

710000849

$8.67

CC

Lock

710000848

$3.12

CC

Female Terminal

710000274

$8.72

CC

Terminal | Canada/Usa

710001635

$3.12

CL

Female Housing, 24 Circuits

515175801

$8.73

CL

Retainer Block

515175802

$10.34

CL

Plug

515175812

$1.96

CL

Female Housing

710000399

$13.60

CL

Wire Seal

515175803

$2.76

CL

Female Terminal

710001131

$6.79

D1

Diode

409012700

$10.51

D2

Diode

409012700

$10.51

DB

Female Housing 6 Circuits

710002706

$18.63

DB

Lock

710002705

$4.15

DB

Plug

710005437

$2.99

DB

Female Terminal

710005438

$3.88

DB

Female Terminal

710005439

$4.15

DB

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

DC1

Housing

710005373

$3.93

DC1

Female Terminal

710005952

$1.49

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3_CAP

Male Housing, 2 Circuits

710000667

$7.25

DESS

Housing

710001161

$10.51

DESS

Lock

710001162

$3.18

DESS

Cap

710001225

$8.34

DESS

Wire Seal

710001163

$5.85

DESS

Female Terminal

710001164

$6.79

DIFF

Label

710006076

Unavailable

DIFF

Housing Connector

710002003

$11.81

DIFF

Female Terminal

710005491

$1.57

DIFF

Terminal

710003047

$3.12

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

EVAP

Wire Seal

710000402

$4.28

EVAP

Female Terminal

409012100

$4.28

FL-2

Fuse Link 41-50AMP

715002538

$20.12

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.79

FP

Terminal

710001873

$2.19

FRA

Female Housing, 2 Circuits

515175658

$14.90

FRA

Female Terminal

710003896

$1.70

FT

Clip

710000992

$3.88

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

H02S1

Clip Bracket Connector (edge)

409210100

$1.94

H02S1

Housing

710002466

$2.90

H02S1

Lock

710002469

$1.93

H02S1

Seal

278001482

$2.93

H02S1

Gold Terminal

710002597

$2.90

HIBM

Label

710006074

Unavailable

HIBM

Housing Connector

710002001

$11.81

HIBM

Terminal

710003047

$3.12

HIBM

Terminal

710003048

$4.00

HIBM

Female Terminal

710005491

$1.57

HIC

Housing

710001928

$14.52

HIC

Lock

710001222

$1.93

HIC

Cap

710001225

$8.34

HIC

Seal Wire

710001332

$3.12

HIC

Seal

710001233

$2.93

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HIC5M_L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

HIC5M_L

Wire Seal

278001065

$5.85

HIC5M_L

Male Terminal | XT Models

278000222

$2.93

HIC5M_R

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

HIC5M_R

Wire Seal

278001065

$5.85

HIC5M_R

Male Terminal | XT Models

278000222

$2.93

HL_LH

Housing

710002578

$3.12

HL_LH

Lock

710002584

$3.93

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$0.99

HL_LL

Housing

710002578

$3.12

HL_LL

Lock

710002584

$3.93

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$0.99

HL_RH

Housing

710002578

$3.12

HL_RH

Lock

710002584

$3.93

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$0.99

HL_RL

Housing

710002578

$3.12

HL_RL

Lock

710002584

$3.93

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$0.99

JB-1

Cover

710004826

$19.37

JB-1

3-Positions Pole

710004825

$16.39

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.03

MODE

Pictogram Label

710006077

Unavailable

MODE

Housing Connector

710002002

$11.81

MODE

Terminal

710003047

$3.12

MODE

Female Terminal

710005491

$1.57

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Box Decal

710005773

$12.63

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Housing Support

710005671

Unavailable

PF1

Wire Seal

278000216

$2.93

PF1

Seal

293300198

$1.78

PF1

Screw K40 X 10

241140060

$1.43

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

710000048

$5.85

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

515177177

$4.96

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F11

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.31

PF1-R3

Relay, 30 AMP

515176774

$18.63

PF1-R8

Relay

715900824

$18.63

PF1-R9

Relay, 50 AMP

515176775

$13.45

PF1-SP1

Little Fuse, 20 Amperes

710000746

$7.78

PF2

Fuse Box Cover

515177451

$12.49

PF2

Logo Fuse Relay

710006106

$59.67

PF2

Case Ass'y with seal, 24 positions

278002824

$33.55

PF2

Wire Seal

278000216

$2.93

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Female Terminal

710000918

$5.85

PF2

Female Terminal

278002578

$0.99

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F9

Fuse, 25 Amps

710002590

$17.88

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R2

Relay

715900824

$18.63

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000113

$5.85

PF4

Female Terminal

710000357

$5.85

PF4-F21

Fuse

710001613

$8.31

POST_ACC

Open Barrel

278000992

$2.06

POST_FL

Open Barrel

278000992

$2.06

PPS_F

Housing

710001232

$13.39

PPS_F

Lock

710001222

$1.93

PPS_F

Seal

710001233

$2.93

PPS_F

Terminal

710001229

$2.93

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SIG_L

Female Housing

710005321

$4.19

SIG_L

Seal

278001482

$2.93

SIG_L

Female Terminal

710001134

$5.85

SIG_R

Female Housing

710005321

$4.19

SIG_R

Seal

278001482

$2.93

SIG_R

Female Terminal

710001134

$5.85

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Seal Wire

710001153

$2.06

SS

Female Terminal

710001164

$6.79
