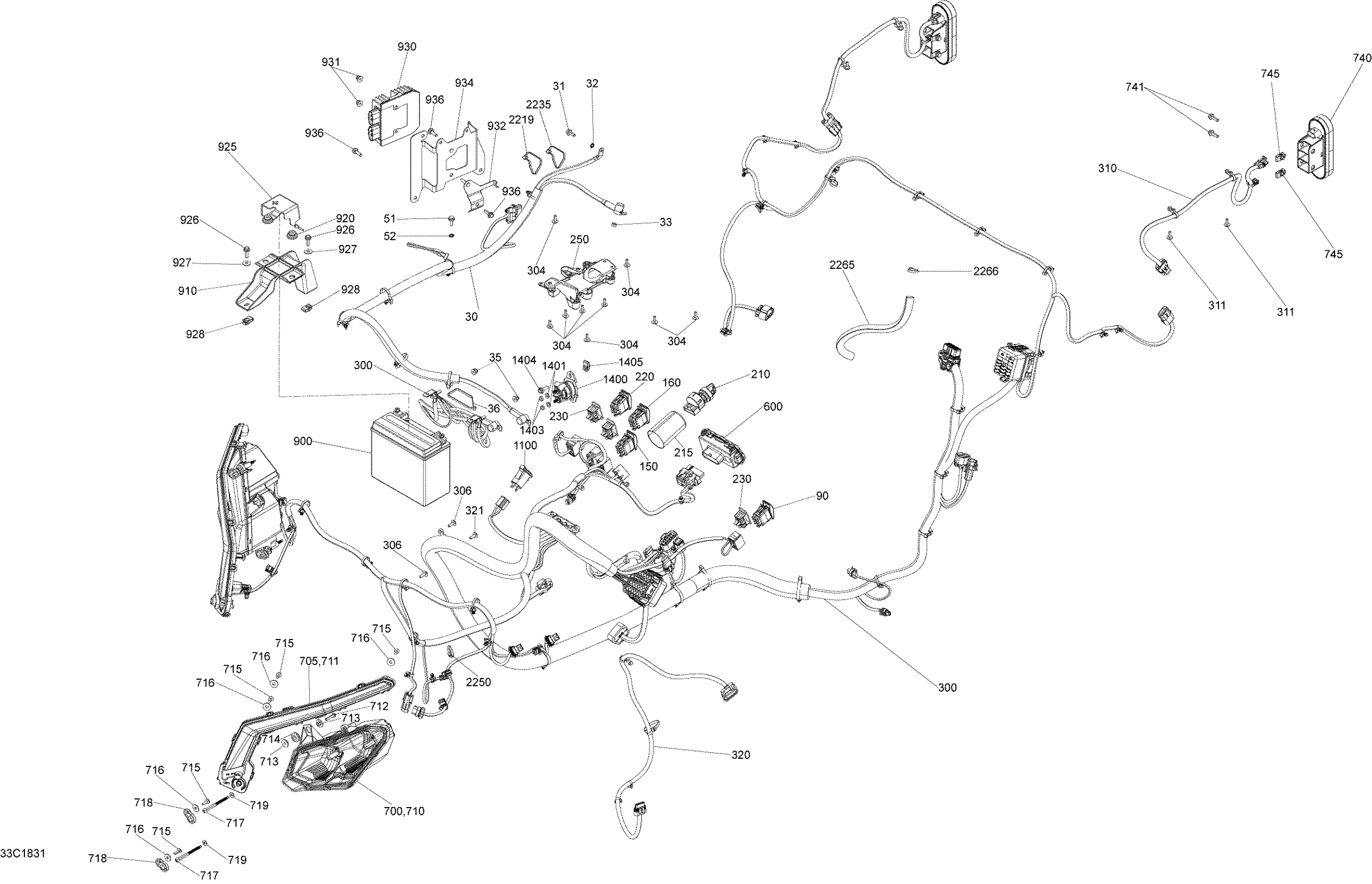

Can-Am Maverick Trail 1000 EFI, 2018 Electrical Maverick Trail Diagram

#

Description
Price

30

Negative/starter

710005361

$92.28

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

32

External Serrated Lock Washer 6 mm

234461608

$0.92

33

Elastic Stop Nut M6

232561414

$1.55

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Tie Wrap 368 mm

293750008

$0.85

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

52

External Serrated Lock Washer 6 mm

234461608

$0.92

90

Light Switch

710004492

$46.12

150

2 X 4 Switch

710004814

$32.28

160

Differential Lock Switch

710005470

$46.12

210

Inter Allumage *Ignition

710007870

$55.35

210a

Key, Groove on Right Side

715900029

$21.42

210a

Key, Groove on Left Side

715900019

$21.42

215

Key Switch Protector

710005739

$2.69

220

Driving Mode Switch

710005909

$36.89

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

250

Housing Support

710005672

$8.05

300

Main Harness Ass'y

710005362

$1,384.58

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

310

Rear Harness

710005363

$41.51

311

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

600

Speedometer | Includes 600 to 600b

710005553

$323.05

700>700a

LH Headlamp | Includes 700 TO 700a

710006422

$189.20

700a

Bulb 12V 55W

715900141

$41.51

705

LH Fascia Trim

705011485

$40.74

710

RH Headlamp

710006423

$189.20

710>710a

LH Signature Beam

710004994

$161.51

710a

Bulb 12V 55W

715900141

$41.51

711

RH Fascia Trim

705011486

$40.74

711

RH Signature Beam

710004995

$161.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Torx Screw K50 X 16

250000720

$1.39

716

Stainless Steel Flat Washer

234062670

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

740

Tail Light

710004497

$110.74

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

910

Fixation Plate

710005673

$10.15

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710005930

$8.46

926

Hex. Flange Screw M6 X 20

207662054

$0.83

927

Stainless Steel Flat Washer

234062670

$1.74

928

Panel Nut M6 X 1.0

250100198

$1.73

930

Voltage Regulator

710005842

$159.87

931

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

932

Voltage Regulator Attach

710006120

$8.09

934

Voltage Regulator Support

710006119

$11.15

936

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1100

12V Power Outlet

710005374

$27.27

1400

Starter Relay

278003012

$35.07

1401

Lock Washer Helical M6

234161601

$0.92

1403

Hex. Nut M6

232061600

$0.91

1404

Hex. Flange Screw M6 X 20

207662054

$0.83

1405

Panel Nut M6 X 1.0

250100198

$1.73

2219

Tie Wrap 368 mm

293750008

$0.85

2235

Tie Wrap 368 mm

293750008

$0.85

2250

Tie-Rap 180 mm

414115200

$0.09

2265

Tubing 16 Mm 1000Mm Long

219704408

$6.23

2266

Tie-Rap 180 mm

414115200

$0.09
