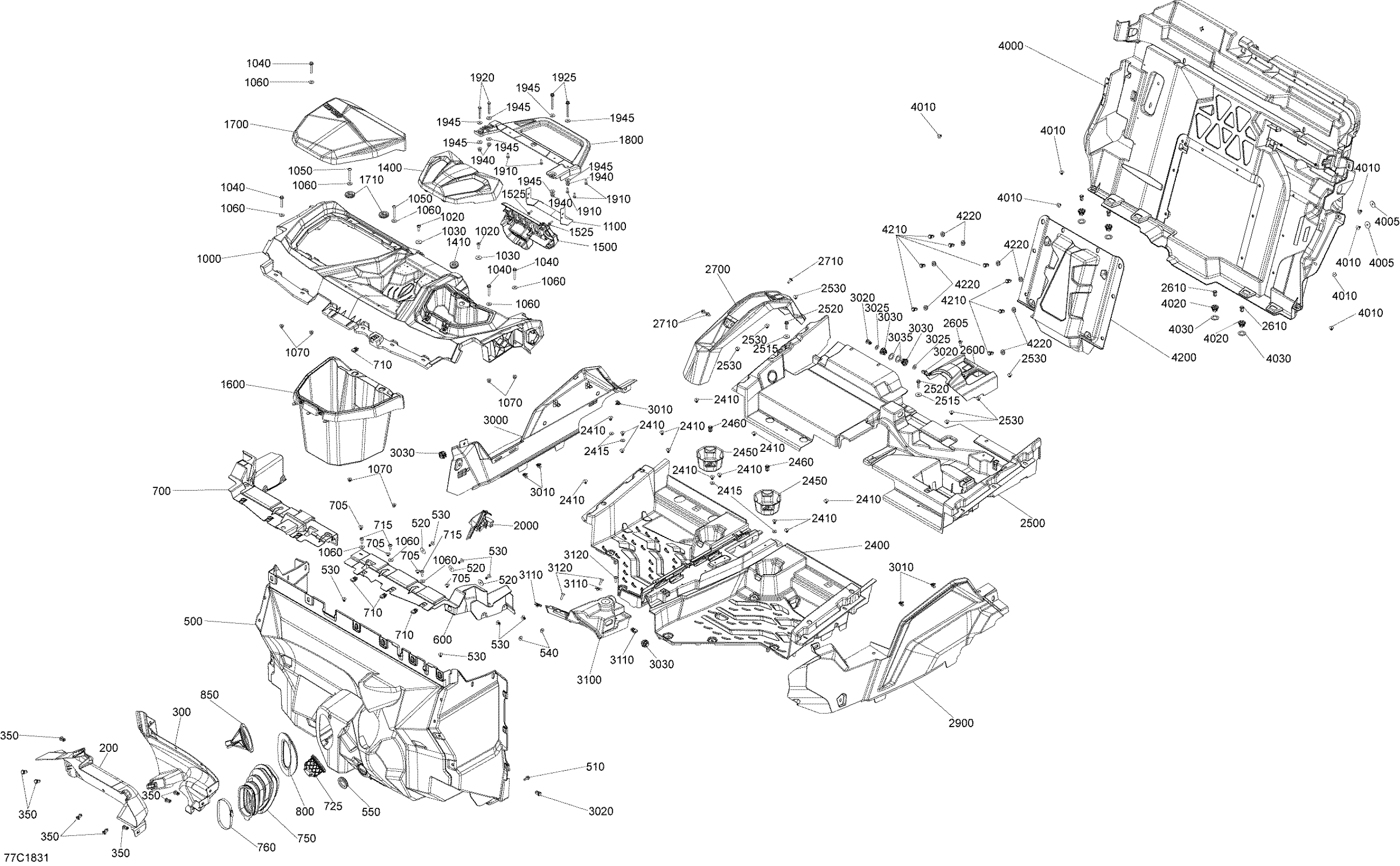

Can-Am Maverick Trail 1000 EFI, 2018 Cab Interior Maverick Trail Diagram

#

Description
Price

200

Front Upper Heat Deflector

705012497

$15.64

300

Front Lower Heat Deflector

705012498

$13.57

350

Tuflok Plastic Rivet

293150230

$1.39

500

Kit Lower Front Bulkhead

703501096

$614.90

510

Torx Truss Screw M6 X 16

250000721

$1.60

520

Flat Washer M6 X 25

250200044

$1.97

530

Pop Rivet 3/16"

293150100

$1.04

540

Washer M5

250200025

$0.70

550

Rubber Cover

293250242

$5.18

600

LH Upper Front Bulkhead

707900513

$15.64

700

RH Upper Front Bulkhead

707900514

$15.64

705

Pop Rivet 3/16"

293150100

$1.04

710

Panel Nut M6 X 1.0

250100198

$1.99

715

Torx Screw M6 X 20

250000722

$1.54

725

Steering Column Deflector

707900511

$7.64

750

Break Pedal Deflector

707900515

$17.13

760

Norma Gear Clamp

514052983

$14.90

800

Gas Pedal Deflector

707900516

$10.67

850

Front Rubber Deflector

707900517

$9.85

1000

Dashboard Kit

715008526

$182.81

1020

Torx Screw M6 X 20

250000722

$1.54

1030

Flat Washer M6.6 X 22

250200162

$2.19

1040

Hex. Flange Screw M6 X 40

207664044

$2.12

1050

Torx Truss M6 X 50

250000868

$2.00

1060

Stainless Steel Flat Washer

234062670

$2.00

1070

Hex. Flange Elastic Nut M6

233261466

$1.91

1100

Dash Support

707900941

$7.31

1400

Storage Cover

707900522

$12.46

1410

Grommet

517303756

$3.61

1500

Switch Support

707900523

$15.64

1525

Torx Screw K50 X 16

250000720

$1.60

1600

Glove Box

715005011

$51.46

1700

Glove Box Cover | Except North America

715005006

$48.48

1700

Glove Box Cover

715005009

$48.48

1710

Oblong Grommet

707900663

$2.06

1800

Passenger Handle Bar Kit

707900559

$32.06

1910

Torx Screw K50 X 16

250000720

$1.60

1920

Hex. Screw M6 X 45

207064544

$1.96

1925

Hex. Flange Screw M6 X 60

250000778

$4.15

1940

Hex. Flange Elastic Nut M6

233261466

$1.91

1945

Stainless Steel Flat Washer

234062670

$2.00

2000

Front Cage Trim Kit

707900531

$26.09

2400

Front Floor

707900533

$172.36

2410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2415

Washer M5

250200025

$0.70

2450

Cup Holder

707900532

$7.81

2460

Tuflok Plastic Rivet

293150230

$1.39

2500

Rear Floor

707900534

$75.34

2515

Flat Washer M6.6 X 22

250200162

$2.19

2520

Hex. Flange Screw M6 X 25

207662554

$1.43

2530

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2600

Belt Cover

707900538

$28.33

2605

Torx Truss Screw M6 X 16

250000721

$1.60

2610

Tuflok Plastic Rivet

293150230

$1.39

2700

Central Console

707900537

$23.85

2710

Torx Truss Screw M6 X 16

250000721

$1.60

2900

LH Lateral Console Panel

715005013

$108.18

3000

RH Lateral Console Panel

707901077

$62.66

3010

Clip

517306478

$1.03

3020

Tuflok Plastic Rivet

293150230

$1.39

3025

Washer

503192494

$3.01

3030

Insert

707900133

$2.89

3035

Washer

503189273

$3.10

3100

Passenger Footrest

707900545

$38.03

3110

Panel Nut M6 X 1.0

250100198

$1.99

3120

Torx Screw M6 X 20

250000722

$1.54

4000

Rear Bulkhead

707900550

$126.84

4005

Flat Washer M6 X 25

250200044

$1.97

4010

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4020

Insert

707900133

$2.89

4030

Washer

503189273

$3.10

4200

Maintenance Cover

707900999

$35.79

4210

Tuflok Plastic Rivet

293150230

$1.39

4220

Washer

503192494

$3.01
