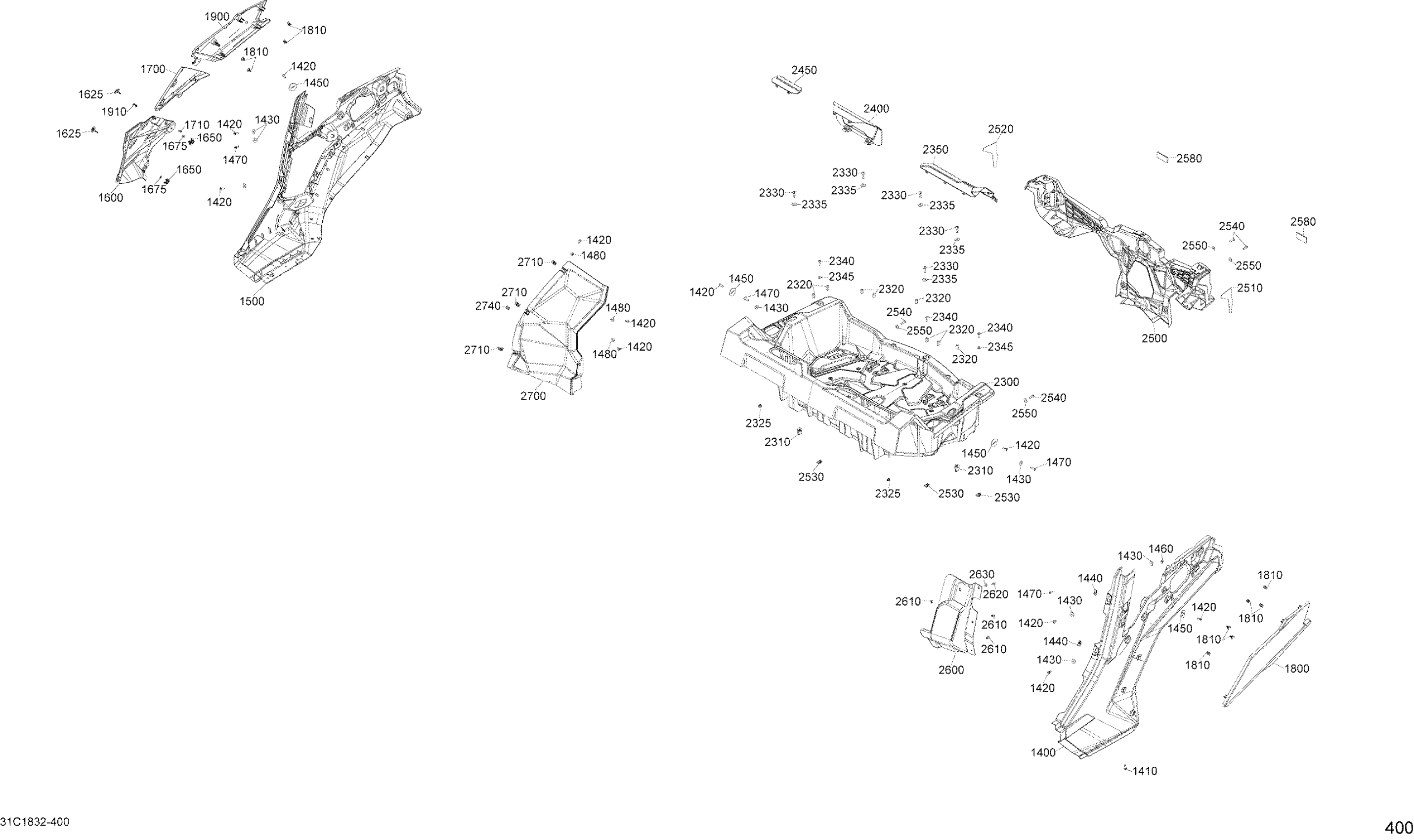

Can-Am Maverick Trail 1000 EFI, 2018 BODY, Rear Maverick Trail - 1000 EFI Diagram

#

Description
Price

1400

LH Rear Panel

705011335

$184.30

1410

Hex. Flange Screw M6 X 20

207662054

$0.96

1420

Torx Screw M6 X 20

250000722

$1.54

1430

Flat Washer M6.6 X 22

250200162

$2.19

1440

Panel Nut M6 X 1.0

250100198

$1.99

1450

Support Plate

705003841

$0.91

1460

Hex. Elastic Flange Nut M6

233161464

$0.96

1470

Torx Truss Screw M6 X 25

250000807

$2.00

1480

Stainless Steel Flat Washer

234062670

$2.00

1500

RH Rear Panel

705011336

$184.30

1600

Air Filter Acces Door

705011338

$67.88

1625

Quarter Turn

708400278

$4.15

1650

Clip

708400285

$3.90

1675

Washer

708400286

$3.90

1700

White, Acces Panel Trim | Package Base

705012621

$68.63

1700

Red, Acces Panel Trim | DPS, Red Model

705016392

$97.73

1700

Yellow, Acces Panel Trim | Package DPS

705012624

$98.48

1700

Camo, Acces Panel Trim | DPS, Camo Model

705012625

$98.48

1710

Torx Screw K50 X 16

250000720

$1.60

1800

White, LH Rear Cargo Trim | Package Base

705011424

$98.48

1800

Red, LH Rear Cargo Trim | DPS, Red Model

705012427

$167.13

1800

Yellow, LH Rear Cargo Trim | Package DPS

705012429

$167.13

1800

Camo, LH Rear Cargo Trim | DPS, Camo Model

705012431

$167.13

1810

Clip

517306478

$1.03

1900

White, RH Rear Cargo Trim | Package Base

705011425

$98.48

1900

Red, RH Rear Cargo Trim | DPS, Red Model

705012428

$167.13

1900

Yellow, RH Rear Cargo Trim | Package DPS

705012430

$167.13

1900

Break Up Country, RH Open Carrier Trim | DPS, Camo Model

705015598

$167.13

1910

Tuflok Plastic Rivet

293150230

$1.39

2300

Rear Box

705016885

$354.45

2310

Panel Nut M6 X 1.0

250100224

$1.96

2320

Hex. Coupling Nut M6

250100207

$1.88

2325

Hex. Flange Elastic Nut M6

233261466

$1.91

2330

Hex Torx Truss M8 X30

250000745

$2.96

2335

Flat Washer 8 mm, Stainless

234082600

$2.27

2340

Torx Truss Screw M6 X 25

250000807

$2.00

2345

Stainless Steel Flat Washer

234062670

$2.00

2350

CVT Air Inlet Cover

705011339

$15.64

2400

Liquid Acces Cover

705011341

Unavailable

2450

Air Intake Cover

705011340

$12.73

2500

Rear Fascia

705011426

$152.96

2510

LH Rear Reflector

704906815

$10.67

2520

RH Rear Reflector

704906816

$10.82

2530

Panel Nut M6 X 1.0

250100198

$1.99

2540

Torx Truss Screw M6 X 25

250000807

$2.00

2550

Stainless Steel Flat Washer

234062670

$2.00

2580

Red Reflector

520001820

$17.13

2600

LH Rear Wheel Arch Protector

705014231

$38.78

2610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2620

Torx Screw K50 X 16

250000720

$1.60

2630

Washer M5

250200025

$0.70

2700

RH Rear Inner Fender

705011513

$38.78

2710

Panel Nut M6 X 1.0

250100198

$1.99

2740

Tuflok Plastic Rivet

293150230

$1.39
