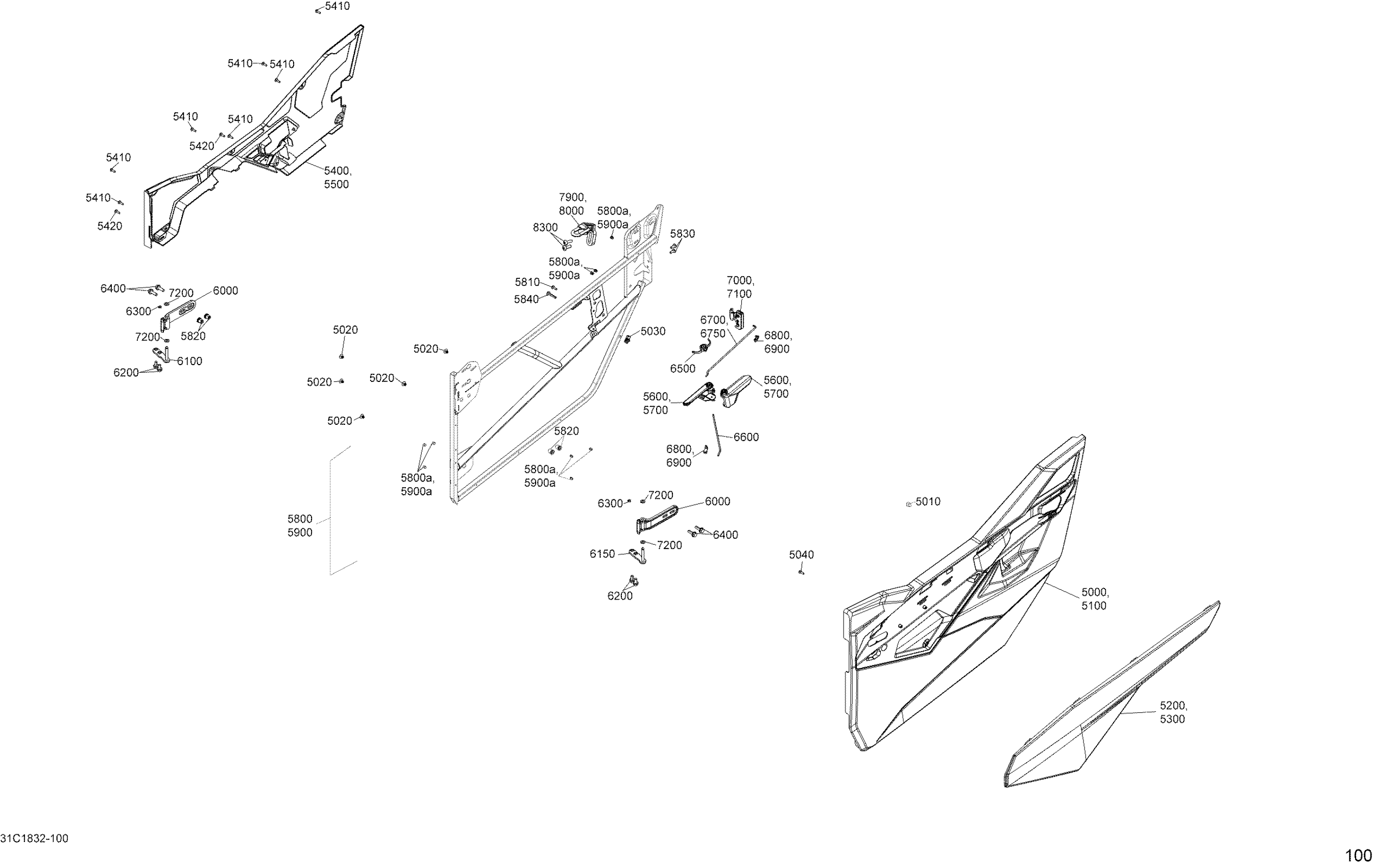

Can-Am Maverick Trail 1000 EFI, 2018 BODY, Doors Maverick Trail - 1000 EFI Diagram

#

Description
Price

5000

LH Exterior Door Panel

705011479

$102.21

5010

Rubber Bumper

293830005

$6.12

5020

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

5030

Panel Nut M6 X 1.0

250100198

$1.99

5040

Torx Screw K50 X 16

250000720

$1.60

5100

RH Exterior Door Panel

705011480

$102.21

5200

White, LH Door Trim Panel | Package Base

705011481

$113.40

5200

Red, LH Door Trim Panel | DPS, Red Model

705012419

$170.12

5200

Yellow, LH Door Trim Panel | DPS, Yellow Model

705012421

$170.12

5200

Camo, LH Door Trim Panel | DPS, Camo Model

705012423

$170.12

5300

White, RH Door Trim Panel | Package Base

705011482

$113.40

5300

Red, RH Door Trim Panel | DPS, Red Model

705012420

$170.12

5300

Yellow, RH Door Trim Panel | DPS, Yellow Model

705012422

$170.12

5300

Camo, RH Door Trim Panel | DPS, Camo Model

705012424

$191.76

5400

LH Inner Door Panel Ass'y

715005003

$98.48

5410

Torx Screw K50 X 16

250000720

$1.60

5420

Torx Screw K50 X 16

250000720

$1.60

5500

RH Door Panel Ass'y

715006765

$98.48

5600

LH Opening Handle

705011585

$15.64

5700

RH Opening Handle

705011586

$15.64

5800

LH Door Frame | Includes 5800 to 5800a10

705800303

$136.54

5800a

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

5810

Torx Screw K50 X 16

250000720

$1.60

5820

Insert Half Hex Body M8 x 1.25

293450307

$1.97

5830

Torx Truss Screw M6 X 16

250000721

$1.60

5840

Torx Screw M6 X 35

250000541

$2.00

5900

RH Door Frame | Includes 5900 to 5900a10

705800304

$136.54

5900a

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

6000

Hinge

705013228

$23.85

6100

Lower Hinge Ajustement

705011629

$11.51

6150

Upper Hinge Ajustement

705012506

$11.51

6200

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

6300

Circlip | RS STD

705601030

$4.00

6400

Hex. Flange Screw, Scotch Grip

207582534

$1.79

6500

Handle Spring

705011630

$9.48

6600

Handle Axle

705206132

$10.55

6700

LH Locking Rod

705206133

$3.81

6750

RH Locking Rod

705206134

$3.81

6800

LH Tie Rod Clip

708300182

$2.13

6900

RH Tie Rod Clip

708300202

$2.13

7000

LH Latch

705013095

$53.70

7100

RH Latch

705013096

$53.70

7200

Flat Washer 8 mm, Nylon

234081100

$1.15

7900

LH Stricker Support

705207027

$23.85

8000

RH Stricker Support

705207028

$23.85

8300

Hex Torx Truss M8 X30

250000745

$2.96
