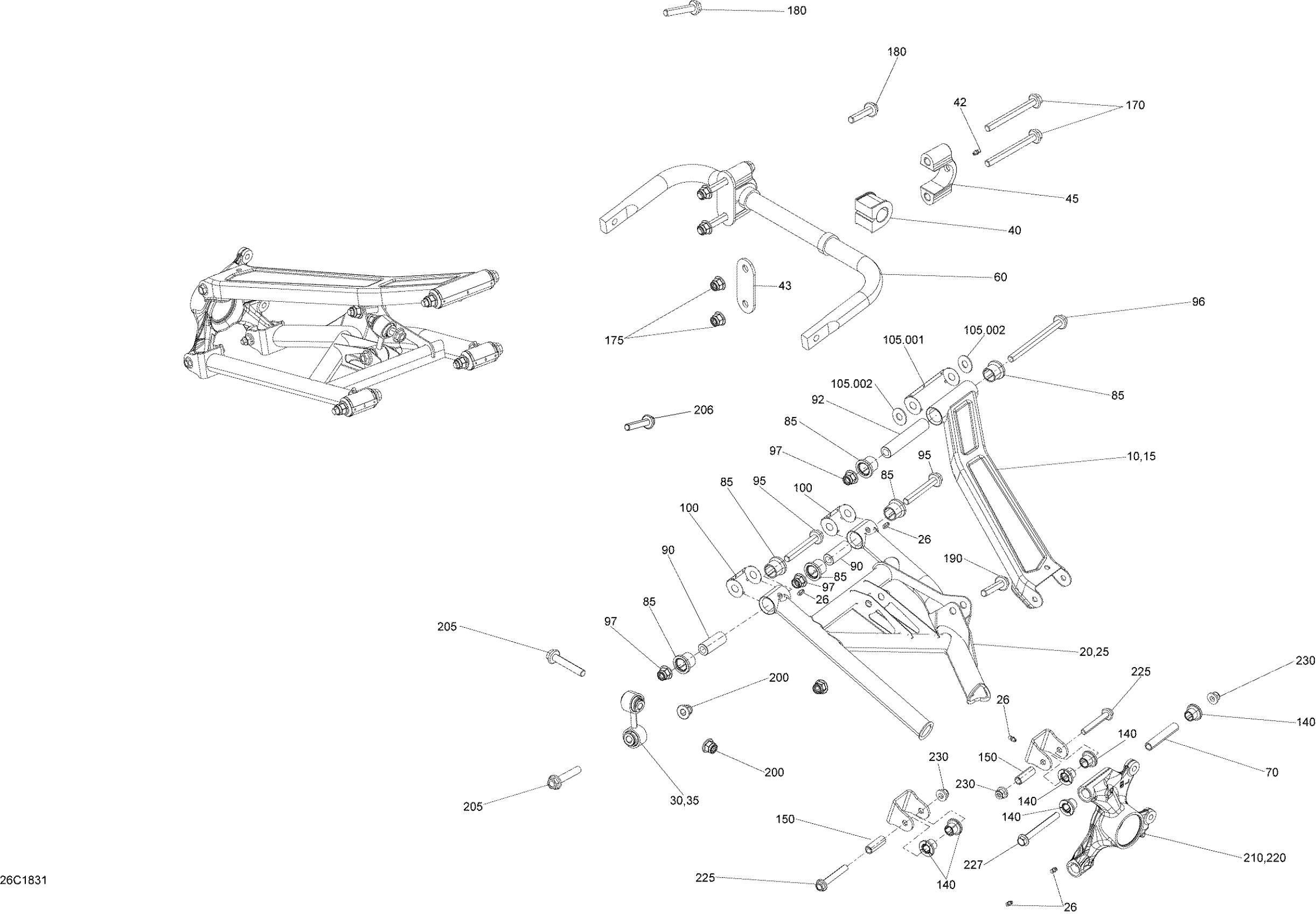

Can-Am Maverick Trail 1000 EFI, 2018 Rear Suspension Maverick Trail Diagram

#

Description
Price

10

LH Upper Rear Suspension Arm

706002696

$166.12

15

RH Upper Rear Suspension Arm

706002697

$166.12

20

LH Lower Suspension Arm

706003891

$166.12

25

RH Lower Suspension Arm

706003317

$166.12

26

Grease Fitting

408200700

$2.80

30

Sway Bar Double Link

706003004

$110.74

35

Sway Bar Double Link

706003003

$110.74

40

Stabilizer Bar Bushing

706004266

$9.22

42

Grease Fitting

408200700

$2.80

43

Plate Support

706002977

$4.60

45

Clamp

706002970

$15.35

60

Sway Bar Ass'y

706002716

$119.97

70

Upper Bushing

706202197

$13.83

85

Suspension Arm Bushing

706204409

$8.29

90

Interior Bushing

706202257

$9.22

92

Inner Sleeve M12

706202863

$19.20

95

Flange Screw M12 X 85

250000859

$3.95

96

Flange Screw M12 X 145

250000861

$5.47

97

Elastic Flange Nut M12

233221466

$2.15

100

Wear Plate

706202300

$2.31

105

Wear Plate

706203326

$6.75

140

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

150

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

170

Screw Flange M12 X 115

250000860

$5.47

175

Elastic Flange Nut M12

233221466

$2.15

180

Flange Screw M12 X 60

250000857

$6.08

190

Flange Screw M12 X 60

250000857

$6.08

200

Elastic Flange Nut M12

233221466

$2.15

205

Hex. Flange Screw M12 X 70

250000858

$3.11

206

Flange Screw M12 X 60

250000857

$6.08

210

Rear Left Machined Knuckle

706002809

$203.05

220

Rear Right Machined Knuckle

706002811

$203.05

225

Hex. Flange Screw M10 X 70

207607046

$2.91

227

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

230

Hex. Flange Elastic Nut M10

233201436

$1.74
