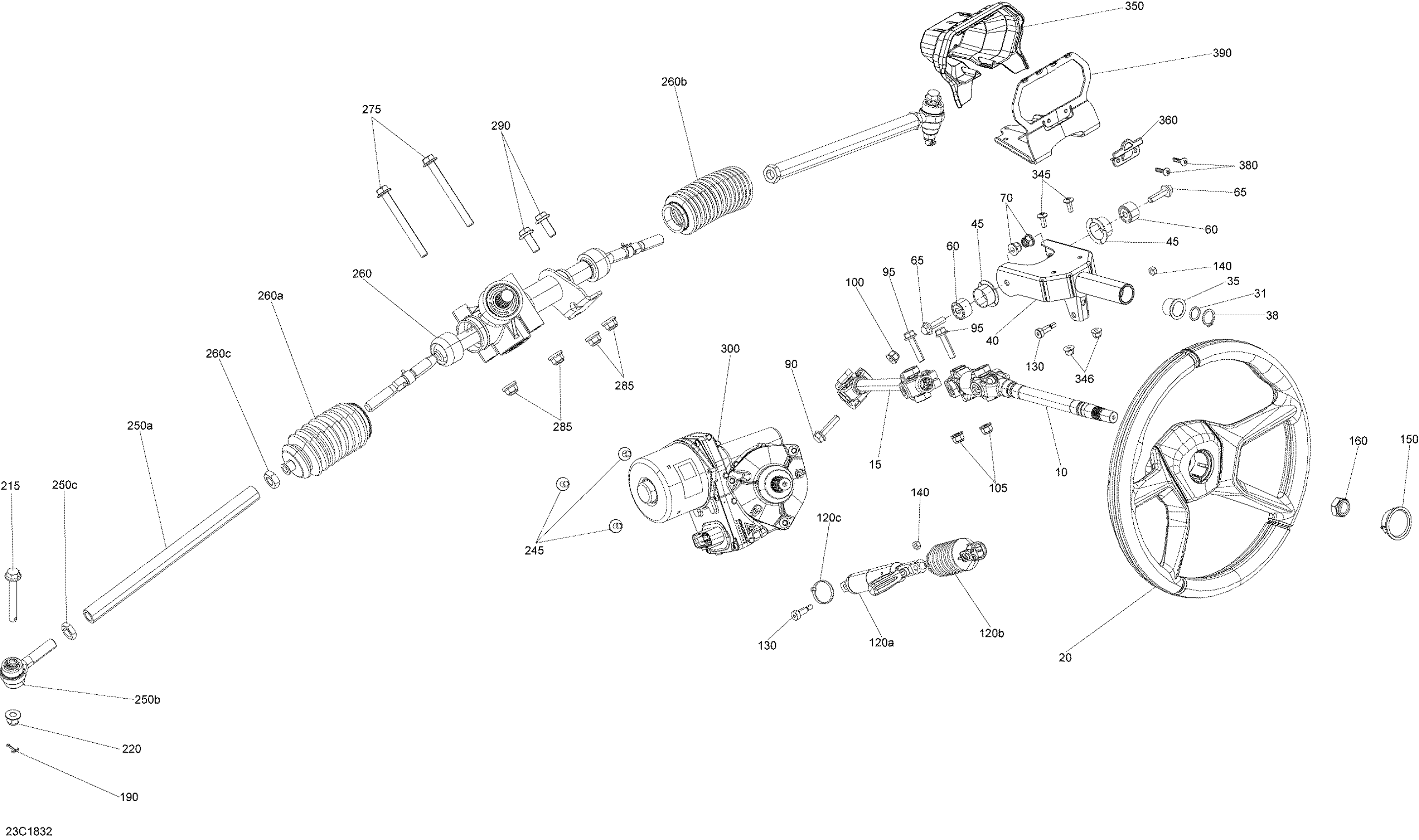

Can-Am Maverick Trail 1000 EFI, 2018 Steering Maverick Trail - Package DPS Diagram

Steering Column Ass'y This part replaces 709402473.

709402618

$175.35

Lower DPS Shaft Ass'y

709402650

$175.35

Steering Wheel

709401966

$507.66

O-Ring

293300144

$3.98

Steering Bushing

709402725

$3.17

Circlip

293370110

$2.31

Steering Support

709401602

$78.43

Bushing

709401603

$6.57

Bushing

709401604

$4.52

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 35

250001021

$3.61

Hex. Flange Screw M8 X 35

250001021

$3.61

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Elastic Flange Nut M8

233281416

$1.25

Adjustment Cylinder

709402506

$69.20

Boot Tube Side

709401232

$13.62

Tie-Rap 180 mm

414115200

$0.09

Socket Head Screw M8 X 16

250000669

$2.61

Elastic Stop Nut M6

232561414

$1.55

Steering Cap

709401514

$15.35

Elastic Lock Nut M16

232511414

$1.64

Cotter Pin

211400017

$0.25

Screw Hex Cap M10 X 75

250000814

$3.95

Hex. Flange Elastic Nut M10

233201414

$1.26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Connection Rod

709401990

$20.74

Ball Joint

709401991

$50.34

Steering Rod Nut

715900238

$2.31

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$452.28

Boot Kit, Pinion Side

715900235

$55.35

Boot Kit, Tube Side

715900236

$55.35

Steering Rod Nut

715900238

$2.31

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 25

207602546

$1.74

Power Steering Ass'y

709402727

Unavailable

Torx Screw M6 X 16

250000755

$0.72

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Speedometer Cover

709400514

$15.35

Latch Indicator Cover

709400573

$10.98

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Cluster Support

709401994

$20.74
