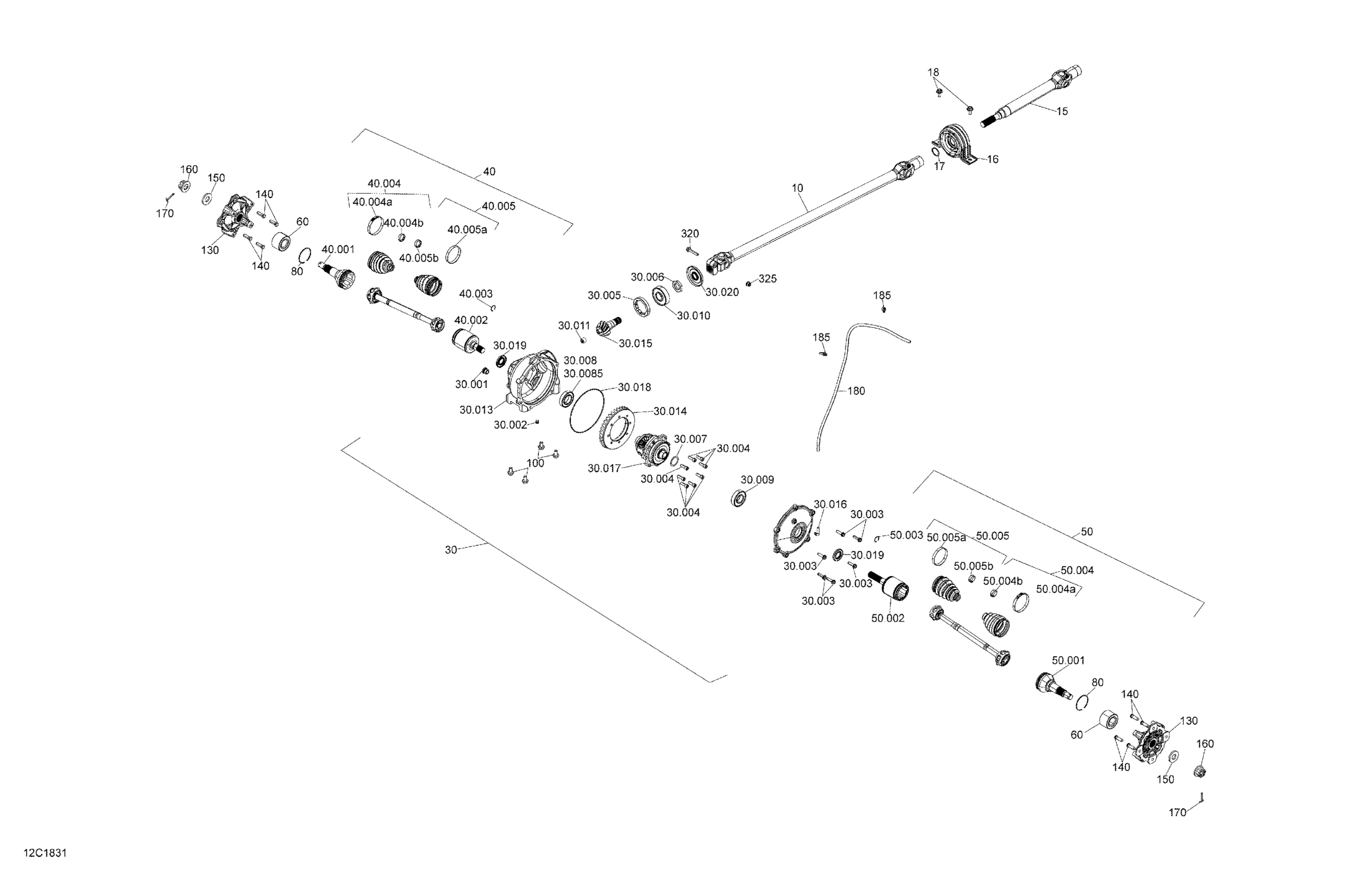

Can-Am Maverick Trail 1000 EFI, 2018 Front Drive - Maverick Trail Diagram

#

Description
Price

10>10c

Drive Axle Ass'y | Includes 10 to 10c

705403289

$244.58

10a

Fixed Yoke

715900400

$59.97

10b

Yoke

715900401

$36.89

10c

J-Joint Cross Kit

715900402

$87.66

15>15b

Drive Axle Ass'y | Includes 15 to 15b

705403290

$244.58

15a

Yoke

715900401

$36.89

15b

J-Joint Cross Kit

715900402

$87.66

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 20

207502046

$1.74

30

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,338.43

30

Front Differential Ass'y | Model With DPS

705402763

$1,661.51

30.001

Fill Level Plug

705501889

$18.43

30.002

Drain Plug | After May 30, 2014

705501885

$12.68

30.003

Bolt

705501886

$6.75

30.004

Screw

705402375

$11.83

30.005

Nut M75 X 1.5

705401819

$23.05

30.006

Nut M27 X 1.5

705401820

$23.05

30.007

Shim | 4X4

705401604

$55.35

30.008

Ball Bearing

705402847

$46.12

30.0085

Ball Bearing

705402847

$46.12

30.009

Ball Bearing | 4X4

705401606

$49.20

30.01

Ball Bearing

705401821

$30.39

30.011

Ball Bearing | After May 30, 2014

705402848

$46.12

30.013

Front Cover

705401667

$152.28

30.014

Ring Gear 36 Teeth

705402788

$359.97

30.015

Pinion 10 th.

705401933

$179.97

30.016

Vent Valve

705401935

$14.37

30.017

Differential | Base Package

705402377

$1,174.99

30.017

Differential

705402376

$1,258.74

30.018

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30.019

Oil Seal

705401836

$7.37

30.02

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705402007

$233.82

40.001

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40.002

RH Plunging Joint

715900441

Unavailable

40.003

Circlip Joint | Not shown

705401349

$5.38

40.004

Boot Kit, Wheel Side

705401345

$41.51

40,004a

Oetiker Clamp

715900282

$4.39

40,004b

Oetiker Clamp, Small

715900283

$4.39

40.005

Boot Kit, Différential Side

705401355

$41.51

40,005a

Oetiker Clamp, Small

715900261

$4.39

40,005b

Oetiker Clamp, Large

715900262

$7.84

50

LH Front - Premium CV Axle | Includes 50 to 50f2

705402008

$233.82

50.001

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50.002

LH Plunging Joint

715900442

Unavailable

50.003

Circlip Joint | Not shown

705401349

$5.38

50.004

Boot Kit, Wheel Side

705401345

$41.51

50,004a

Oetiker Clamp

715900282

$4.39

50,004b

Oetiker Clamp, Small

715900283

$4.39

50.005

Boot Kit, Différential Side

705401355

$41.51

50,005a

Oetiker Clamp, Small

715900261

$4.39

50,005b

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

185

Dart Tie Rap 200MM

710003168

$5.72

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
