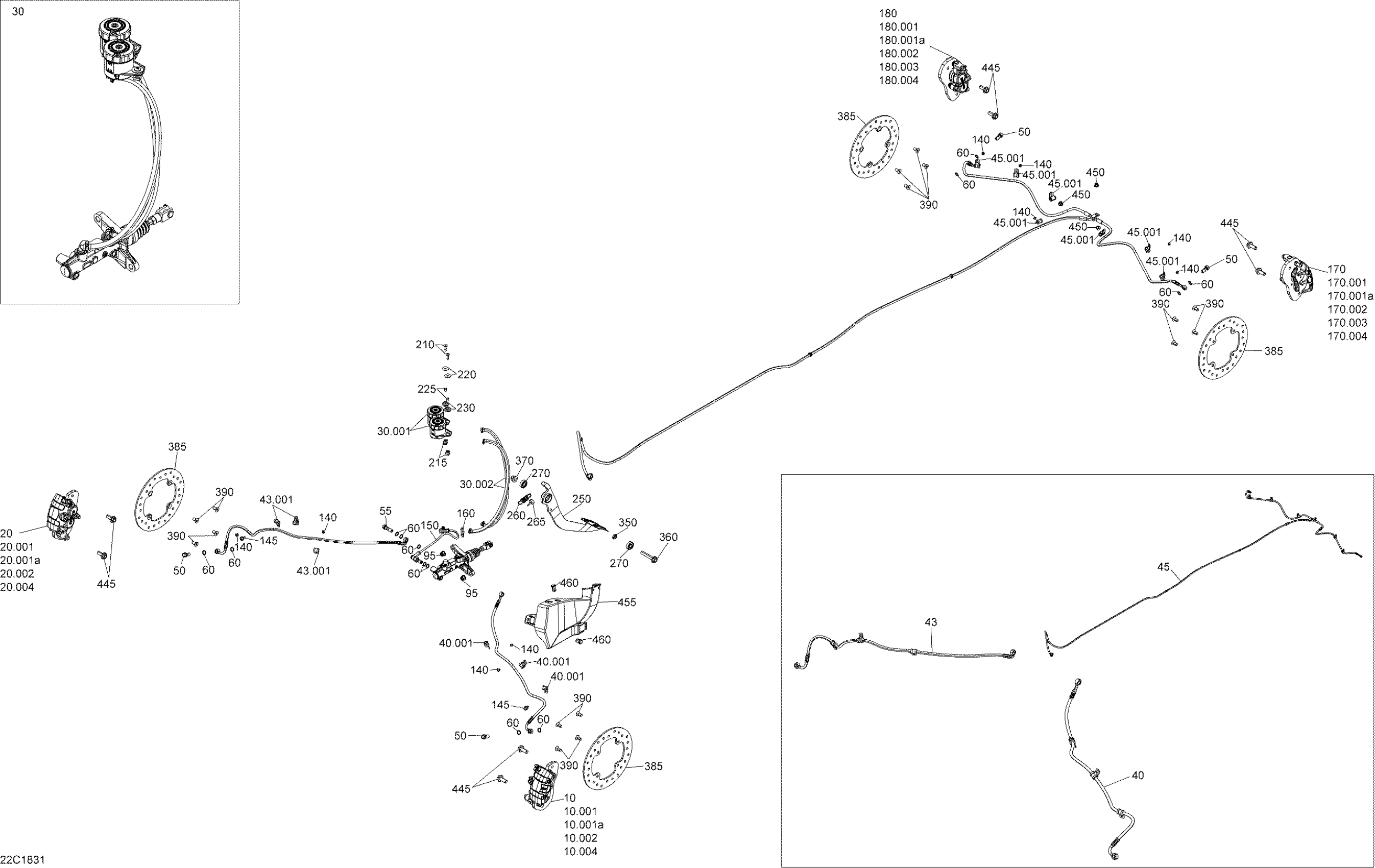

Can-Am Maverick Trail 1000 EFI, 2018 Brakes Maverick Trail Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10.001

LH Brake Pads

715900379

$111.51

10,001a

Pin Kit | Packages STD & PRO

715900384

$10.98

10.002

Bleeding Screw

705601017

$6.45

10.004

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | RH Front

705601888

$230.74

20.001

RH Brake Pads

715900380

$110.67

20,001a

Pin Kit | Packages STD & PRO

715900384

$10.98

20.002

Bleeding Screw

705601017

$6.45

20.004

Cap Spring Kit

715900385

$17.66

30

Master Cylinder

705601863

Unavailable

30.001

Oil Tank

705601020

$36.89

30.002

Oil Housing Hose

705601019

$15.35

40

LH Front Caliper Hose | Includes 40 to 40a

705601852

$78.43

40.001

Clamp

293650256

$4.36

43

RH Front Caliper Hose | Includes 43 to 43a

705601853

$83.05

43.001

Clamp

293650256

$4.36

45

Rear Brake Hose | Includes 45 to 45,001

705601599

$156.89

45.001

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Double Banjo Bolt

705601723

$7.60

60

Copper Washer

705601628

$4.34

95

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Pop Rivet 3/16"

390402200

$0.26

145

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

160

Tie Wrap 142 mm

293750002

$0.88

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$210.74

170.001

LH Brake Pads

715900386

$110.67

170,001a

Pin Kit | Packages STD & PRO

715900384

$10.98

170.002

Bleeding Screw

705601017

$6.45

170.003

Pin Kit | Packages STD & PRO

715900384

$10.98

170.004

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$210.74

180.001

RH Brake Pads

715900387

$110.67

180,001a

Pin Kit | Packages STD & PRO

715900384

$10.98

180.002

Bleeding Screw

705601017

$6.45

180.003

Pin Kit | Packages STD & PRO

715900384

$10.98

180.004

Cap Spring Kit

715900385

$17.66

210

Torx Screw M5 X 20

250000724

$1.39

215

Panel Nut M5 X 0.8

250000958

$3.48

220

Flat Washer

224060201

$1.15

225

Bushing

293900112

$10.14

230

Grommet

414036300

$2.22

250

Brake Pedal

705601537

$55.35

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

270

Bearing

705600458

$7.03

350

Bushing

705601622

$14.75

360

Hex. Flange Screw M10 X 55

207605546

$1.74

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

455

Master Cylinder Deflector

705601626

$6.92

460

Tuflok Plastic Rivet

293150230

$1.21
