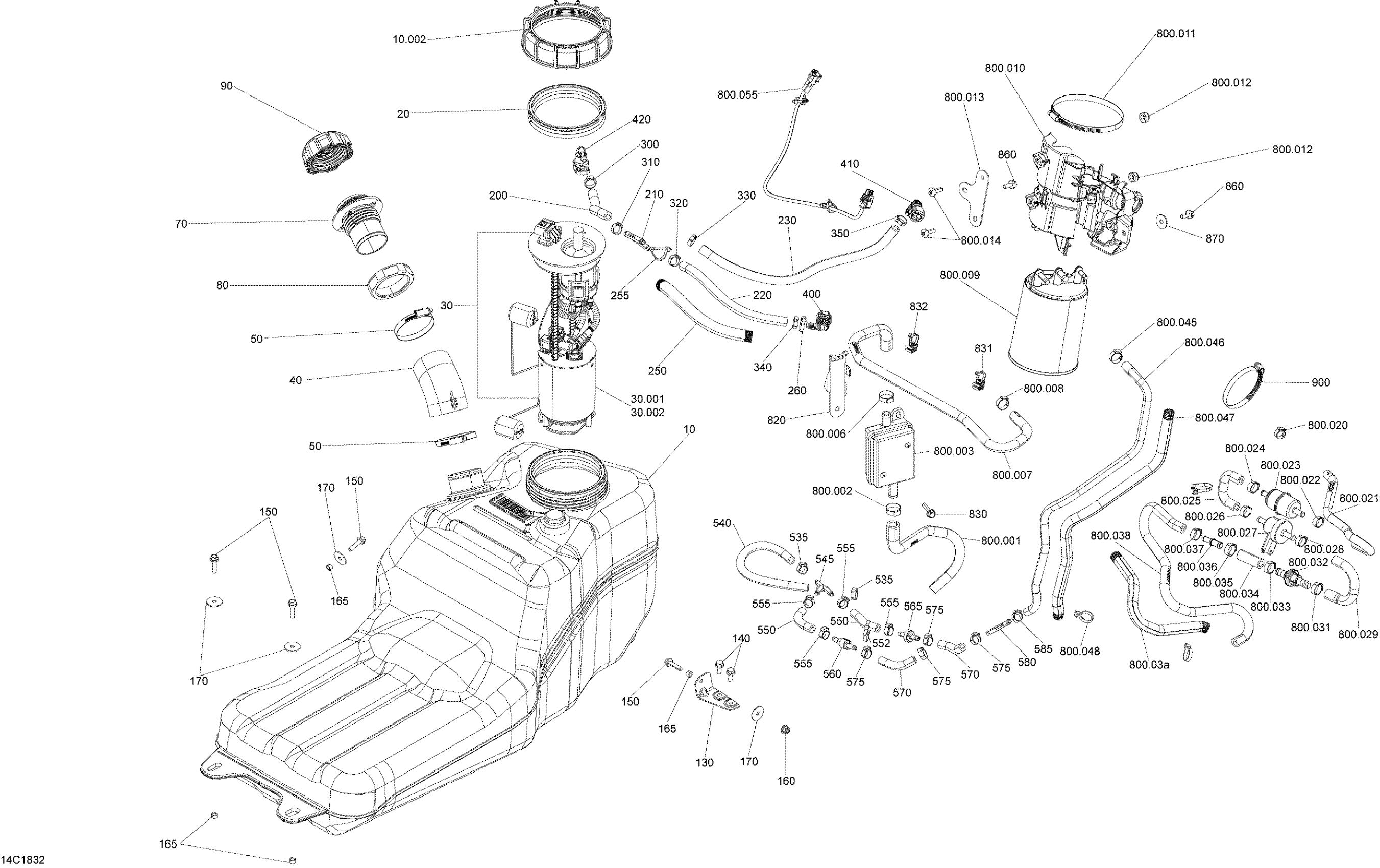

Can-Am Maverick Trail 1000 EFI, 2018 Fuel Maverick Trail - EVAP Model Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$401.51

10.002

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30.001

Fuel Filter

270600113

$27.27

30.002

Fuel Sender

715900424

$138.43

40

Fil Neck Hose

709000828

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

709000868

$32.28

130

Tank Bracket

709000997

$5.52

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Bushing | DS 650 X

293900104

$5.26

170

Washer M6

250200029

$1.83

200

Was 709000163 Fuel Line

219704440

$108.43

210

Y-Fitting, 5/16''

293710136

$6.45

220

Was 709000163 Fuel Line

219704440

$108.43

230

Was 709000163 Fuel Line

219704440

$108.43

235

Tubing 16 Mm 1000Mm Long

219704408

$6.23

236

Tie-Rap 180 mm

414115200

$0.09

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

255

Tie Wrap 368 mm

293750008

$0.85

260

Tie-Rap 180 mm

414115200

$0.09

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Attach 90°

275500700

$12.61

410

Quick Attach 90°

275500700

$12.61

420

Quick Disconnect

275500921

$12.61

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

552

Tie-rap Double Head 305mm

293750078

$5.52

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

800.001

Formed Hose

709000879

$16.89

800.002

Oetiker Clamp

293650186

$3.33

800.003

Air Filter

709000524

$46.12

800.006

Oetiker Clamp

293650186

$3.33

800.007

Formed Hose

709000957

$16.89

800.008

Crimp Clamp

293650053

$2.42

800.009

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800.01

Canister Support | EVAP Models

709000851

$4.60

800.011

Tridon Clamp

293650054

$7.51

800.012

Hex. Elastic Stop Nut M6

232561600

$0.92

800.013

Support

709000936

Unavailable

800.014

Torx Screw M6 X 20

250000712

$1.74

800.02

Oetiker Clamp

293650042

$1.40

800.021

Formed Hose

709000853

$15.22

800.022

Oetiker Clamp

293650046

$2.33

800.023

Fuel Filter

513034047

$23.05

800.024

Crimp Clamp, 15.3-706R

293650047

$2.64

800.025

Formed Hose

709000857

$15.22

800.026

Crimp Clamp, 15.3-706R

293650047

$2.64

800.027

Bleed Valve

709000443

$69.20

800.028

Crimp Clamp, 15.3-706R

293650047

$2.64

800.029

Formed Hose

709000881

$16.89

800,03a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800.031

Crimp Clamp

293650053

$2.42

800.032

Check Valve

275500941

$27.66

800.033

Crimp Clamp

293650053

$2.42

800.034

Hose

709000882

$15.35

800.035

Crimp Clamp

293650053

$2.42

800.036

Flow Reducer

709000933

$4.60

800.037

Crimp Clamp, 15.3-706R

293650047

$2.64

800.038

Formed Hose

709000883

$36.89

800.045

Oetiker Clamp

293650046

$2.33

800.046

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800.047

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800.048

Tie Wrap 142 mm

293750002

$0.88

800.055

Extension Wiring Harness

710005866

$27.66

820

Filter Support

709000935

$3.98

830

Hex. Flange Screw M6 X 25

207662554

$1.48

831

Clip Tie-Rap

293750063

$8.45

832

Clip Tie-Rap

293750063

$8.45

860

Hex. Flange Screw M6 X 16

207661654

$1.74

870

Flat Washer M6.6 X 22

250200162

$1.91

900

Norma Spring Clamp

293650214

$15.35
