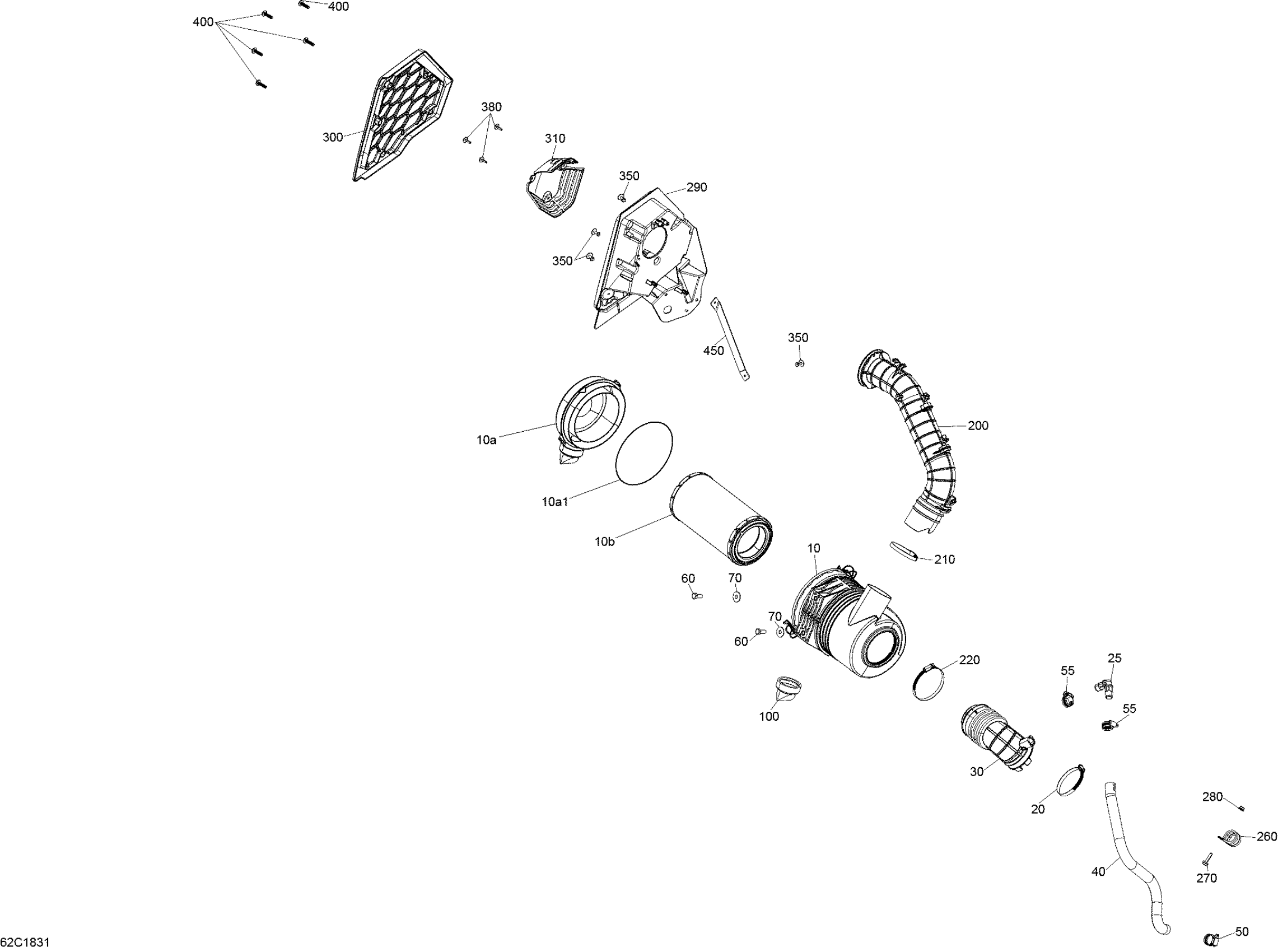

Can-Am Maverick Trail 1000 EFI, 2018 Air Intake Maverick Trail Diagram

Description

Price

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10a1

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

Norma Clamp

293650091

$4.60

Elbow Fitting 90

293710155

$8.45

Air Intake Adapter

707800715

$27.66

Blow-By Hose | Engine HD8

707800716

$27.66

Tridon Gear Clamp

293650173

$2.46

Tridon Gear Clamp

293650173

$2.46

Hex. Flange Screw M8 X 20

207682044

$0.92

Flat Washer 8 mm

234082410

$1.11

100

Duct Bill Valve

715003114

$12.91

200

Inlet Hose

707800717

$46.12

210

Norma Clamp

293650091

$4.60

220

Norma Clamp

293650096

$3.09

260

Hose Anchor

709200036

$10.83

270

Hex. Flange Screw M6 X 25

207662544

$0.53

280

Hex. Flange Nut M6

233061414

$1.34

290

Air Intake Box

707800865

$36.89

300

Air Intake Grid

707800751

$46.12

310

Baffle

707800762

$16.89

350

Pop Rivet 3/16"

293150103

$0.54

380

Torx Screw K50 X 16

250000720

$1.39

400

Hex. Screw Pt K60 X 25

250000980

$1.74

450

Support

707800784

$5.52
