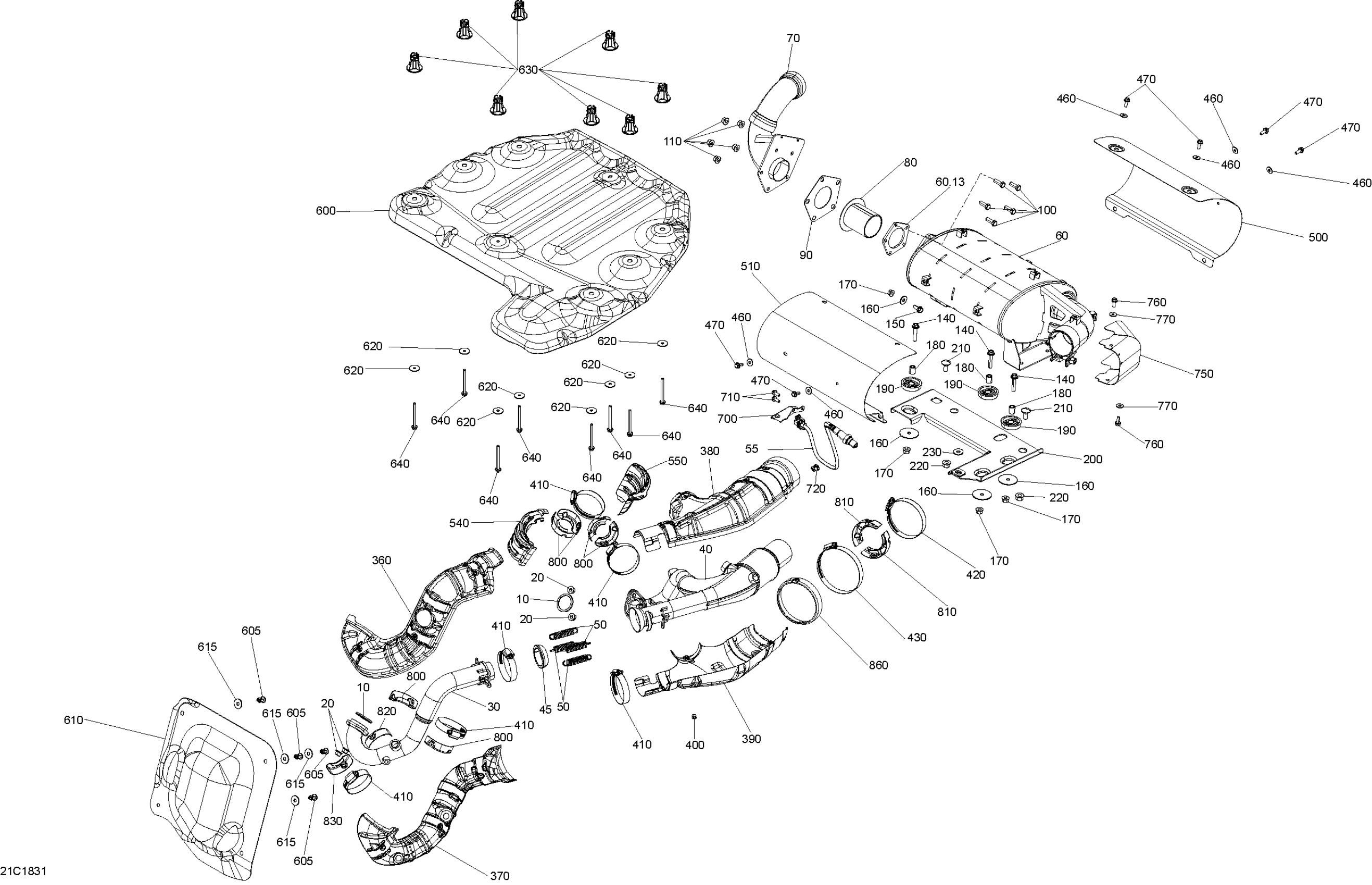

Can-Am Maverick Trail 1000 EFI, 2018 Exhaust Maverick Trail - 1000 EFI Diagram

#

Description
Price

10

Gasket

707600317

$10.21

20

Hex. Flange Nut M8

233081416

$1.87

30

Front Exhaust Pipe | Engine HD10

707601903

$159.67

40

Rear Exhaust Pipe | Engine HD10

707601906

$287.28

45

Exhaust Gasket

707601814

$11.46

50

Spring

707601834

$6.01

55

Oxygen Sensor

707600872

$132.81

60

Exhaust Muffler | Include 60a

703501046

$783.55

60.13

Exhaust Pipe Clamp

293650228

$11.06

70

Tail Pipe

707602520

$87.28

80

Spark Arrestor

707601803

$46.24

90

Gasket

707602205

$10.51

100

Hex. Screw Cap DIN.933

207182546

$0.96

110

Hex. Flange Nut M8

233081416

$1.87

140

Hex. Flange Screw M8 X 40

207684044

$1.43

150

Hex. Flange Screw M8 X 20

207682044

$1.06

160

Flat Washer 8 mm

234082410

$1.27

170

Hex. Flange Nut M8

233081416

$1.87

180

Spacer

707601969

$14.90

190

Rubber Mount

707602102

$6.73

200

Muffler Support

707601588

$27.58

210

Carriage Bolt, M8 X 20

207782044

$1.79

220

Hex. Flange Nut M8

233081416

$1.87

230

Flat Washer 8 mm

234082410

$1.27

360

Heat Shield, Front

707601923

$23.85

370

Front Heat Shield

707602403

$24.60

380

Heat Shield

707601925

$27.58

390

Heat Shield

707601926

$27.58

400

Pop Rivet 1/8 X

293150071

$0.90

410

Tridon Gear Clamp

293650258

$13.39

420

Tridon Gear Clamp

293650250

$13.39

430

Tridon Gear Clamp

293650261

$5.52

460

Flat Washer 6 mm

234062410

$0.73

470

Hex Flange Screw M6 X 16

250000906

$5.04

500

Heat Shield

707601521

$24.60

510

Heat Shield

707602041

$24.60

540

Heat Shield, Rear

707601927

$15.64

550

Heat Shield, Rear

707601928

$15.64

600

Heat Shield

707603178

$99.97

605

Tuflok Plastic Rivet

293150230

$1.39

610

Heat Shield

707602043

$48.48

615

Flat Washer 8 mm

234082410

$1.27

620

Washer

224060251

$0.55

630

Heatshield Spacer

706002976

$12.64

640

Hex. Flange Screw M6x65

207566544

$1.79

700

Oxygen Sensor Connector Support

707602379

$3.81

710

Hex. Flange Screw M6 X 16

210261640

$2.00

720

Dart Mount

710005529

$2.94

750

Heat Shield

707601931

$24.60

760

Hex Flange Screw M6 X 16

250000906

$5.04

770

Flat Washer 6 mm

234062410

$0.73

800

Exhaust Pipe Spacer

707602026

$3.29

810

Exhaust Pipe Spacer

707602027

$5.90

820

Exhaust Pipe Spacer

707601948

$5.90

830

Exhaust Pipe Spacer

707602016

$5.90

860

Exhaust Pipe Spacer

707602013

$10.97
