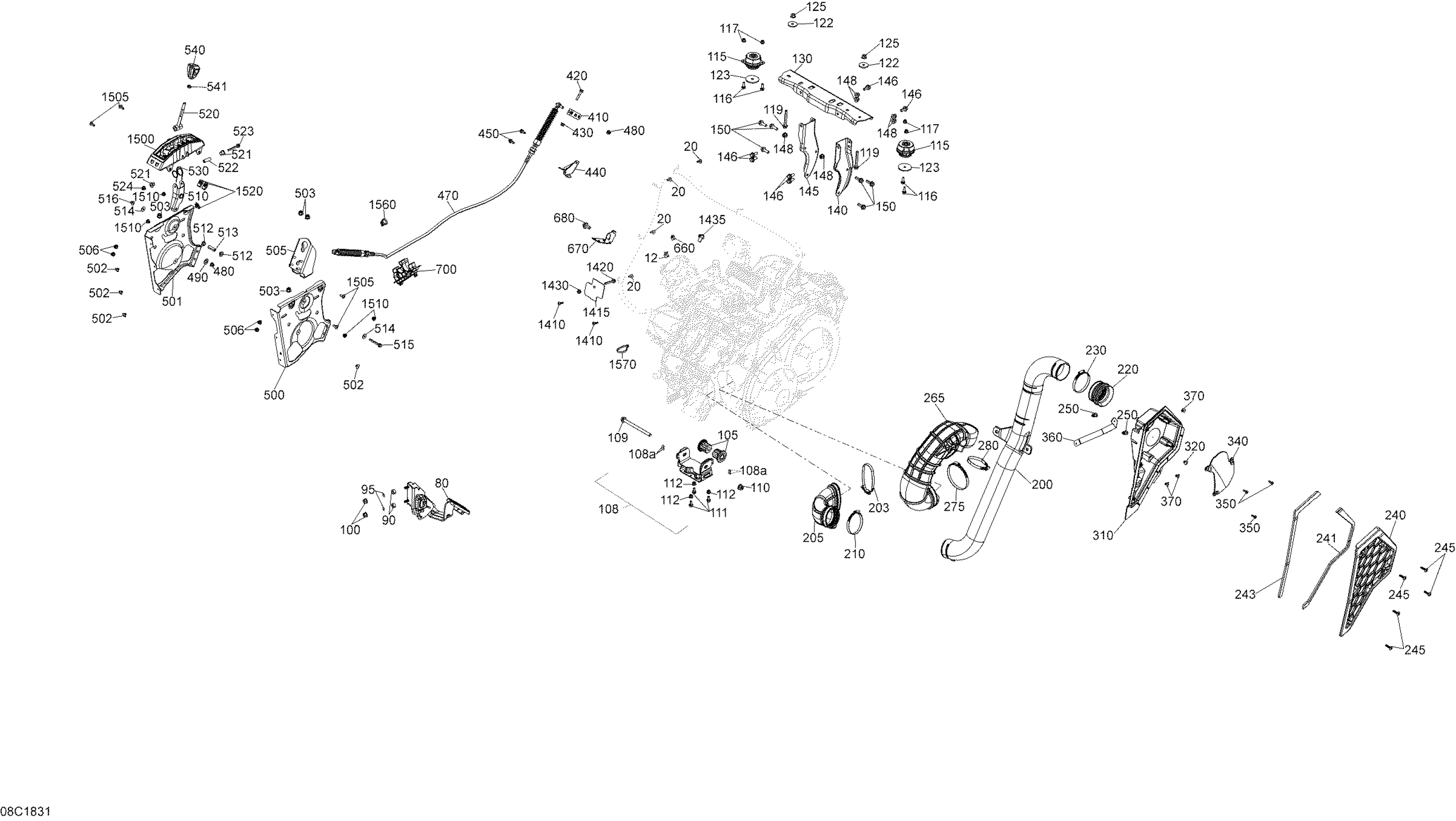

Can-Am Maverick Trail 1000 EFI, 2018 Engine Maverick Trail Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$15.35

20

Screw PT Type K-50 X 16

250000959

$1.74

80

Accelerator Pedal

707001166

$281.51

90

Bushing

707000848

$1.08

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

$1.63

105

Vibration Damper

707001169

$41.51

108

Vibration Damper | Includes 108 to 108d

707003061

$147.66

108a

Pop Rivet 3/16"

390402200

$0.26

109

Hex. Flange Screw M10 X 135

230603546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

111

Hex. Flange Screw M6 X 16

207661644

$0.61

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

115

Rubber Mount

707002590

$59.97

116

Hex. Flange Screw M6 X 20

207662044

$1.66

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

119

Hex. Flange Screw, M8 X 65

207686544

$9.74

122

Flat Washer M8

250200158

$1.74

123

Flat Washer M8

250200180

$1.79

125

Hex. Flange Nut M8

233081416

$1.63

130

Rear Link Bracket

707002290

$32.28

140

LH Rear Engine Support

707001610

$12.31

145

RH Rear Engine Support

707003340

$16.12

146

Hex. Flange Screw M8 X 20

207682046

$1.82

148

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

200

Front CVT Cooling Duct

706600183

$41.51

203

Norma Gear Clamp

514052983

$11.39

205

Flexible Adapter

706600249

$18.43

210

Norma Clamp

293650091

$4.60

220

Soft Fitting

706600190

$14.75

230

Norma Clamp

293650091

$4.60

240

CVT Filter

706600417

$41.51

241

Gasket

706600191

$37.66

243

Gasket

706600231

$11.98

245

Hex. Screw Pt K60 X 25

250000980

$1.74

250

Tuflok Plastic Rivet

293150230

$1.21

265

CVT Cooling Duct Out

706600192

$32.28

275

Norma Gear Clamp

514052983

$11.39

280

Norma Clamp

293650091

$4.60

310

Air Inlet Box

706600211

$50.74

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

340

Baffle

706600195

$27.66

350

Torx Screw K50 X 16

250000720

$1.39

360

Support

706600237

$5.97

370

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

410

Lever

707000911

$18.43

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Cable Support

707001614

$15.22

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

470

Shifting Cable

707002000

$69.20

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

500

LH Bracket

707002099

$23.05

501

RH Bracket

707002100

$23.05

502

Pop Rivet 3/16"

293150103

$0.54

503

Hex. Flange Elastic Nut M8

233281414

$1.14

505

Cable Support

707002098

$15.22

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

510

Lower Lever Arm

707002093

$17.66

512

Flanged Bushing

707000847

$1.00

513

Bushing

707001376

$4.22

514

Flat Washer 6 mm

234062410

$0.64

515

Hex. Flange Screw M6 X 50

207665044

$3.38

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

520

Upper Lever Arm

707000711

$36.89

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

$3.38

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

$7.95

541

Hex. Jam Nut M8

232180491

$6.18

660

Oetiker Clamp

293650042

$1.40

670

Cable Support

710004561

$10.77

680

Hex Flange Screw M10 X 20

207502044

$4.28

700

Hose Support

707002116

$10.15

1410

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1415

Insulator Pad

710000073

$11.06

1420

Hex. Flange Screw M6 X 45

207664544

$1.07

1430

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1435

Stud Tie Wrap

710006067

$2.31

1500

Lever Indicator

707900603

$27.66

1505

Torx Truss Screw M6 X 16

250000721

$1.39

1510

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1520

Panel Nut M6 X 1.0

250100198

$1.73

1560

Dart Tie Rap 200MM

710003168

$5.72

1570

Tie-Rap 180 mm

414115200

$0.09
