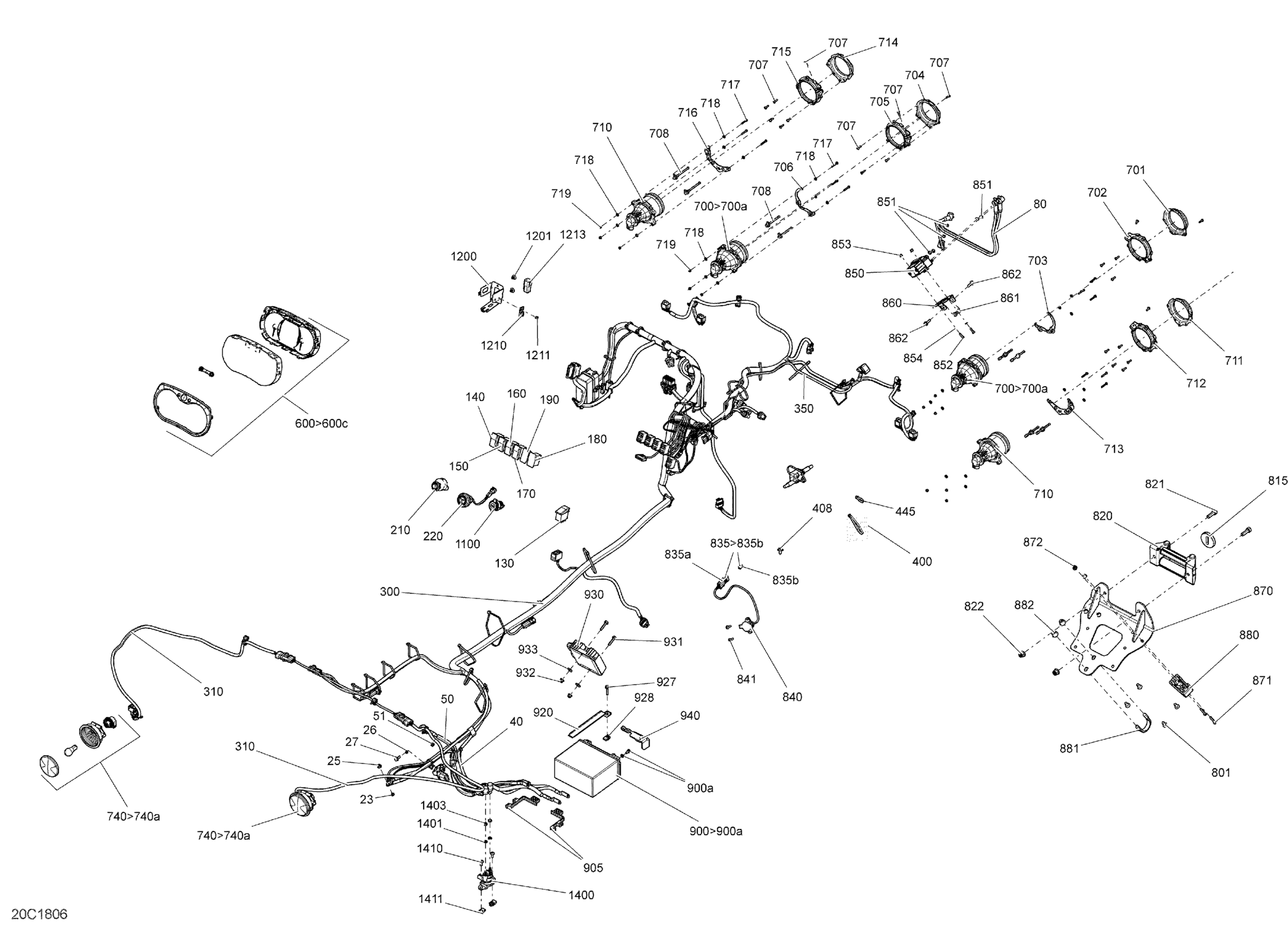

Can-Am Maverick MAX, 2018 Electrical System Maverick MAX - XMR Diagram

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Nut M6

233061414

$1.34

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

CABLE NEGATIVE POSITIVE - Call your local BRP dealership

710005240

Unavailable

Positive Cable

710004390

$36.89

Elastic Stop Nut M6

232561414

$1.55

WINCH CABLES - Call your local BRP dealership

710005216

Unavailable

Switch, Over ride

710002053

$19.27

Hi/Low Switch | Except Europe

710001725

$23.74

4X4 Switch

710001737

$32.28

Switch PPS Sport

710003541

$18.43

Switch DPS

710001781

$23.74

Switch Winch

710002052

$28.92

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Ignition Switch

710008400

$78.43

Engine Start Button

710002594

$59.97

WIRING HARNESS ASSY - Call your local BRP dealership | Includes 300 to 300a

710005675

Unavailable

DPS Connector Cap | Not Shown

710005760

$15.22

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$41.51

Winch Harness Ass'y

710005215

$24.58

Tie Wrap 368 mm

293750008

$0.85

Mount Dart

293730040

$0.86

Tie-Rap 180 mm

414115200

$0.09

Mount Dart

293730040

$0.86

Speedometer | Package Hunter, XT, XTP

710005653

$415.35

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

Halogen Bulb

415129249

$39.97

RH Low Front Housing

710001081

$16.89

RH Low Rear Housing

710001082

$10.98

RH Low Light Support

710001094

$9.22

LH Low Front Housing

710001083

$16.89

LH Low Rear Housing

710001084

$10.98

LH Low Light Support

710001037

$9.22

Phillips Screw K40 X 16

250000723

$0.81

Setting Screw

710001147

$12.91

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Halogen Bulb

415129249

$39.97

RH High Front Housing

710001085

$16.89

RH High Rear Housing

710001086

$10.98

RH High Light Support

710001115

$5.52

LH High Front Housing

710001087

$16.89

LH High Rear Housing

710001088

$10.98

LH High Light Support

710001036

$5.52

Hex. Screw M4 X 25

207142544

$1.63

Flat Washer M5

234051410

$0.44

Elastic Stop Nut M4

232541414

$0.48

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Electric Winch | Includes 800 to 800a

710006993

$234.99

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.58

Winch Hook Kit

705014949

$27.66

Stopper

710007028

$10.18

Fairlead Roller

710007082

$59.97

Socket Screw M10 x 30 | XT

205003044

$2.61

Hex. Flange Elastic Nut M10

233201414

$1.26

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Clip

710000992

$4.00

Wiring Harness_Switch Winch | Package XT

710007053

$59.97

Torx Screw K50 X 16

250000720

$1.39

Solenoid

710006991

$59.97

Elastic Stop Nut M6

232561434

$1.55

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

Elastic Flange Nut M5

233251494

$1.74

Flat Washer M5

234051410

$0.44

Solenoids Support

710004119

$23.05

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Winch Support

715001699

$149.97

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Elastic Nut M6

233261494

$1.26

CLAMP - Call your local BRP dealership

705006999

Unavailable

U-Bolt M10

705203504

Unavailable

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Rubber Pad

710003602

$11.98

Battery Holder

710001916

$19.20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Voltage Regulator

710005842

$159.87

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Stainless Steel Flat Washer

234062670

$1.74

Cap

710003582

$10.14

DC Outlet

710001248

$31.17

Fuse Holder

710003335

$9.29

Pop Rivet 3/16"

293150103

$0.54

Clip

270000141

$8.33

Pop Rivet 3/16"

390402400

$0.25

Housing

710003006

$7.24

Starter Relay

278003012

$35.07

Lock Washer Helical M6

234161601

$0.92

Hex. Nut M6

232061600

$0.91

Torx Head Screw M6 X 16

250000717

$1.74

Panel Nut M6 X 1.0

250100198

$1.73
