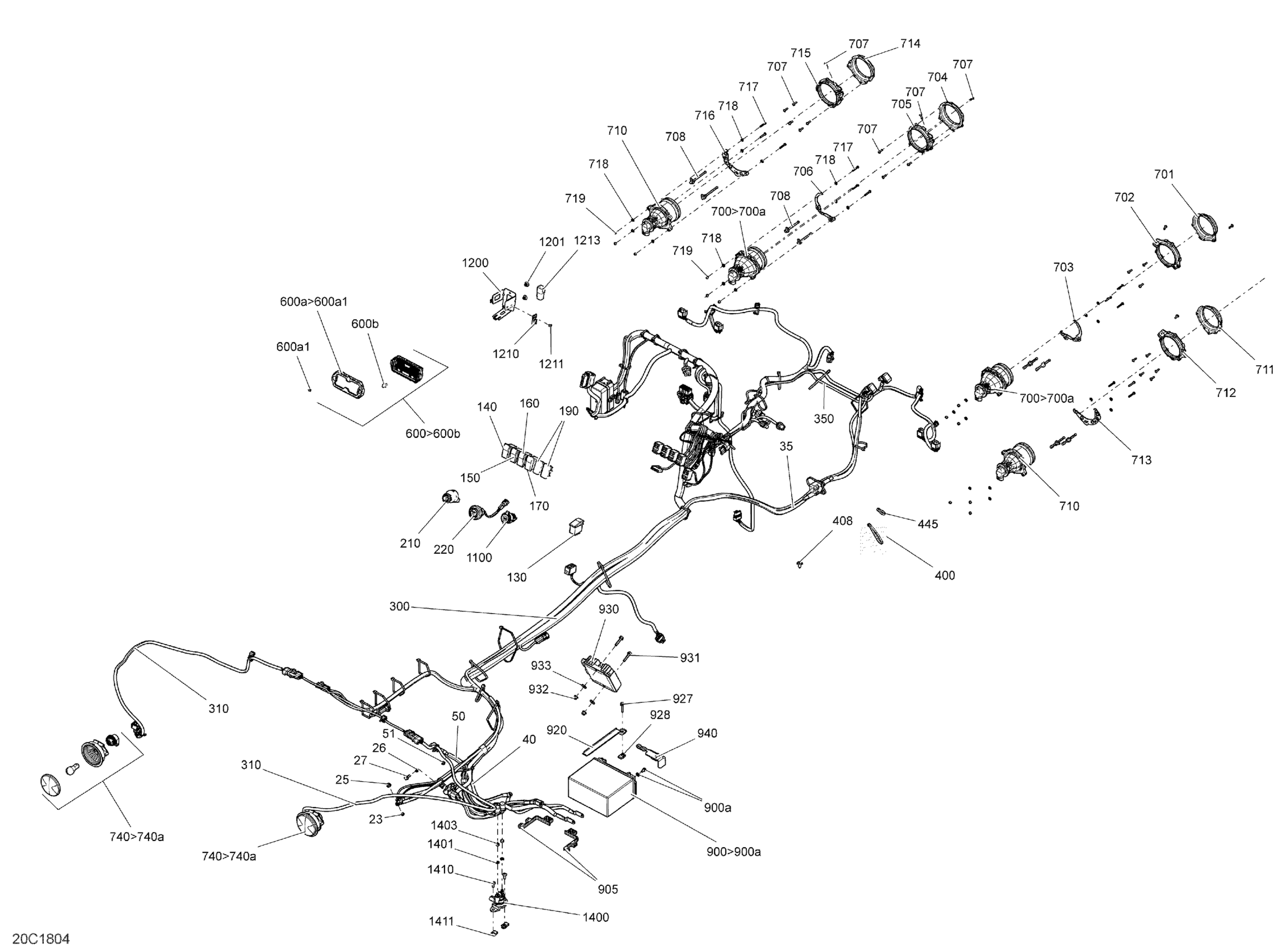

Can-Am Maverick MAX, 2018 Electrical System Maverick MAX - Except XMR Diagram

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Flange Nut M6

233061414

$1.68

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

POSITIVE CABLE - Call your local BRP dealership | Package DPS MAX Model

710004920

Unavailable

Positive Cable | Model-DPS

710004393

$35.99

Positive Cable

710004390

$36.99

Elastic Stop Nut M6

232561414

$0.55

Switch, Over ride

710002053

$19.49

Hi/Low Switch | Except Europe

710001725

$21.49

4X4 Switch

710001737

$31.99

Switch PPS Sport

710003541

$19.49

Switch DPS

710001781

$22.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Ignition Switch

710008400

$78.49

Engine Start Button

710002594

$60.49

WIRING HARNESS ASSY - Call your local BRP dealership | Includes 300 to 300a

710005675

Unavailable

DPS Connector Cap | Not Shown

710005760

$16.86

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

Tie Wrap 368 mm

293750008

$1.04

Mount Dart

293730040

$1.04

Tie-Rap 180 mm

414115200

$0.11

Mount Dart

293730040

$1.04

Speedometer | Includes 600 to 600b

710005553

$339.99

Trim Ring Ass'y

710001183

$19.99

BRP Logo13 mm

704904615

$13.49

Button

715900265

$13.71

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

RH Low Front Housing

710001081

$19.99

RH Low Rear Housing

710001082

$12.99

RH Low Light Support

710001094

$9.09

LH Low Front Housing

710001083

$19.99

LH Low Rear Housing

710001084

$12.99

LH Low Light Support

710001037

$9.09

Phillips Screw K40 X 16

250000723

$0.98

Setting Screw

710001147

$12.71

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

RH High Front Housing

710001085

$19.99

RH High Rear Housing

710001086

$12.99

RH High Light Support

710001115

$5.29

LH High Front Housing

710001087

$19.99

LH High Rear Housing

710001088

$12.99

LH High Light Support

710001036

$5.29

Hex. Screw M4 X 25

207142544

$2.00

Flat Washer M5

234051410

$0.53

Elastic Stop Nut M4

232541414

$0.58

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Rubber Pad

710003602

$12.99

Battery Holder

710001916

$21.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Voltage Regulator

710005842

$189.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Cap

710003582

$11.99

DC Outlet

710001248

$37.99

Fuse Holder

710003335

$10.11

Pop Rivet 3/16"

293150103

$0.55

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Housing

710003006

$8.79

Starter Relay

278003012

$42.49

Lock Washer Helical M6

234161601

$1.15

Hex. Nut M6

232061600

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Panel Nut M6 X 1.0

250100198

$2.11
