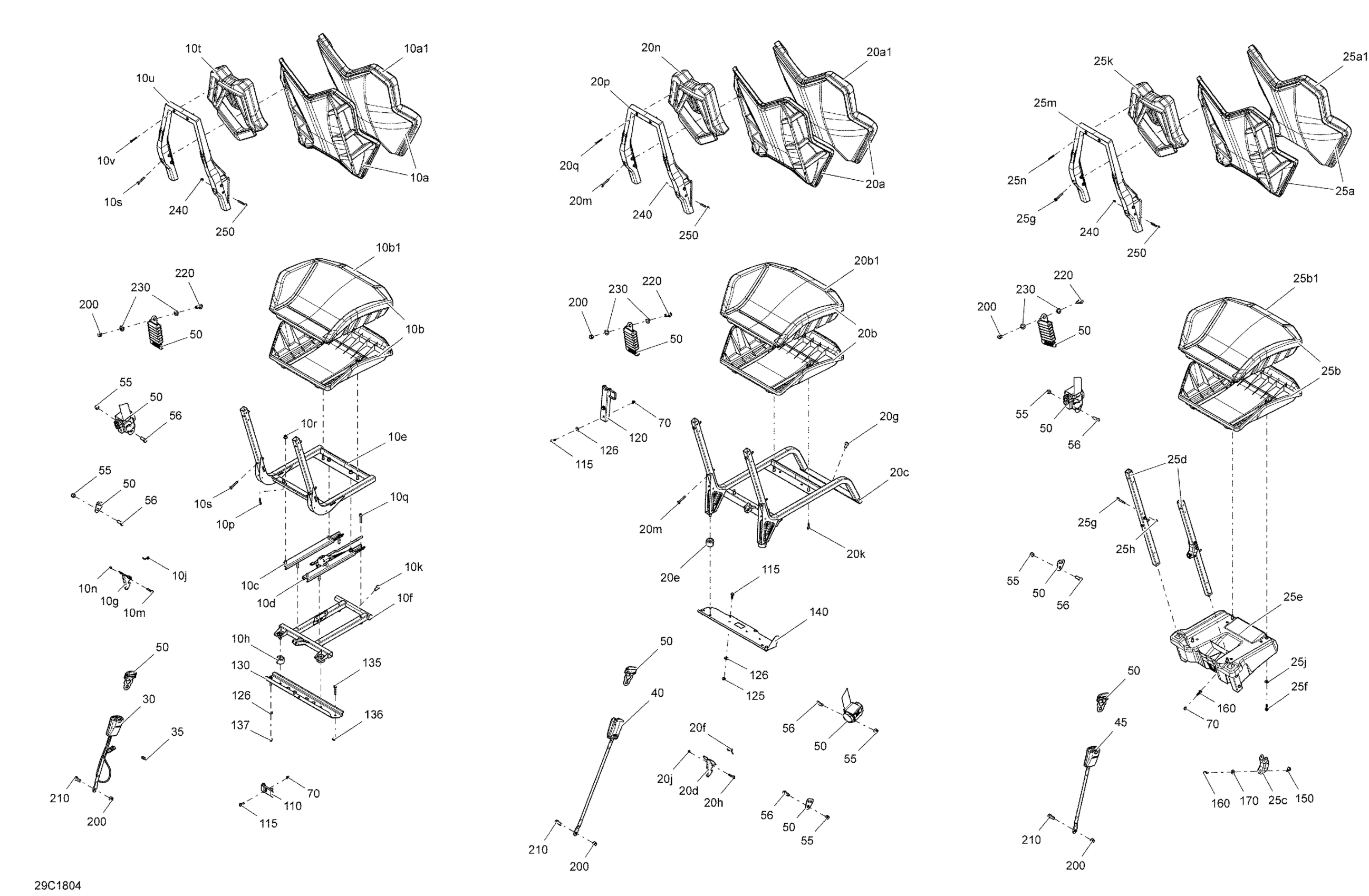

Can-Am Maverick MAX, 2018 Seat Maverick MAX Diagram

#

Description
Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

10a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

10a1

Backrest Cover

708000675

$97.99

10a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

10b

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

10b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

10b1

Seat Cover

708001103

$117.99

10b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

10c

LH Rail

708000848

$52.99

10d

RH Rail

708001739

$35.99

10e

Operator Seat Frame

708001356

$296.24

10f

Seat Member

708001174

$72.36

10g

Seat Latch

708001355

$2.59

10h

Rubber Bumper

708001671

$2.13

10j

Spring

708000921

$0.96

10k

Socket Screw M10 X 16

205501644

$3.88

10m

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

10n

Hex. Elastic Stop Nut M6

232561600

$1.06

10p

Hex. Flange Screw M6 X 25

207562544

$1.60

10q

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

10r

Hex. Flange Elastic Nut M8

233281414

$1.31

10s

Hex. Flange Screw M6

250000672

$2.00

10t

Head Rest

708001074

$91.01

10u

Seat Support

708001245

$26.09

10v

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20a1

Backrest Cover

708000675

$97.99

20b

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

20b1

Seat Cover

708001103

$117.99

20c

Passenger Seat Frame

708001357

$319.99

20d

Seat Latch

708001355

$2.59

20e

Rubber Bumper

708001671

$2.13

20f

Spring

708000921

$0.96

20g

Socket Screw M10 X 16

205501644

$3.88

20h

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

20j

Hex. Elastic Stop Nut M6

232561600

$1.06

20k

Hex. Flange Screw M6 X 25

207562544

$1.60

20m

Hex. Flange Screw M6

250000672

$2.00

20n

Head Rest

708001074

$91.01

20p

Seat Support

708001245

$26.09

20q

Hex. Flange Screw K50 X 40

250000897

Unavailable

25a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

25a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

25a1

Backrest Cover

708000675

$97.99

25a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

25b

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

25b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

25b1

Seat Cover

708001103

$117.99

25b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

25c

Rear Anchor

708001474

$17.88

25d

Side Tube

708001476

$27.58

25e

Seat Support

708001198

$61.16

25f

Hex. Flange Screw M6 X 25

207562544

$1.60

25g

Hex. Flange Screw M6

250000672

$2.00

25h

Hex. Elastic Flange Nut M6

233161464

$0.96

25j

Stainless Steel Flat Washer

234062670

$2.00

25k

Head Rest

708001074

$91.01

25m

Seat Support

708001245

$26.09

25n

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$70.99

35

Tie Wrap 368 mm

293750008

$0.97

40

Passenger Buckle Side

708002064

$60.42

45

Rear Passenger Buckle Side

708002063

$60.42

50

Safety Belt

708002644

$260.42

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

70

Insert Half Hex Body M6 x 1.0

250100199

$2.91

110

Anchor

708001212

$17.88

115

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

120

Anchor

708001213

$21.61

125

Hex. Flange Nut M6

233061414

$1.54

126

Stainless Steel Flat Washer

234062670

$2.00

130

Seat Support

708001214

$60.42

135

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.00

136

Panel Nut M6 X 1.0

250100171

$3.69

137

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

140

Support

708001804

$44.75

150

Panel Nut M6 X 1.0

250100171

$3.69

160

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

170

Conical Spring Washer M8

234281474

$1.43

200

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

210

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

220

Safety Belt Screw

708000890

$3.79

230

Position Washer

708000891

$0.97

240

Hex. Elastic Flange Nut M6

233161464

$0.96

250

Hex. Flange Screw M6

250000672

$2.00
