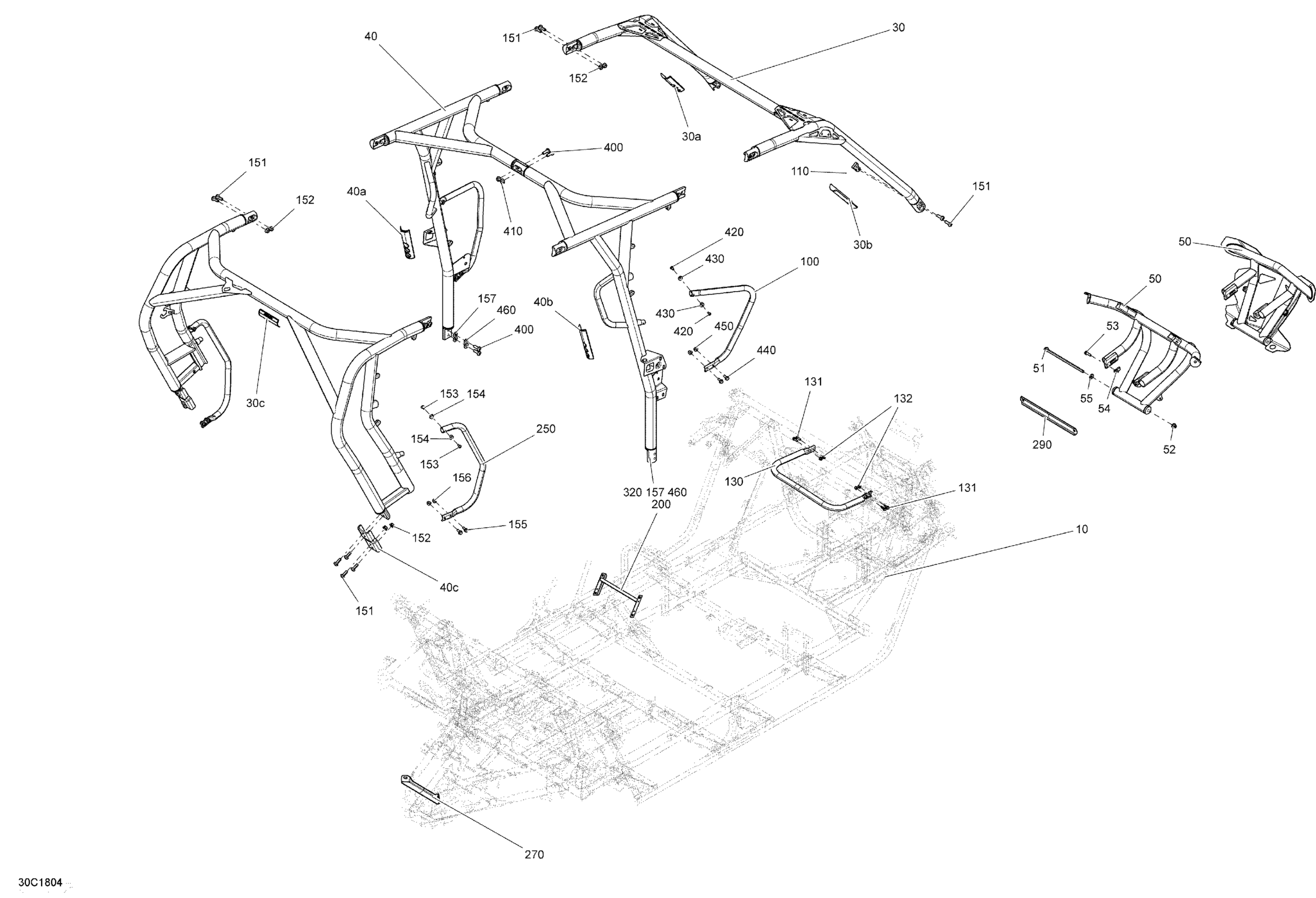

Can-Am Maverick MAX, 2018 Frame Maverick MAX Diagram

#

Description
Price

10

Frame Kit

715003946

$2,969.99

30>30c

Red Cage Kit

715003905

$1,039.99

30>30c

YELLOW CAGE KIT - Call your local BRP dealership | Sunburst Yellow Cage

715004396

Unavailable

30a

Warning Label

704903492

Unavailable

30b

Threaded Insert M6 X 1.0

250100242

Unavailable

30c

Warning Label

704903492

Unavailable

40>40c

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

40>40c

YELLOW CENTRAL CAGE KIT - Call your local BRP dealership | Sunburst Yellow Cage

715004395

Unavailable

40a

Warning Label

704903680

Unavailable

40b

Hex. Flange Nut M8

233181414

$0.91

40c

Rear Hand Mounting

705203514

$18.43

50

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

51

Hex. Flange Screw

250000597

$10.30

52

Hex. Flange Elastic Nut M10

233201436

$1.74

53

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

54

Panel Nut M8 X 1.25

250100118

$1.63

55

Conical Spring Washer 10 mm

234201474

$1.39

100

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

100

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206150

Unavailable

110

Binding Block

705203415

$16.89

120

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

120

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206149

Unavailable

130

Black Handle

705203332

$129.20

131

Hex. Flange Screw M6 X 20

207662046

$1.74

132

Elastic Flange Nut M6 X 1.0

233261416

$1.74

151

Screw Pan M10 X 30

250000848

$1.56

152

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

153

Torx Truss M6X14

250000789

$4.41

154

Offset Washer

705202223

$4.98

155

Hex. Flange Screw M8 X 20

207682044

$0.92

156

Hex. Flange Elastic Nut M8

233281414

$1.14

157

Washer

250200154

$3.58

200

Reinforcement Panel

705203717

$147.66

250

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

250

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206151

Unavailable

260

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

260

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206152

Unavailable

270

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

290

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.74

400

Screw Pan M10 X 30

250000848

$1.56

410

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

420

Torx Truss M6X14

250000789

$4.41

430

Offset Washer

705202223

$4.98

440

Hex. Flange Screw M8 X 20

207682044

$0.92

450

Hex. Flange Elastic Nut M8

233281414

$1.14

460

Washer

250200154

$3.58
