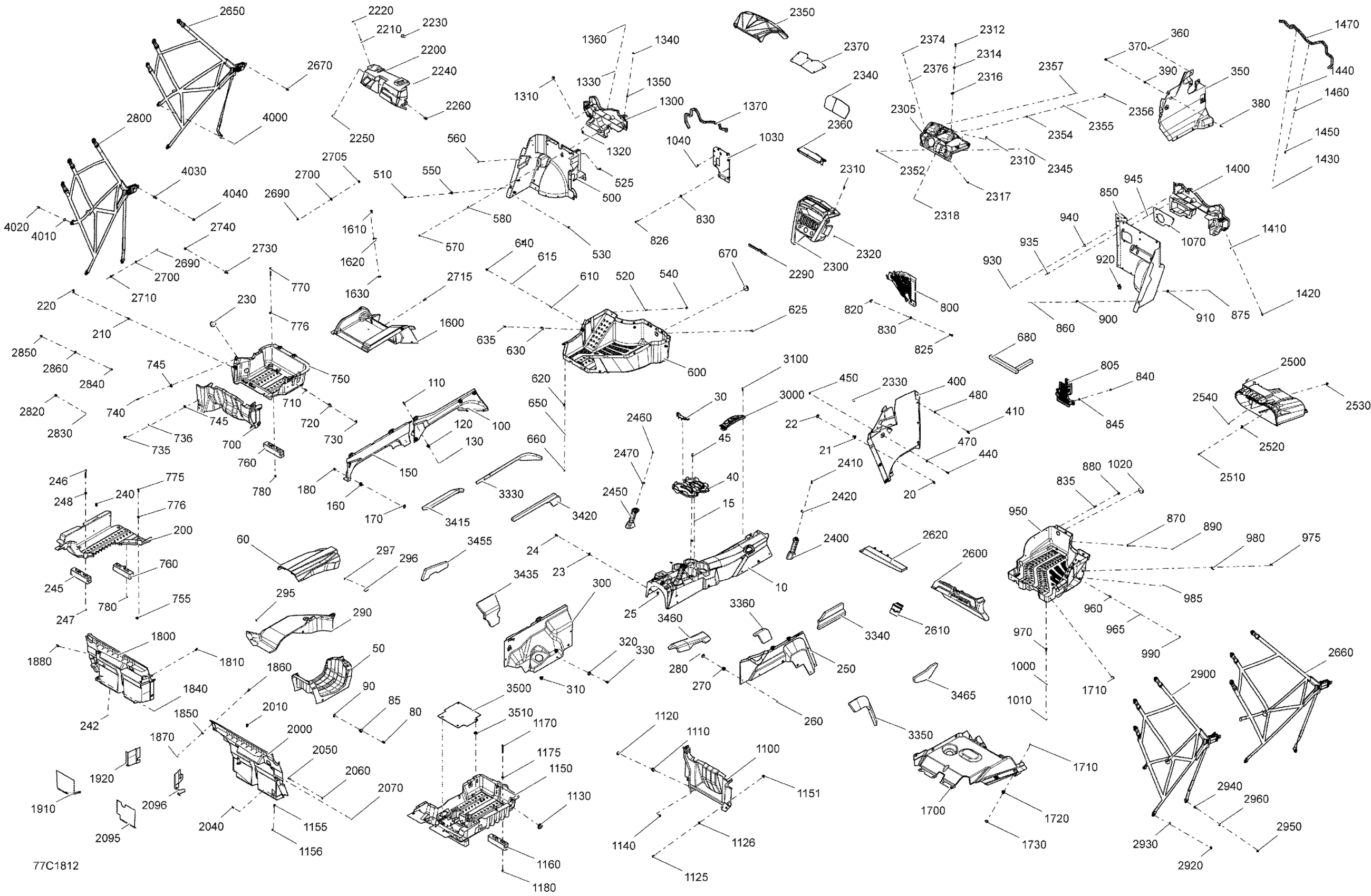

Can-Am Maverick MAX, 2018 Cab Interior Maverick MAX - Package XMR Diagram

Front Console Kit | MAX Model Except Package XDS-DPS

715003370

$156.89

Push Nut

732610072

$1.72

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Cup Retainer

707900036

$6.45

Cup Holder

707900100

$16.89

Tuflok Plastic Rivet

293150230

$1.21

Rear Console

707900468

$64.58

Rear Console Cover Kit

707900229

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

LH Side Console

707900001

$41.51

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

Rear Left Dash

707900633

$78.43

Insert

707900133

$2.75

Washer

503189273

$3.20

Tuflok Plastic Rivet

293150230

$1.21

Under cover

707900387

$152.28

Hex. Flange Screw M6 X 20

207662054

$0.83

Panel Nut M6 X 1.0

250100198

$1.73

Rubber Cover

293250242

$5.38

Tuflok Plastic Rivet

293150230

$1.21

Washer

506151252

$3.11

Support Plate

707900099

$15.35

Hex. Flange Screw M6 X 70

207667056

$3.61

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

RH Side Console

707900002

$36.89

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

Rear Floor cap

707900388

$152.28

Tuflok Plastic Rivet

293150230

$1.21

INSERT SUPPORT - Call your local BRP dealership

705205445

Unavailable

Pop Rivet 3/16"

293150103

$0.54

RH Rear Console Panel

707900080

$59.20

Insert

707900133

$2.75

Washer

503189273

$3.20

Tuflok Plastic Rivet

293150230

$1.21

Front Side Dash Panel

707900193

$69.20

Tuflok Plastic Rivet

293150230

$1.21

Torx Screw M6 X 20

250000722

$1.34

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

RH FIXE SIDE CONSOLE - Call your local BRP dealership

707900203

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Torx Screw M6 X 20

250000722

$1.34

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

Washer

506151252

$3.11

LH Front Upper Floor

707900175

$78.43

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M6 X 20

250000712

$1.74

Torx Screw M6 X 25

250000758

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw K50 X 16

250000720

$1.39

Flat Washer 6 mm

234062410

$0.64

LH Lower Floor

707900022

$253.82

Torx Screw M6 X 20

250000712

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

Torx Truss Screw M6 X 25

250000807

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Cover

293250242

$5.38

Was 293250381 Seal Tray

219704382

$41.51

LH Rear Upper Floor Cover

707900082

$50.74

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 25

250000758

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$78.43

Panel Nut M6 X 1.0

250100198

$1.73

Support Plate

707900099

$15.35

Hex. Flange Screw M6 X 70

207667056

$3.61

Hex. Flange Screw M6 X 20

207662054

$0.83

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Grille

707900178

$9.18

Grille

707900180

$9.18

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 30

250000843

$1.74

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Torx Truss Screw M6 X 30

250000843

$1.74

Torx Screw K50 X 16

250000720

$1.39

Washer M5

250200025

$0.61

RH Front Floor

707900004

$78.43

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M6 X 20

250000712

$1.74

Torx Screw M6 X 25

250000758

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Stainless Steel Flat Washer

234062670

$1.74

Oblong Grommet

705003668

$4.54

Torx Screw K50 X 16

250000720

$1.39

Torx Screw M5 X 20

250000724

$1.39

Flat Washer 6 mm

234062410

$0.64

Elastic Flange Nut M5

233251494

$1.74

RH Lower Floor

707900023

$184.58

Torx Screw M6 X 20

250000712

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

Torx Truss Screw M6 X 25

250000807

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Cover

293250242

$5.38

Deflector | XRS-DPS

707900204

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Hose Support

707900217

$15.22

Seat Cover

707900083

$46.12

Insert

707900133

$2.75

Washer

503189273

$3.20

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Rubber Cover

293250242

$5.38

Tuflok Plastic Rivet

293150230

$1.21

RH Lower Rear Floor

707900670

$184.58

Panel Nut M6 X 1.0

250100198

$1.73

Tuflok Plastic Rivet

293150230

$1.21

Washer

506151252

$3.11

Support Plate

707900099

$15.35

Hex. Flange Screw M6 X 70

207667056

$3.61

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Floor Support LH

707900561

$23.05

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Was 293200017 Neoprene Seal

219704365

$118.27

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900563

Unavailable

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Was 293200017 Neoprene Seal

219704365

$118.27

Under Seat Cover

707900130

$78.43

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

RH Under Seat Plate

707900006

$106.12

Tuflok Plastic Rivet

293150230

$1.21

Insert

707900133

$2.75

Washer

503189273

$3.20

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Torx Screw K50 X 16

250000720

$1.39

Flat Washer

250200040

$1.82

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Tuflok Plastic Rivet

293150230

$1.21

Heat Shield

707900182

$8.98

Heat Shield

707900183

$5.52

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Torx Screw K50 X 16

250000720

$1.39

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Tuflok Plastic Rivet

293150230

$1.21

Heat Shield

707900167

$8.45

Heat Shield

707900184

$5.52

Dashboard Ass'y

715001250

$78.43

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Support Plate

705003841

$0.91

Edge Clip

517302785

$0.70

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Was 271000110 Protection Trim

219704353

$15.03

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

Upper Central Console Ass'y

707900199

$41.51

Torx Screw M5 X 25

250000762

$1.74

Hexagonal Head Screw

210262050

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw K50 X 16

250000720

$1.39

Push Nut

732610072

$1.72

Panel Nut M5 X 0.8

250000958

$3.48

Tuflok Plastic Rivet

293150230

$1.21

GPS Cover And Radio Control

707900104

$12.91

Torx-Truss Pt K40 X 16

250000759

$1.74

DASH CAP - Call your local BRP dealership | Carbon Black Models

707900600

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

CENTRAL FILTER - Call your local BRP dealership

707900215

Unavailable

DASHBOARD COVER - Call your local BRP dealership

707900216

Unavailable

Hexagonal Head Screw

210262050

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Passenger Handle

707900011

$12.91

Torx Screw M6 X 20

250000722

$1.34

Connector Tube

707900048

$6.45

Handle

707900103

$14.75

Torx Screw M6 X 20

250000722

$1.34

Connector Tube

707900048

$6.45

Storage Bin | XT

707900046

$96.89

Hex. Flange Screw M6 X 20

207662054

$0.83

Panel Nut M6 X 1.0

250100198

$1.73

CAP - Call your local BRP dealership

414859400

Unavailable

Rubber Bumper

293830005

$5.33

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

Latch

707900031

$8.29

Trim Glove Box

707900062

$17.66

Front LH Safety Net

707900237

$124.58

Front RH Safety Net

707900238

$124.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer 6 mm

234062410

$0.64

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Screw M6 X 20

207662054

$0.83

Torx Screw M6 X 25

250000758

$1.74

Flat Washer 8 mm

234082410

$1.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Rear LH Safety Net | Upper Link 707900049

707900239

$212.28

Hex. Flange Elastic Nut M8

233281414

$1.14

Flat Washer 8 mm

234082410

$1.11

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Stainless Steel Flat Washer

234062670

$1.74

Rear RH Safety Net | Upper Link 707900049

707900240

$212.28

Hex. Flange Elastic Nut M8

233281414

$1.14

Flat Washer 8 mm

234082410

$1.11

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Stainless Steel Flat Washer

234062670

$1.74

Shift Lever Indicator

707900088

$14.75

Torx Screw M6 X 25 | XT Models

250000728

$3.61

LH Lower Lateral Console Foam

707900621

$20.74

RH Lateral Console Foam

707900622

$15.35

RH Lateral Console Foam

707900623

$15.35

RH Lateral Console Foam

707900624

$15.35

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$20.74

LH Rear Lateral Foam

707900626

$15.35

RH Rear Lateral Foam

707900627

$14.37

Front Central Foam

707900628

$10.14

Front Central Foam

707900629

$15.22

Front Central Foam

707900630

$10.14

Battery Cover

707900163

$17.66

Grommet

705003264

$3.43

Torx Screw M5 X 14

250000742

$1.20

Flat Washer

250200040

$1.82

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281414

$1.14
