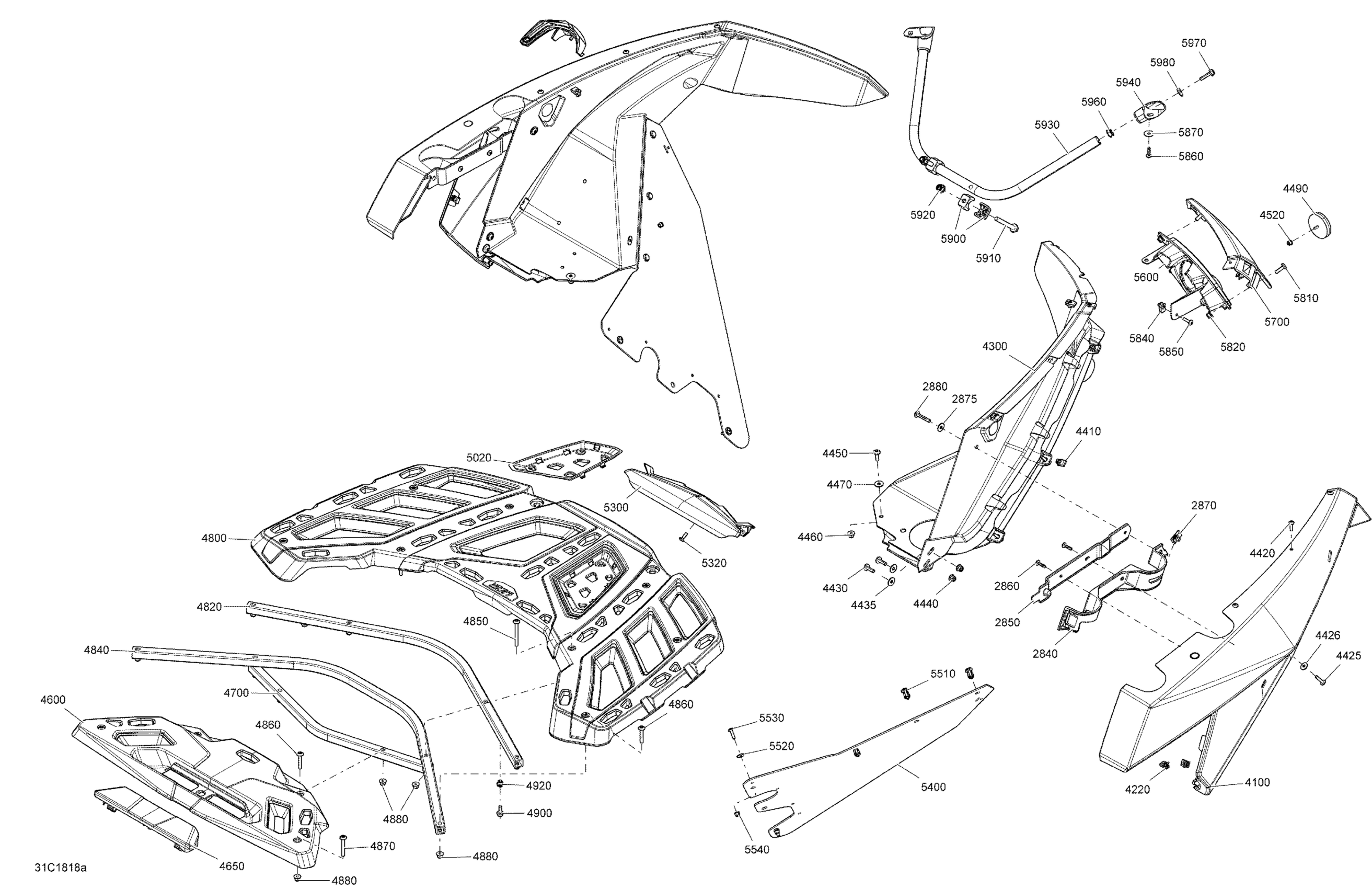

Can-Am Maverick MAX, 2018 Body Rear Part Maverick MAX - Package DPS Diagram

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$11.18

Support Plate

705007917

$12.30

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Stainless Steel Flat Washer

234062670

$2.00

Black, Torx Screw M6 X 35

250000646

$0.90

White LH Rear Fender | Model-STD White

705009037

$124.60

White RH Rear Fender | Model-STD White

705009038

$124.60

Edge Clip

517302785

$0.81

LH Inner Fender

705009548

$49.97

RH Inner Fender

705009549

$49.97

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M5 X 20

250000724

$1.60

Torx Screw M5 X 25

250000762

$2.00

Washer M5

250200025

$0.70

Torx Screw M6 X 20

250000712

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Torx Screw M6 X 20

250000712

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Stainless Steel Flat Washer

234062670

$2.00

Red Reflector

705011221

$11.96

Elastic Flange Nut M5

233251494

$2.00

Bagage Central Rack

705006128

$48.48

Central Bagage Rack Cap

705006132

$8.84

Bagage Rack Tube

705006279

$34.30

BAGGAGE RACK KIT - Call your local BRP dealership

715004180

Unavailable

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Torx Screw M6 X 60

250000648

$7.06

Black, Torx Screw M6 X 35

250000646

$0.90

Torx Screw M6 X 45

250000647

$5.46

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.00

Threaded Insert M6 X 1.0

250100242

Unavailable

LH Bagage Rack Cover

705006713

$8.84

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

LOGO Support

705005994

$12.49

Torx Screw K50 X 16

250000720

$1.60

Deflector

705007828

$49.97

Tuflok Plastic Rivet

293150230

$1.39

Washer M5

250200025

$0.70

Torx Screw M5 X 20

250000724

$1.60

Elastic Flange Nut M5

233251494

$2.00

LH Rear Facia | North America, International

705004731

$16.39

RH Rear Facia | North America, International

705004732

$16.39

WHITE LH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007370

Unavailable

WHITE RH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007371

Unavailable

Torx Screw M6 X 20

250000712

$2.00

Flange Elastic Nut M6

233261434

$4.15

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M5 X 20

250000724

$1.60

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Flat Washer

224060201

$1.12

Rear Support Facia Clip

705007044

$2.79

Hex. Flange Screw M8 X 70

207687044

$7.01

Hex. Flange Elastic Nut M8

233281414

$1.31

Body Tube

705007299

$60.42

LH Rear Facia Support

705007045

$9.48

RH Rear Facia Support

705007046

$9.48

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

Hex. Flange Screw M6 X 25

207662544

$0.61

Flat Washer

224061201

$1.27
