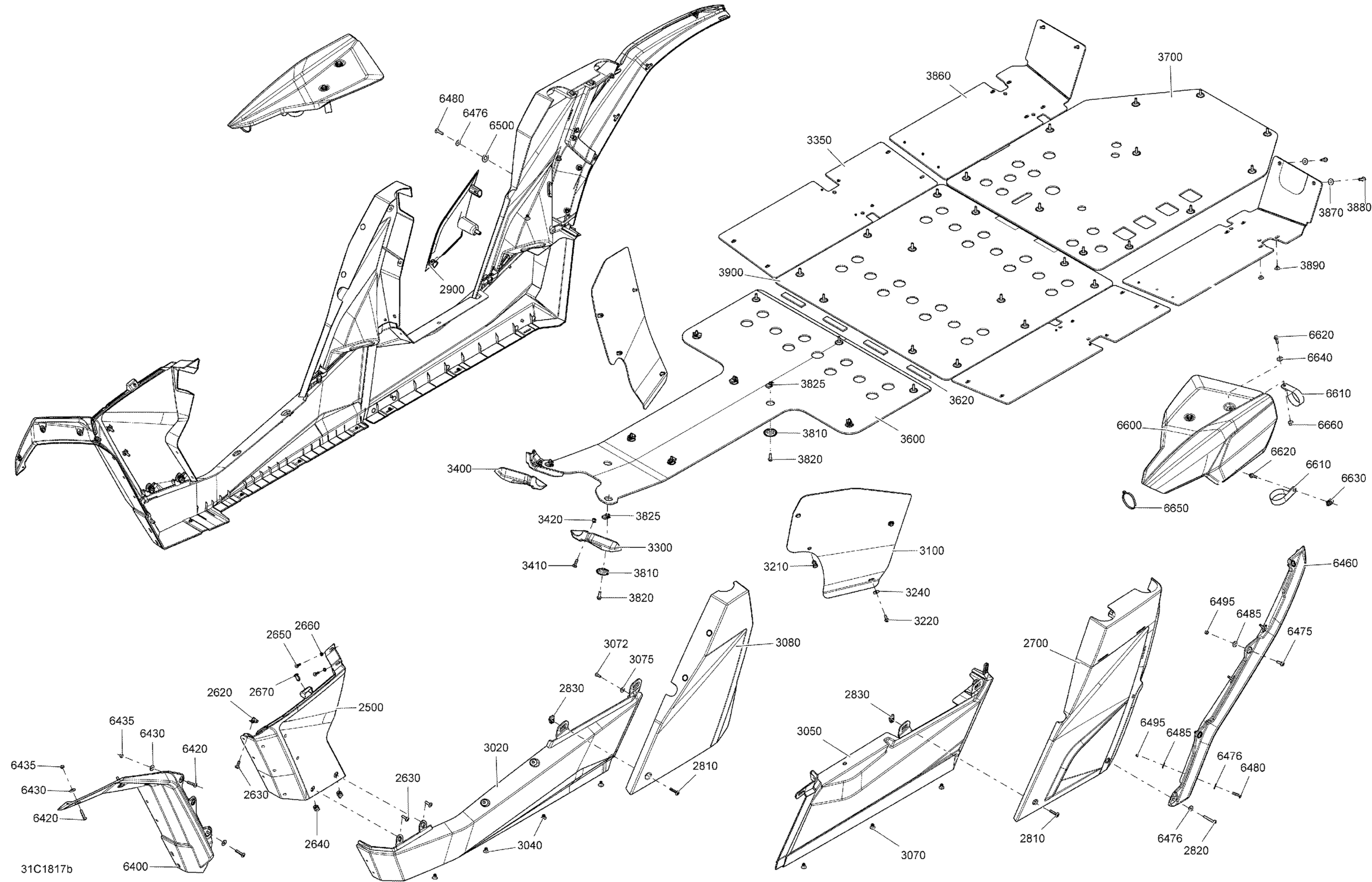

Can-Am Maverick MAX, 2018 Body Central Part Maverick MAX - Package XMR Diagram

#

Description
Price

2500

Painted Sunburst Yellow LH Front Panel | Carbon Black Models

705012077

$334.30

2500

Painted Sunburst Yellow RH Front Panel | Carbon Black Models

705012078

$334.30

2620

Panel Nut M6 X 1.0

250100198

$1.99

2630

Torx Screw M6 X 20

250000722

$1.54

2640

Panel Nut M6 X 1.0

250100198

$1.99

2650

Torx Screw Truss Head K50X20 T20

250000760

$2.00

2660

Flat Washer M5

234051410

$0.51

2670

Tuflok Plastic Rivet

293150230

$1.39

2700

Painted Carbon Black Lh Rear Panel | Carbon Black Models

705012083

$479.82

2700

Painted Carbon Black RH Rear Panel

705012089

$479.82

2810

Torx Truss Screw M6 X 30

250000843

$2.00

2820

Torx Screw M6 X 45

250000748

$1.79

2830

Panel Nut M6 X 1.0

250100198

$1.99

2900

Painted Carbon Black Panel Cover

705012090

$87.28

3020

Black, LH Lower Panel | Model-DPS

705005423

$56.69

3020

Black, RH Lower Panel | Model-DPS

705005424

$55.94

3040

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3050

Black, LH Rear Lower Panel

705005425

$98.48

3050

Black, RH Rear Lower Panel

705005426

$103.70

3070

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3072

Torx Screw K50 X 16

250000720

$1.60

3075

Washer M5

250200025

$0.70

3080

Painted Carbon Black Lh Center Panel

705012091

$334.30

3080

Painted Carbon Black Rh Center Panel

705012092

$334.30

3100

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

3210

Tuflok Plastic Rivet

293150230

$1.39

3220

Hex. Flange Screw M6 X 16

210261650

$1.40

3240

Stainless Steel Flat Washer

234062670

$2.00

3300

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

3350

Side Protector Plate

705008421

$48.48

3400

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

$13.87

3410

Torx Screw M6 X 20

250000712

$2.00

3420

Hex. Flange Elastic Nut M6

233261494

$1.45

3600

Front Skid Plate

705005798

$88.03

3620

Pad

291001932

$9.84

3700

Rear Skid Plate

705005480

$80.57

3810

Cup | Package Hunter

705007171

$6.00

3820

Hexagonal Head Screw

210262050

$2.00

3825

Panel Nut M6 X 1.0

250100198

$1.99

3860

RH Lateral Skid Plate

705007038

$59.67

3870

Flat Washer

250200097

$2.00

3880

Hexagonal Head Screw

210262050

$2.00

3890

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3900

Skid Plate

705009447

$109.67

6400

LH Front Deflector | Model-Red

705008988

$48.48

6400

RH Front Deflector | Model-Red

705008989

$48.48

6420

Stainless, Torx Screw M6 X 30

250000842

$2.00

6430

Stainless Steel Flat Washer

234062670

$2.00

6435

Elastic Stop Nut M6

232561434

$1.78

6460

LH Rear Deflector | Model-Red

705007637

$49.97

6460

RH Rear Deflector | Model-Red

705007638

$49.97

6475

Torx Screw M6 X 20

250000712

$2.00

6476

Stainless Steel Flat Washer

234062670

$2.00

6480

Torx Screw M6 X 25

250000758

$2.00

6485

Stainless Steel Flat Washer

234062670

$2.00

6495

Elastic Stop Nut M6

232561434

$1.78

6500

Hardened Washer

706200281

$2.69

6600

Painted Carbon Black LH Cage Cover

705012094

$492.51

6600

Painted Carbon Black RH Cage Cover

705012095

$492.51

6610

"P" Bracket, 2" Dia.

705005626

$24.60

6620

Hex. Flange Screw M6 X 20

207662054

$0.96

6630

Panel Nut M6 X 1.0

250100198

$1.99

6640

Stainless Steel Flat Washer

234062670

$2.00

6650

Tie Wrap 368 mm

293750008

$0.97

6660

Hex. Flange Elastic Nut M6

233261494

$1.45
