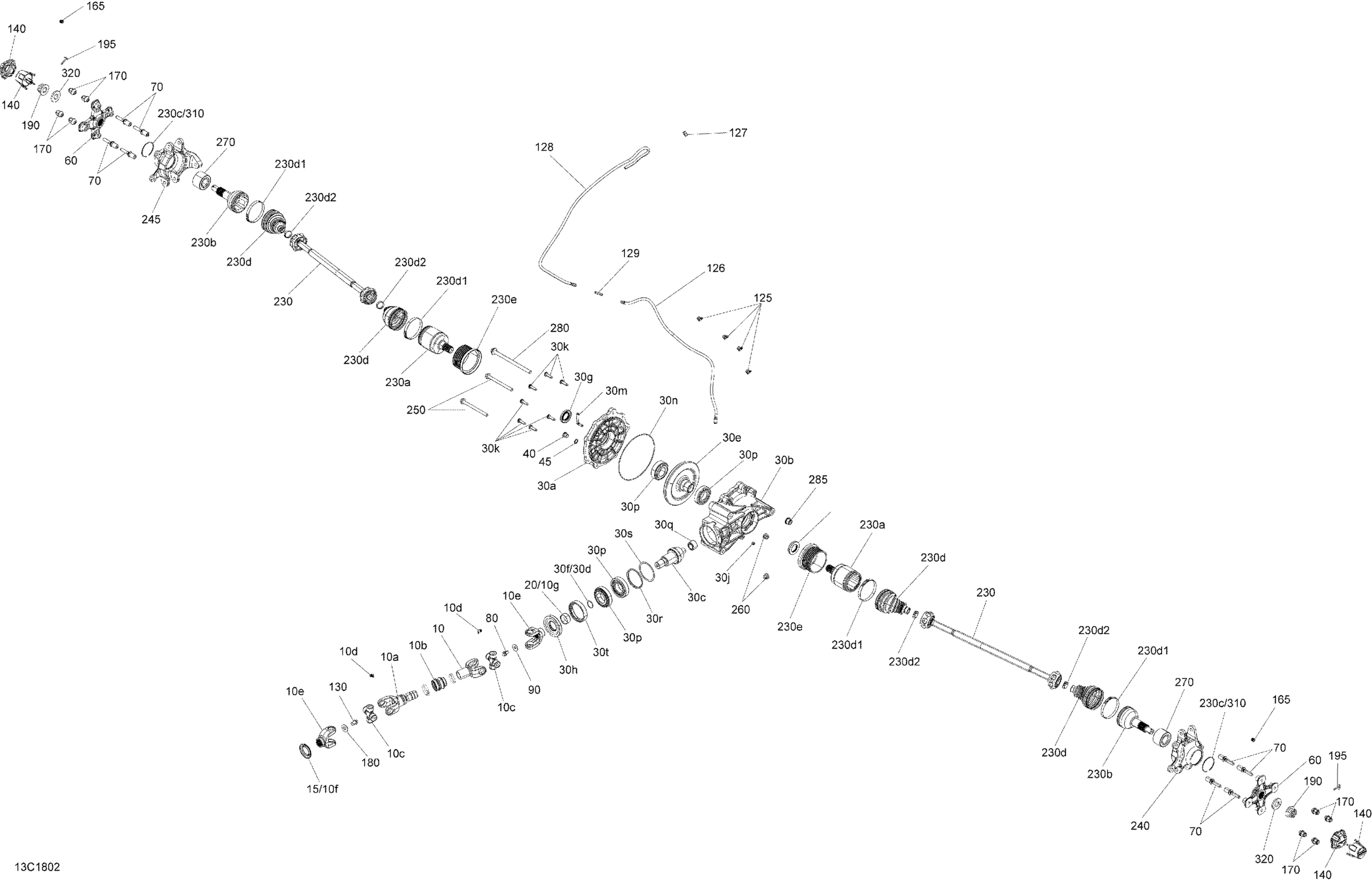

Can-Am Maverick MAX, 2018 Rear Drive Maverick Diagram

#

Description
Price

10>10g

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

10a

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

10b

Rubber Boot

715900118

$13.83

10c

Universal Joint Ass'y | T3

703500846

$78.43

10d

Grease Fitting | T3

715900295

$4.62

10e

Joint | T3

715900436

$23.05

10f

Protector

705501123

$7.37

10g

Wear Ring | 4X4

705400036

$25.35

15

Protector

705501123

$7.37

20

Not Available As Spare Part - Friction Washer

Unavailable

30>30t

Final Drive Unit | Includes 30 to 30m

705502275

$1,324.99

30a

REAR COVER - Call your local BRP dealership

705502171

Unavailable

30b

PINION COVER - Call your local BRP dealership

705502172

Unavailable

30c

Pinion Kit

703500867

$406.12

30d

O-Ring

705501554

$4.62

30e

Gear Kit

703500868

$406.12

30f

O-Ring

705501554

$4.62

30g

Oil Seal

705501556

$17.66

30h

Oil Seal

705502276

$14.75

30j

Plug Drain

705501724

$5.98

30k

Screw

705502063

$3.08

30m

Breather Tube

705501584

$13.86

30n

Oil Seal

705501749

$8.45

30p

Needle Bearing

703500840

$59.97

30q

Needle Bearing

703500840

$59.97

30r

Differential Shim Kit

703500839

$50.74

30s

Differential Shim Kit

703500839

$50.74

30t

NUT - Call your local BRP dealership

705501740

Unavailable

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

60

Wheel Hub ( 29 Splines )

705502223

$129.20

70

Wheel Stud

250300060

$9.58

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

125

Dart Tie Rap 200MM

710003168

$5.72

126

Was 293830177 Hose

219704388

$11.06

127

Clip

414227300

$1.45

128

Polyurethane Hose 10000Mm Long

219704410

$46.12

129

Straight Fitting

293710039

$7.37

130

Hex Flange Screw M12 X 16

250001039

$1.74

140

Wheel Cap

705400928

$11.06

140

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

165

Valve Cap

293000110

$1.18

170

Black, Wheel Nut M10 X 1.25

250100184

$2.48

180

Conical Spring Washer M12

250200005

$2.65

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230>230e

CV Joint

705502414

$261.24

230>230e

CV Joint

705502414

$261.24

230>230e

CV Joint | Package XC -XXC

705502415

$232.74

230>230e

CV Joint | Package XC -XXC

705502415

$232.74

230>230e

CV Joint | Package XC -XXC

705502415

$232.74

230a

Plunging Joint | Except Package XDS, XDS STD

715900432

$249.20

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

240

LH Rear Knuckle

705501730

$184.58

245

RH Rear Knuckle

705501731

$193.82

250

Hex. Flange Screw M10 X 125

230602546

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

280

Hex. Flange Screw M12 X 190

230629087

Unavailable

285

Elastic Flange Nut M12

233221416

$2.33

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
