Partiron

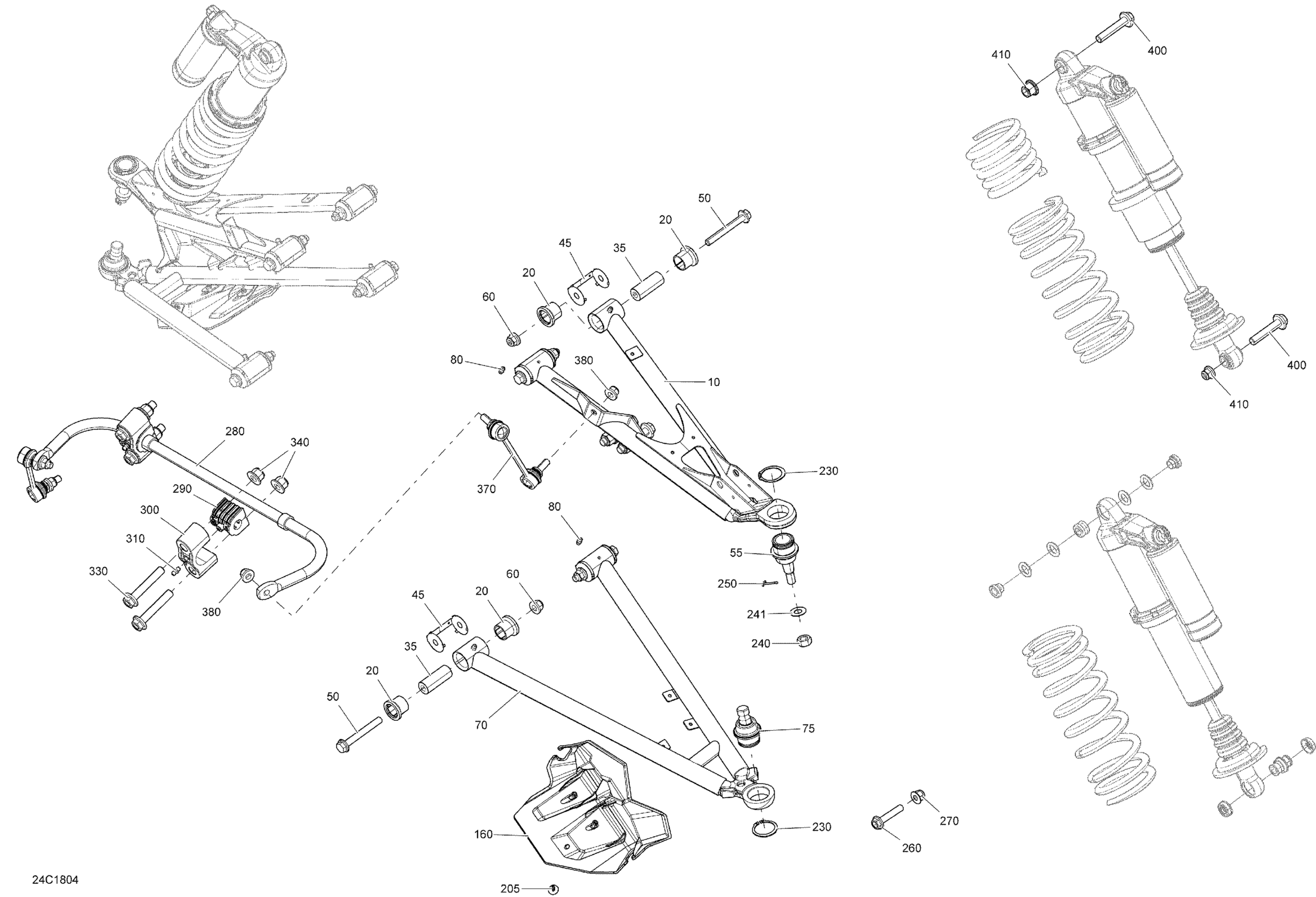

Can-Am Maverick MAX, 2018 Front Suspension Maverick Diagram

#

Description
Price

10

SUSPENSION ARM FL ECOAT - Call your local BRP dealership | Package XC, XC DPS

706202567

Unavailable

10

Front Suspension Arm LH Gulfstream Blue | Package XXC

706202590

Unavailable

10

Black, LH Front Upper Arm | Package DPS

706202563

$193.82

10

Black, LH Front Upper Arm | Package DPS

706202563

$193.82

10

Black, LH Front Upper Arm | Package DPS

706202563

$193.82

10

Black, LH Front Upper Arm | Package DPS

706202563

$193.82

10

SUSPENSION ARM FL B-101 RED - Call your local BRP dealership | Package XXC Can-Am Red Models

706203035

Unavailable

10

SUSPENSION ARM FR ECOAT - Call your local BRP dealership | Package XC, XC DPS

706202568

Unavailable

10

SUSPENSION ARM FR B-352 GULFSTREAM BLUE - Call your local BRP dealership | Package XXC

706202591

Unavailable

10

Black, RH Front Upper Arm | Package DPS

706202564

$193.82

10

Black, RH Front Upper Arm | Package DPS

706202564

$193.82

10

Black, RH Front Upper Arm | Package DPS

706202564

$193.82

10

Black, RH Front Upper Arm | Package DPS

706202564

$193.82

10

SUSPENSION ARM FR B-101 RED - Call your local BRP dealership | Package XXC Can-Am Red Models

706203036

Unavailable

20

Suspension Arm Bushing

706204409

$8.29

35

Sleeve

706201590

$11.06

45

Wear Plate

706201660

$0.89

50

Hex Flange Screw M10 X 80

207608046

$4.46

55

Ball Joint

706202044

$35.14

60

Hex. Flange Elastic Nut M10

233201436

$1.74

70

RH Front Lower Arm

706201727

$184.58

70

RH Front Lower Arm

706201727

$184.58

70

RH Front Lower Arm

706201862

$193.82

70

RH Yellow Sun. Front Lower Arm | Package XMR Carbon Black Models

706202967

$193.82

70

RH Yellow Sun. Front Lower Arm | Package XMR Carbon Black Models

706202967

$193.82

70

LH Front Lower Arm

706201726

$184.58

70

LH Front Lower Arm

706201726

$184.58

70

LH Front Lower Arm

706201861

$193.82

70

LH YELLOW SUN. FRONT LOWER ARM - Call your local BRP dealership | Package XMR Carbon Black Models

706202966

Unavailable

70

LH YELLOW SUN. FRONT LOWER ARM - Call your local BRP dealership | Package XMR Carbon Black Models

706202966

Unavailable

75

Ball Joint

706202045

$35.35

80

Grease Fitting

408200700

$2.80

160

RH Joint Protector

706202809

$9.29

160

LH Joint Protector

706202808

$9.29

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

260

Hex. Flange Screw M10 X 50

207605044

$4.39

270

Hex. Flange Elastic Nut M10

233201414

$1.26

280

Stabilizer Bar Ass'y | Except Europe

706202687

$96.89

290

Stabilizer Bar Bushing | Except Europe

706204802

$11.98

300

Clamp

706002303

$16.89

310

Grease Fitting

408200700

$2.80

330

Hex. Flange Screw M12 X 70

250000858

$3.11

340

Elastic Flange Nut M12

233221416

$2.33

370

RH Stabilizer Bar Link | Except Europe

706202538

$69.20

370

LH Stabilizer Bar Link | Except Europe

706202539

$69.20

380

Hex. Flange Elastic Nut M10

233201436

$1.74

400

Hex. Flange Screw M12 X 60

207626046

$6.08

410

Elastic Flange Nut M12

233221416

$2.33
