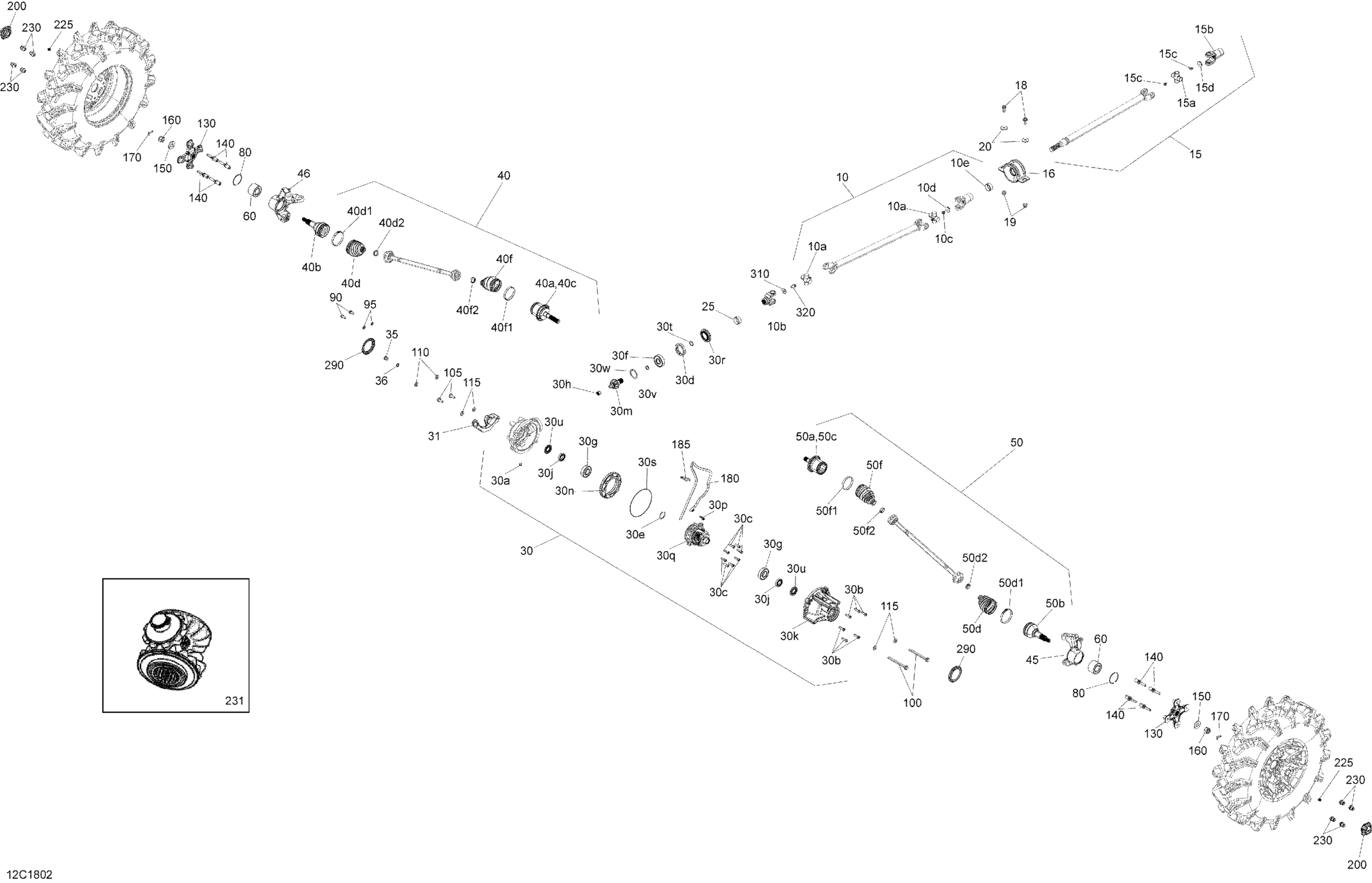

Can-Am Maverick MAX, 2018 Front Drive - Maverick Diagram

#

Description
Price

10>10b

Drive Shaft Assembly

705402068

$230.74

10a

U-Joint Cross Kit | Engine 450

715900435

$78.43

10b

Yoke Joint | Cover 715900483

715900231

$27.66

10c

Grease Fitting

703500815

$4.62

10d

Cover

715900483

$10.99

10e

Wear Ring | 4X4

705400036

$25.35

15>15d

Drive Axle Ass'y | Model-COM-MAX

705402041

$401.51

15a

U-Joint Cross Kit | Engine 450

715900435

$78.43

15b

Yoke Joint | Cover 715900483

715900231

$27.66

15c

Grease Fitting

703500815

$4.62

15d

Cover

715900483

$10.99

16

Ball Bearing | Model-COM-MAX

705401646

$59.37

18

Hex. Flange Screw M10 X 25

207602544

$1.33

19

Hex. Flange Elastic Nut M10

233201414

$1.26

20

Washer

503032900

$3.20

25

Not Available As Spare Part - Friction Washer

Unavailable

30>30w

Front Differential | Includes 8 to 31

703500907

$1,476.89

30>30w

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30>30w

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30>30w

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30>30w

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30a

Drain Plug | After May 30, 2014

705501885

$12.68

30b

Screw | 4X4

705401601

$9.29

30c

Screw | After May 30, 2014

705401602

$6.45

30d

Nut | 4X4

705401603

$36.89

30e

Shim | 4X4

705401604

$55.35

30f

Ball Bearing | After May 30, 2014

705401605

$30.74

30g

Ball Bearing | 4X4

705401606

$49.20

30h

Ball Bearing | After May 30, 2014

705402848

$46.12

30j

Ball Bearing | After May 30, 2014

705401608

$49.20

30k

Front Cover | After May 30, 2014

705401610

$143.05

30m

Pinion 10 Teeth | After May 30, 2014

705402841

$207.66

30n

Gear 36 Teeth | After May 30, 2014

705401612

$383.05

30p

Vent Valve | After May 30, 2014

705401613

$14.37

30q

Differential | Package-STD

705402184

$999.99

30q

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

30q

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

30q

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

30q

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

30r

Oil Seal | After May 30, 2014

705401615

$18.43

30s

Seal | After May 30, 2014

705401616

$13.83

30t

O'Ring | After May 30, 2014

705401617

$7.37

30u

Gasket | 4X4

705401618

$17.66

30v

Shim

705401769

$6.75

30w

Shim

705401770

$6.45

31

SUPPORT - Call your local BRP dealership

705401600

Unavailable

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40>40f2

RH CV Joint

705401874

$232.74

40>40f2

RH CV Joint | Model-XXC

705401876

$233.82

40>40f2

RH CV Joint | Model-XXC

705401876

$233.82

40>40f2

RH CV Joint | Model-XXC

705401876

$233.82

40>40f2

RH CV Joint | XMR

705401878

$263.82

40a

RH Plunging CV Joint

715900395

$249.20

40a

RH Plunging CV Joint

715900395

$249.20

40b

CV Joint

715900428

Unavailable

40b

CV Joint

715900428

Unavailable

40c

Circlip Joint | Not shown

705401349

$5.38

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401354

$41.51

40d

Boot Kit, Wheel Side

705401354

$41.51

40d1

Oetiker Clamp, Large

715900260

$7.84

40d1

Oetiker Clamp, Large

715900260

$7.84

40d2

Oetiker Clamp, Small

715900261

$4.39

40d2

Oetiker Clamp, Small

715900261

$4.39

40f

Boot Kit, Differential Side

705401346

$41.51

40f

Boot Kit, Différential Side

705401355

$41.51

40f1

Oetiker Clamp, Large

715900284

$4.39

40f1

Oetiker Clamp, Small

715900261

$4.39

40f2

Oetiker Clamp, Small

715900261

$4.39

40f2

Oetiker Clamp, Large

715900262

$7.84

45

LH Front Knuckle

705401548

$129.20

46

RH Front Knuckle

705401549

$106.12

50>50f2

LH CV Joint

705401873

$232.74

50>50f2

LH CV Joint | Model-XXC

705401875

$233.82

50>50f2

LH CV Joint | Model-XXC

705401875

$233.82

50>50f2

LH CV Joint | Model-XXC

705401875

$233.82

50>50f2

LH CV Joint | XMR

705401877

$263.82

50a

LH Plunging Joint

715900430

$249.20

50a

LH Plunging CV Joint

715900396

$249.20

50b

CV Joint

715900427

$253.82

50b

CV Joint

715900428

Unavailable

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50d

Boot Kit, Wheel Side

705401354

$41.51

50d1

Oetiker Clamp

715900282

$4.39

50d1

Oetiker Clamp, Large

715900260

$7.84

50d2

Oetiker Clamp, Small

715900283

$4.39

50d2

Oetiker Clamp, Small

715900261

$4.39

50f

Boot Kit, Differential Side

705401346

$41.51

50f

Boot Kit, Différential Side

705401355

$41.51

50f1

Oetiker Clamp, Large

715900284

$4.39

50f1

Oetiker Clamp, Small

715900261

$4.39

50f2

Oetiker Clamp, Small

715900261

$4.39

50f2

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

95

Conical Spring Washer M8

234281474

$1.25

100

Hex. Flange Screw M10 X 125

230602546

$6.08

105

Hex. Flange Screw M10 X 25

207602546

$1.74

110

Flat Washer M10 | 4X4

250200014

$1.17

115

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705501900

$129.20

140

Wheel Stud

250300060

$9.58

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400071

$1.74

180

Polyurethane Hose 10000Mm Long

219704410

$46.12

185

Tie-Rap 180 mm

414115200

$0.09

200

Wheel Cap

705400928

$11.06

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

225

Valve Cap

293000110

$1.18

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

231

Differential

705402376

$1,258.74

290

Wear Sleeve

705400780

$7.28

310

Flat Washer M10 | 4X4

250200014

$1.17

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61
