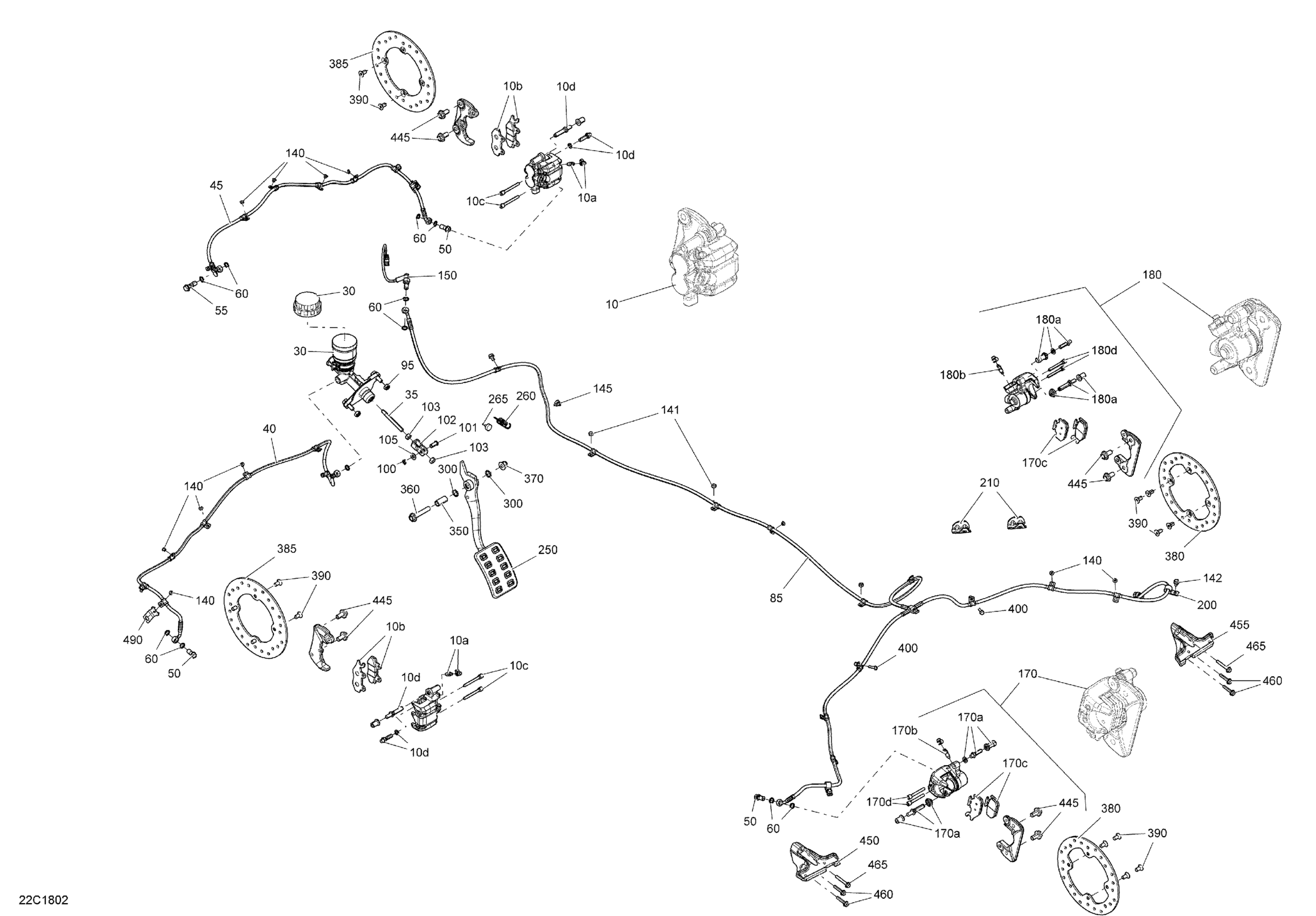

Can-Am Maverick MAX, 2018 Brakes Maverick MAX Diagram

#

Description
Price

10>10d

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

10>10d

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

10a

Bleeding Screw

705600080

$16.87

10b

RH Brake Pad Kit

705601150

$51.99

10b

LH Brake Pad Kit

705601149

$51.99

10c

Hanger Pin Kit

705601151

$17.99

10d

Spring And Bolt Kit

715500385

$21.99

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

35

Master Cylinder Rod

705600833

$20.49

40

LH Front Flexible Hose Ass'y

705601192

$86.99

45

RH Front Flexible Hose Ass'y

705601193

$86.99

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt

705600958

$6.35

60

Copper Washer

705601628

$4.44

85

Rear Flexible Hose Ass'y | Includes 21 to 22

705601119

$163.99

95

Hex. Elastic Stop Nut M8

232581414

$0.56

100

Cotter Pin

371800700

$1.01

101

Pin | Not Shown

250400058

$8.29

102

Yoke | Not Shown

705601142

$15.36

103

Hex. Nut M8

232081414

$0.72

105

Flat Washer M8

234081430

$2.11

140

Pop Rivet 3/16"

390402200

$0.35

141

Elastic Stop Nut M6

232561414

$0.55

142

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

170>170d

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

170a

Spring, Protector And Bolt Kit

715500384

$24.99

170b

Bleeding Screw

705600080

$16.87

170c

LH Brake Pad Kit

705600398

$51.99

170d

Pin Set (2)

705600081

$20.49

180>180d

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

180a

Spring, Protector And Bolt Kit

715500384

$24.99

180b

Bleeding Screw

705600080

$16.87

180c

RH Brake Pad Kit

705601147

$51.99

180d

Pin Set (2)

705600081

$20.49

200

Open Clamp

518321570

$7.69

250

Brake Pedal

705600724

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

300

O-Ring

293300144

$3.82

350

Inner Spacer

705600815

$11.60

360

Hex. Flange Screw M10 X 55

207605544

$3.38

370

Hex. Flange Elastic Nut M10

233201414

$1.58

380

Disc Brake

705600999

$67.99

385

Disc Brake

705601178

$51.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Hex. Forming Screw M5 X 16

210251650

$1.15

445

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

450

LH DEFLECTOR - Call your local BRP dealership

705601403

$13.99

455

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

460

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

465

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

490

Bracket

705601337

$2.69
