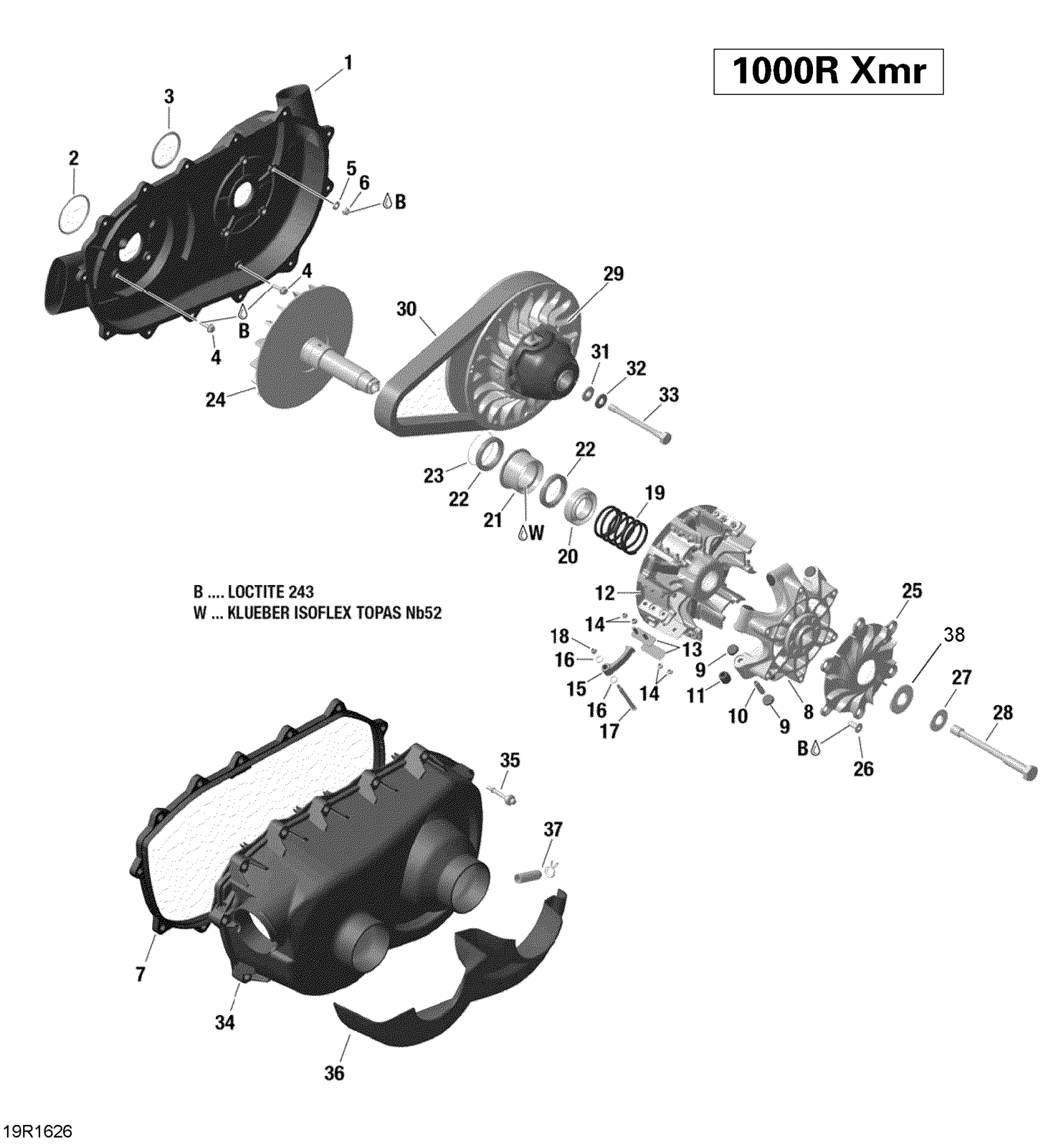

Can-Am Maverick MAX, 2018 Transmission - XMR Diagram

#

Description
Price

1

CVT Air Guide

420612304

$172.36

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.87

5

Flat Washer

224061121

$0.51

6

Elastic Stop Nut M6

232561434

$1.78

7

Gasket

420430126

$38.78

8

Governor Cup Ass'y

420280663

$170.12

9

Slider Shoe Set

420281296

$41.01

10

Roller Axle

417223257

$6.37

11

Roller

420229999

$13.42

12-14

Outher Haft Ass'y | Includes 12 to 14

420280462

$429.82

13

Slide Plate

420651763

$5.36

14

Elastic Stop Nut M5

232551414

$0.82

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248608

$177.17

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$36.34

20

Seat Spring

420627578

$32.81

21

Drive Pulley Clutch

420257191

$135.79

22

Ball Bearing

420632377

$46.24

23

Retaining Ring

420245951

$5.39

24

Inner Half

420280577

$308.93

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Clutch Bolt Repair Kit

703500842

$68.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

V Belt

422280367

$191.76

31

-Thrust Washer

420427770

$23.85

32

Spring Washer

420445441

$1.01

33

Hex. Screw M10 X 110

420441485

$11.37

34

Variator Cover | Includes 38

420212282

Unavailable

35

Hex Screw M6 X 30

420440568

$8.15

36

Heat Protection Mat

715900358

$46.24

37

Drain Plug Kit

707001179

$8.93

38

Spring Washer

420282826

$55.19
